In magazzinoNuovo
Kit di montaggio a rack da 19 pollici per VT104 - DMT 101223
Codice 101223
Prezzo per 1 unità
30,73 € (IVA inclusa)
25,19 € + IVA
Quantità
Caricamento…
SKU BLM-CONVNTRM/OB/IPVEAN 9338716003901
Prezzo per 1 unità
604,39 €
495,41 € + IVA
Converte il video in IP per la distribuzione su rete Ethernet esistente, o il video IP in SDI. Dotato di 12G-SDI e codec TICO a bassa latenza: HD su Gigabit Ethernet integrata, Ultra HD su 10G Ethernet con SFP 10G opzionale.
| 2K video standards | 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI |
|---|---|
| 4K video standards | 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI |
| Configuration | Ethernet or USB 2.0 for firmware updates and IP address setting |
| Control | built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons |

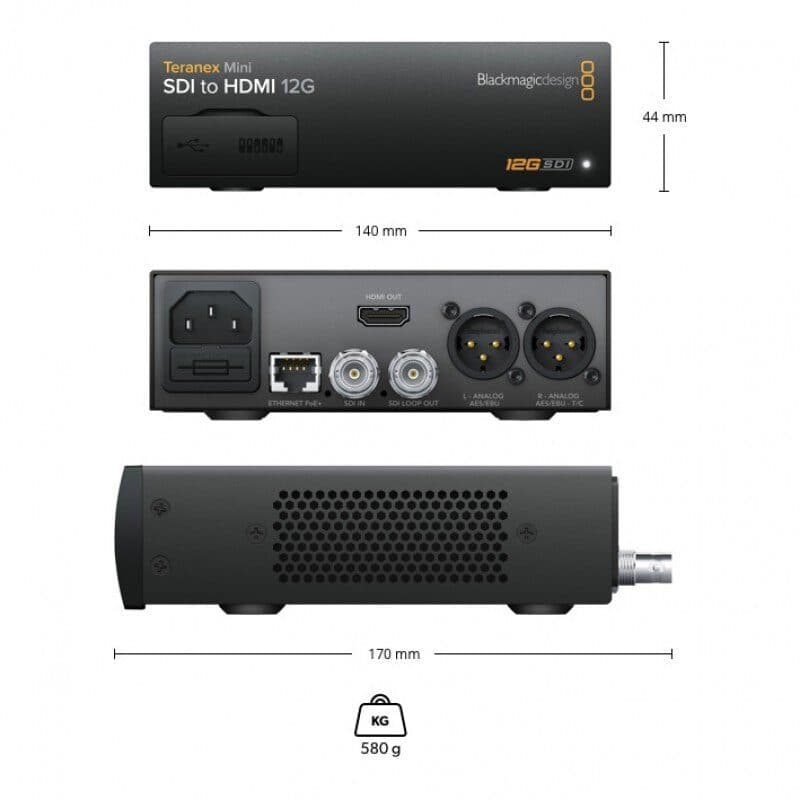

| Dimensions | 14 x 4.4 x 17 cm |
| Ethernet | gigabit Ehernet supports 3G-SDI up to 1080p 60 using TICO encoding / decoding. Optional 10G optical data Ethernet supporting Ultra HD up to 2160p 60 using TICO encoding / decoding |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30 |
| Internal software upgrade | via included updater application |
| Multi rate support | auto detection of HD-SDI, 6G-SDI or 12G‑SDI |
| Operating temperature | 0 to 40 °C |
| PoE | can be powered via 48 V DC using PoE+ (Power over Ethernet) |
| Power consumption | 16 W |
| Power fail protection | settings preserved and restored instantly at power on |
| Power supply | IEC power cable required. 100 - 240 V AC input |
| Reclocking | on all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video |
| Relative humidity | 0 to 90% non-condensing |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24‑bit |
| SDI auto switching | automatically selects between HD-SDI, 6G-SDI and 12G‑SDI |
| SDI color precision | 10-bit 4:2:2 and 4:4:4 |
| SDI color space | YUV or RGB for inputs, YUV for SDI outputs |
Codice 101223
Prezzo per 1 unità
30,73 € (IVA inclusa)
25,19 € + IVA
Quantità
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, ITU‑R BT.656 and ITU‑R BT.601 |
|---|
| SDI metadata support | video payload identification ancillary data as per SMPTE 352M |
|---|
| SDI video inputs | 1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI |
|---|
| SDI video outputs | 2 x 10-bit HD-SDI, 6G-SDI and 12G‑SDI |
|---|
| SDI video rates | SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G‑SDI |
|---|
| SDI video sampling | 4:2:2 plus 4:4:4 up to 4K DCI 30p |
|---|
| Software control | Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac |
|---|
| Storage temperature | -20 to 60 °C |
|---|
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60 |
|---|
| Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet |
|---|
| Weight | 580 g |
|---|
