BLACKMAGIC DESIGN

Convertitore SDI to HDMI 8K HDR Teranex Mini - Blackmagic Design BLM-CONVN8TRM/AA/SDI

Name: Convertitore SDI to HDMI 8K HDR Teranex Mini - Blackmagic Design BLM-CONVN8TRM/AA/SDI
Brand: BLACKMAGIC DESIGN
SKU: BLM-CONVN8TRM/AA/SDI
Price: 1491.01 EUR
Availability: OutOfStock

Non disponibileNuovo

SKU BLM-CONVN8TRM/AA/SDIEAN 9338716006179

Prezzo per 1 unità

1491,01 €

1222,14 € + IVA

Teranex Mini SDI to HDMI 8K HDR converte sorgenti SDI in HDMI in HD, Ultra HD e 8K fino a 4320p60. Quattro uscite HDMI 2.0, down converter, HDR, LUT RGB 33 punti 10 bit, scope integrati e calibrazione monitor.

Descrizione

Teranex Mini SDI to HDMI 8K HDR è la soluzione avanzata di monitoraggio HDMI 8K che permette di convertire sorgenti SDI in HDMI in tutti i formati HD, Ultra HD e 8K fino a 4320p 60. Dispone di quattro connessioni HDMI 2.0 di uscita, down converter incorporato, supporta formati HDR, LUT RGB a 33 punti a 10 bit, waveform, parade, vector scope e istogramma incorporati, sonda di calibrazione del monitor e molto altro.

Specifiche tecniche

Aggiornamenti e configurazione	front USB-C or Ethernet
Aggiornamento software interno	via included updater application
Alimentazione	1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input
Campionamento audio SDI	Television standard sample rate of 48 kHz and 24‑bit
Campionamento video SDI	4:2:2 and 4:4:4
Conformità SDI	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
Consumo energetico	25 W
Controllo impostazioni	6 buttons and spin knob for menu and settings control, 2.2" color LCD display
Controllo software	Mac OS X and Windows software upgrade via USB-C or Ethernet

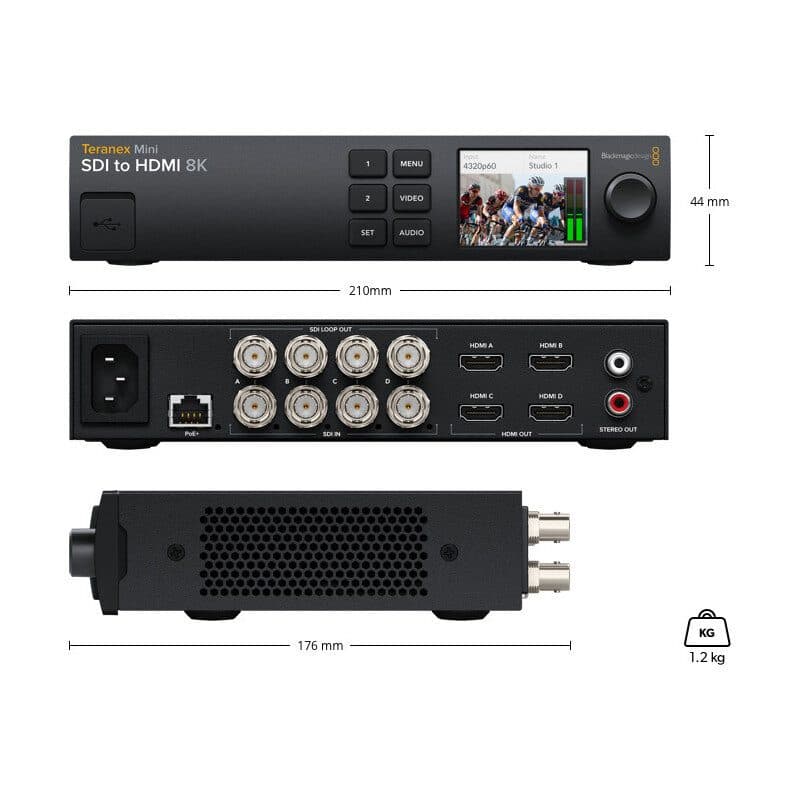

Dimensioni	21 x 4.4 x 17.6 cm
Frequenze video SDI	SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
Ingressi video SDI	4 x 12G-SDI HD / 2K / 4K / 8K auto switching. Dual and quad link 12G-SDI for 8K only
Intervallo di tensione operativa	100 to 240 V AC
Modalità di visualizzazione	two by scopes with picture overlay with opacity control; waveform and parade with standard and HDR graticules
Peso	1.2 kg
Precisione del colore HDMI	YUV 4:2:2 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test
Precisione del colore SDI	4:2:2 and 4:4:4
Reclocking	yes
Scope	waveform, RGB/YUV parade, vector, histogram
Spazio colore HDMI	REC 709, REC 2020
Spazio colore SDI	YUV and RGB
Standard video 2K	2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
Standard video 4K DCI	4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI
Standard video 8K	4320p 23.98, 4320p 24, 4320p 25, 4320p 29.97, 4320p 30, 4320p 50, 4320p 59.94, 4320p 60. Auto switching between 2SI and Square Division
Standard video 8K DCI	8Kp 23.98 DCI, 8Kp 24 DCI, 8Kp 25 DCI, 8Kp 29.97 DCI, 8Kp 30 DCI, 8Kp 47.95 DCI, 8Kp 48 DCI, 8Kp 50 DCI, 8Kp 59.94 DCI, 8Kp 60 DCI. Auto switching between 2SI and Square Division
Standard video HD	720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
Standard video SD	none
Standard video Ultra HD	2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
Supporto audio incorporato	16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMI outputs
Supporto multi velocità	1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI
Temperatura di esercizio	0 to 40 °C
Temperatura di stoccaggio	-20 to 60 °C
Umidità relativa	0 to 90% non-condensing
Uscite audio analogiche	2 channels analog audio via RCA connectors
Uscite video HDMI	4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p 60 in Quad Link
Uscite video SDI	4 x 12G-SDI loop output
