Name: Convertitore SDI to DisplayPort 8K HDR Teranex Mini - Blackmagic Design BLM-CONVN8TRM/AA/SD1
Brand: BLACKMAGIC DESIGN
SKU: BLM-CONVN8TRM/AA/SD1
Price: 1609.72 EUR
Availability: OutOfStock

Convertitore SDI to DisplayPort 8K HDR Teranex Mini - Blackmagic Design BLM-CONVN8TRM/AA/SD1

Non disponibileNuovo

SKU BLM-CONVN8TRM/AA/SD1EAN 9338716006452

Prezzo per 1 unità

1609,72 €

1319,45 € + IVA

Teranex Mini SDI to DisplayPort 8K HDR converte sorgenti SDI in DisplayPort in HD, Ultra HD e 8K fino a 4320p60. Due uscite DisplayPort, down converter, HDR, LUT RGB 33 punti 10 bit e scope integrati.

Descrizione

Teranex Mini SDI to DisplayPort 8K HDR è la soluzione avanzata di monitoraggio 8K DP che permette di convertire le sorgenti SDI in DisplayPort in tutti i formati HD, Ultra HD e 8K fino a 4320p 60. Dispone di due connessioni di uscita DisplayPort, down converter incorporato, gestione formati HDR, LUT RGB a 33 punti a 10 bit, waveform, parade, vector scope e istogramma incorporati, calibrazione del monitor e molto altro.

Specifiche tecniche

2K video standards	2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
4K DCI video standards	4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI
8K DCI video standards	8Kp 23.98 DCI, 8Kp 24 DCI, 8Kp 25 DCI, 8Kp 29.97 DCI, 8Kp 30 DCI, 8Kp 47.95 DCI, 8Kp 48 DCI, 8Kp 50 DCI, 8Kp 59.94 DCI, 8Kp 60 DCI. Auto switching between 2SI and Square Division.
8K video standards	4320p 23.98, 4320p 24, 4320p 25, 4320p 29.97, 4320p 30, 4320p 50, 4320p 59.94, 4320p 60. Auto switching between 2SI and Square Division.
Analog audio outputs	2 channels analog audio via RCA connectors
Conversion	output can be set to SDR, HLG or PQ

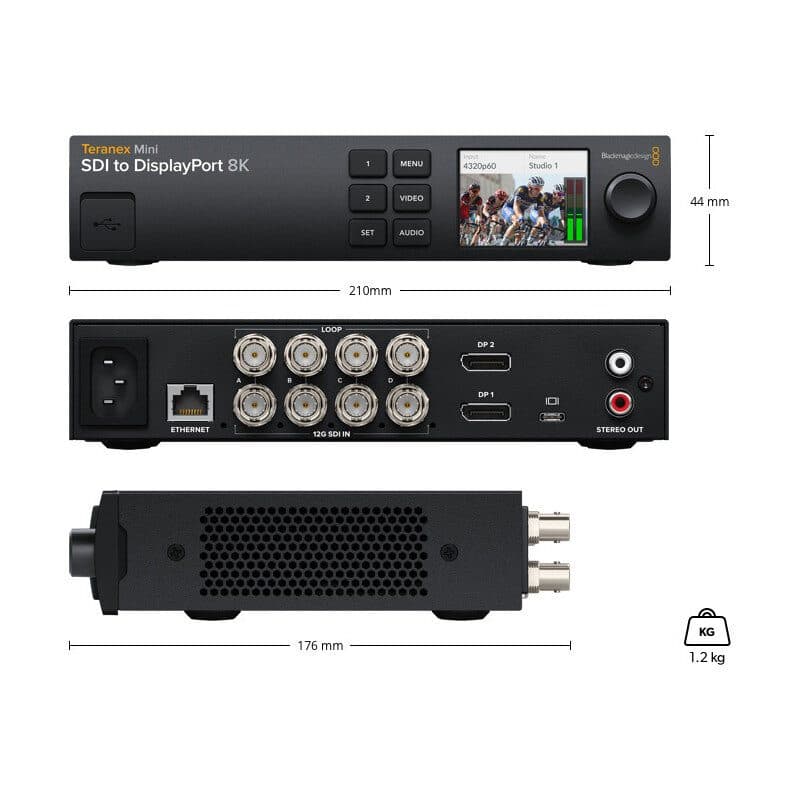

Dimensions	21 x 4.4 x 17.6 cm
Embedded audio support	16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs
HD video standards	720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
Internal software upgrade	via included updater application
Multi rate support	1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI
Operating temperature	0 to 40 °C
Operational voltage range	100 to 240 V AC
Power consumption	35 W
Power supply	1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input
Reclocking	yes
Relative humidity	0 to 90% non-condensing
Scopes	waveform, RGB/YUV parade, vector, histogram
