Monitor video rack dual 2x7" SDI HDMI DVI VM Dual - PIXELHUE PIX-M09070002
Codice PIX-M09070002
Prezzo per 1 unità
972,30 € (IVA inclusa)
796,96 € + IVA
Quantità

SKU BLM-HDL-MULTIP6G/04EAN 9338716003888
Prezzo per 1 unità
652,27 €
534,65 € + IVA
Multiviewer con 4 ingressi 6G-SDI risincronizzati per monitorare combinazioni SD, HD e Ultra HD su un unico display, con uscita 1080 HD o 2160p Ultra HD. Overlay con meter audio ed etichette personalizzabili su ogni vista.
| 2K video standards | 2Kp / PsF 23.98 / 24 / 25 DCI |
|---|---|
| 4K video standards | 4Kp 24 DCI |
| Audio meters | each view, VU standard |
| Built-in control panel | none |
| Configuration | RJ45 ethernet or USB 2.0 for firmware updates and IP address setting |

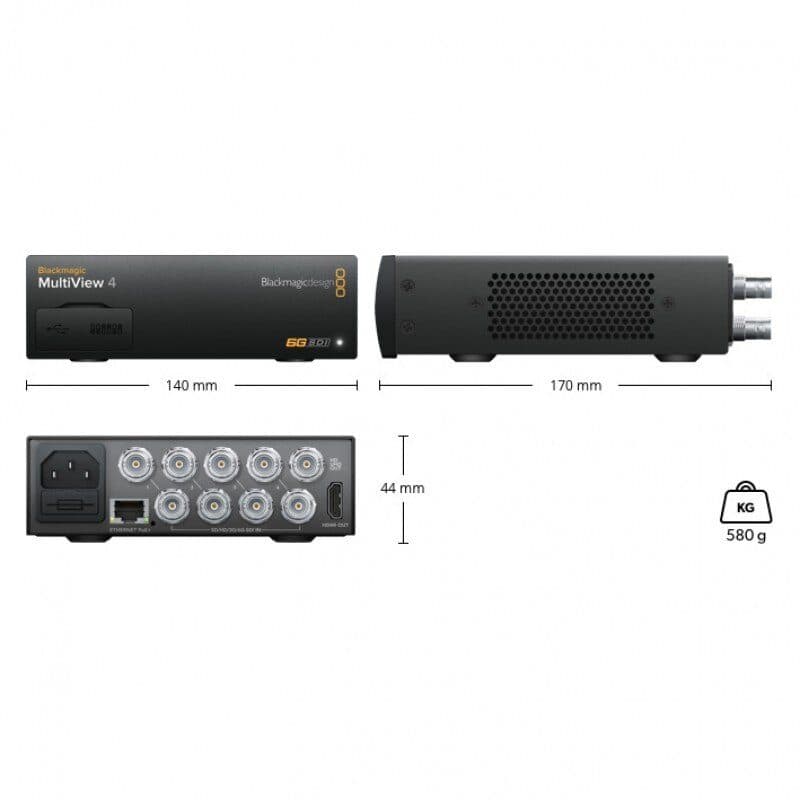

| Dimensions | 14 × 4.4 × 17 cm |
| External control panel | none |
| HD video standards | 720p 50 / 59.94 / 60, 1080i 50 / 59.94/60, 1080p 23.98 - 60, 1080PsF 23.98 - 30 |
| HDMI video multi view outputs | 1 x HDMI type A connector. Output supports EDID of the monitor |
| Internal software upgrade | via included updater application |
| Multi rate support | auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video |
| Operating systems | macOS 10.15 Catalina or later, Windows 10 64-bit |
| Operating temperature | 0 to 40 °C |
| Power consumption | 16 W |
| Power fail protection | settings preserved and restored at power on |
| Power supply | IEC cable, 100 - 240 V AC input |
| Reference input | none |
| Relative humidity | 0% to 90% non-condensing |
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
| SDI audio sampling | 48 kHz, 24‑bit |
| SDI auto switching | auto selects between SD‑SDI, HD‑SDI, and 6G‑SDI per input |
| SDI color precision | 10-bit 4:2:2 |
| SDI color space | YUV |
| SDI compliance | SMPTE 259M, 292M, 296M, 425M, 425M-B, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI metadata support |
Codice PIX-M09070002
Prezzo per 1 unità
972,30 € (IVA inclusa)
796,96 € + IVA
Quantità
| SMPTE 352M video payload ID |
| SDI rates | 270Mb, 1.5G, 3G, 6G |
|---|
| SDI reclocking | on all SDI outputs, auto switching between SD, HD or 6G‑SDI |
|---|
| SDI video inputs | 4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI |
|---|
| SDI video outputs | 4 loop, 1 HD/Ultra HD |
|---|
| SDI video sampling | 4:2:2 |
|---|
| Software control | MultiView software for Windows and Mac |
|---|
| Storage temperature | -20 to 45 °C |
|---|
| Ultra HD video standards | 2160p 23.98 - 30 |
|---|
| Updates | USB 2.0 high speed (480 Mb/s) or via Ethernet |
|---|
| Weight | 0.92 kg |
|---|
