Attualmente non disponibileNuovo
Monitor video rack dual 2x7" SDI HDMI DVI VM Dual - PIXELHUE PIX-M09070002
Codice PIX-M09070002
Prezzo per 1 unità
972,30 € (IVA inclusa)
796,96 € + IVA
Quantità
Caricamento…
SKU BLM-HDL-MULTIP6G/16EAN 9338716002850
Prezzo per 1 unità
1789,25 €
1466,60 € + IVA
Monitora fino a 16 sorgenti SDI SD, HD o Ultra HD in layout 1, 4, 9 o 16 viste su monitor Ultra HD. Risincronizzazione completa dei fotogrammi su ogni ingresso, con etichette e indicatori livelli audio on-screen.
| 2K video standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
|---|---|
| 4K video standards | 4K DCI 24p |
| Audio meters | each view, VU standard |
| Configuration | via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting |
| Control | built-in control panel with 16 buttons for local control of source routing, 5 buttons and scroll wheel for menu control, 2.2-inch color display |
| Display | built-in 1.5" LCD for menu settings |
| External control panel | includes Blackmagic Videohub software control panel for Mac OS and Windows, supports Blackmagic Smart Control and Blackmagic Master Control hardware panels, includes Blackmagic Videohub SDK and Ethernet videohub control protocol, RS-422 control via RJ9 |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30, 1080i 50, 1080i 59.94, 1080i 60 |
| HDMI video multi view outputs | 1 x HDMI type A connector (supports EDID of the monitor) |
| Internal software upgrade | via included updater application |
| Multi rate support | auto detection of SD, HD, or 6G-SDI; simultaneous viewing of 4K, HD, and SD video |
| Operating systems | Mac 10.15 Catalina, Mac 11.1 Big Sur or later; Windows 10, 64-bit |

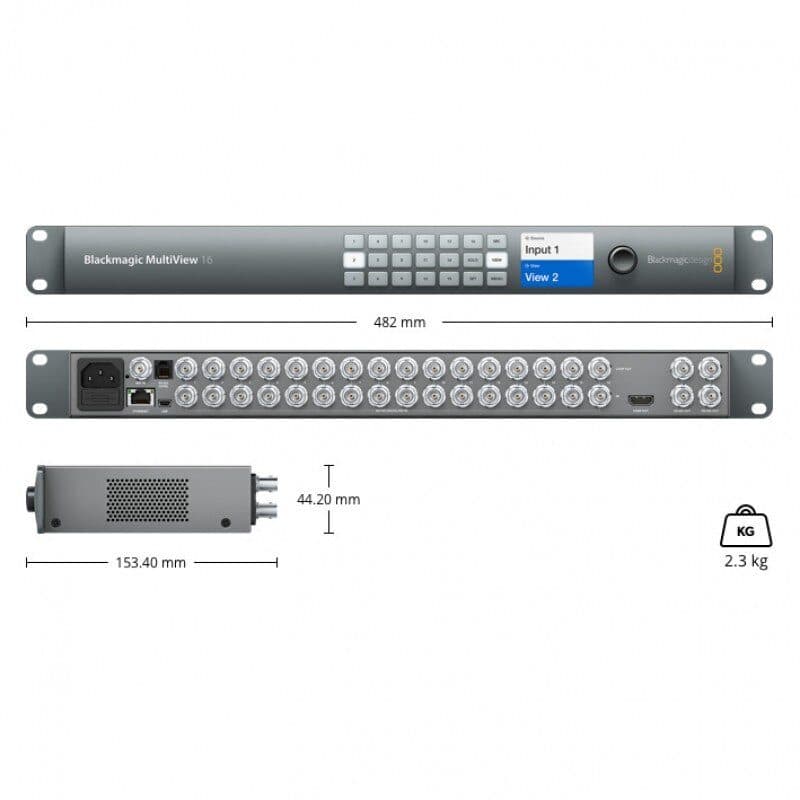

| Physical installation | 1 RU size, less than 6" deep |
| Reference input | Black Burst and Tri-Sync for SD, HD, and 4K |
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
| SDI audio sampling | television standard sample rate of 48 kHz and 24-bit |
| SDI auto switching | Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input |
| SDI color precision | 10-bit 4:2:2 |
Codice PIX-M09070002
Prezzo per 1 unità
972,30 € (IVA inclusa)
796,96 € + IVA
Quantità
| SDI color space |
|---|
| YUV |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU-R BT.656, ITU-R BT.601 |
|---|
| SDI metadata support | video payload identification ancillary data as per SMPTE 352M |
|---|
| SDI rates | 270 Mb, 1.5G, 3G, 6G |
|---|
| SDI reclocking | on all SDI outputs, auto-switching between standard definition, high definition, or 6G-SDI video |
|---|
| SDI video inputs | 16 x 10-bit SD-SDI, HD-SDI, and 6G-SDI |
|---|
| SDI video outputs | 16 x 10-bit SD-SDI, HD-SDI, and 6G-SDI |
|---|
| SDI video sampling | 4:2:2 |
|---|
| Software control | MultiView software included free for Windows and Mac |
|---|
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30 |
|---|
| Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet |
|---|
Codice DTV-2100-0161
Prezzo per 1 unità
3406,27 € (IVA inclusa)
2792,02 € + IVA
Quantità
Codice DTV-2100-0162
Prezzo per 1 unità
3809,98 € (IVA inclusa)
3122,94 € + IVA
Quantità
Codice DTV-2100-0160
Prezzo per 1 unità
3292,52 € (IVA inclusa)
2698,79 € + IVA
Quantità
Codice DTV-2100-0195
Prezzo per 1 unità
2007,36 € (IVA inclusa)
1645,38 € + IVA
Quantità
Codice DTV-2100-0194
Prezzo per 1 unità
2439,57 € (IVA inclusa)
1999,65 € + IVA
Quantità
Codice DTV-2100-0193
Prezzo per 1 unità
1825,39 € (IVA inclusa)
1496,22 € + IVA
Quantità
Codice DTV-2100-0102
Prezzo per 1 unità
1222,62 € (IVA inclusa)
1002,15 € + IVA
Quantità
