Name: Monitor rack dual scope 4K - Blackmagic Design BLM-HDL-SMTWSCOPEDUO
Brand: BLACKMAGIC DESIGN
SKU: BLM-HDL-SMTWSCOPEDUO
Price: 1107.06 EUR
Availability: OutOfStock

Monitor rack dual scope 4K - Blackmagic Design BLM-HDL-SMTWSCOPEDUO

Non disponibileNuovo

SKU BLM-HDL-SMTWSCOPEDUOEAN 9338716004458

Prezzo per 1 unità

1107,06 €

907,43 € + IVA

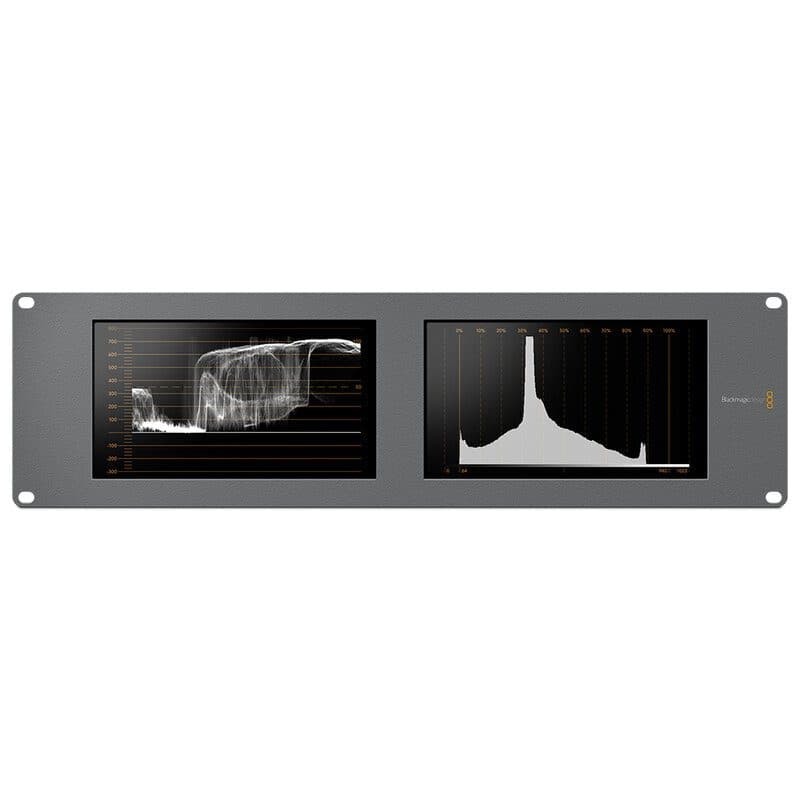

Monitor rack dual con scope indipendenti per forma d'onda, vectorscope, RGB parade, YUV parade, istogramma e livello di fase audio. Ogni display consente qualsiasi combinazione di scope o picture view.

Descrizione

SmartScope Duo 4K di Blackmagic Design è simile allo SmartView Duo ma aggiunge il monitoraggio indipendente della forma d'onda in modo da poter selezionare tra forma d'onda, vectorcope, RGB parade, YUV parade, istogramma e visualizzazione del livello di fase audio. Ogni monitor è indipendente, il che significa che è possibile visualizzare qualsiasi combinazione di scope o picture view!

Specifiche tecniche

2K format support	2K DCI 23.98p, 24p, 25p; 2K DCI 23.98PsF, 24PsF, 25PsF
Audio sampling	television sample rate of 48 kHz
Color precision	8-bit
Color space	YUV and RGB

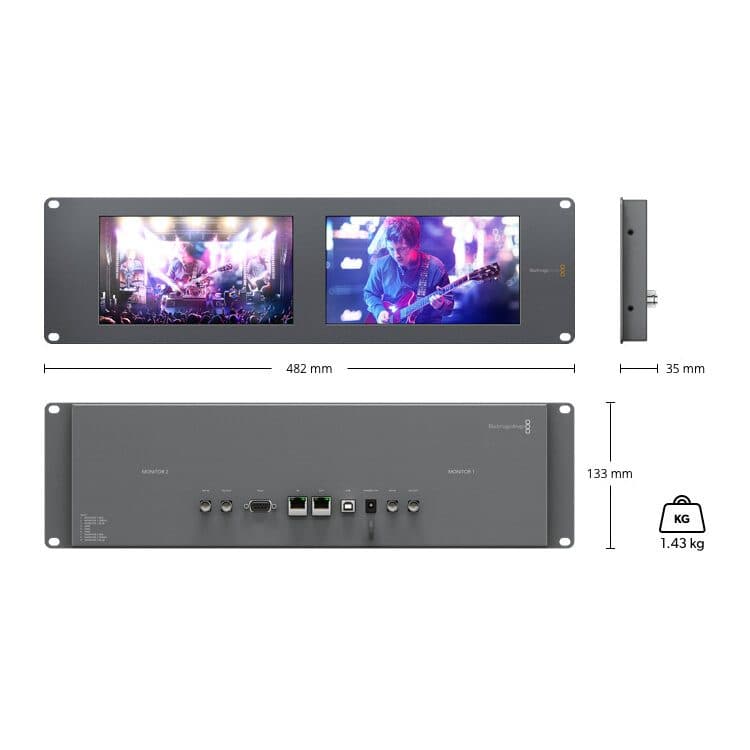

Dimensions	48.2 x 13.3 x 3.2 cm
HD format support	720p 50, 59.94, 60; 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1080PsF 23.98, 24, 25, 29.97, 30; 1080i 50, 59.94, 60
Internal software upgrade	via included firmware updater software
Mac	macOS 10.15 Catalina, macOS 11.1 Big Sur or later
Multi rate support	standard definition SDI, high definition SDI and 6G-SDI
Operating temperature	0 to 40 °C
Operational voltage range	12 - 15 V
Power consumption	less than 20 W
Power supply	12V universal power supply included with international socket adapters
Relative humidity	0% to 90% non-condensing
SDI audio input	16 channels embedded in SD, HD and UHD
SDI audio output	16 channels embedded in SD, HD and UHD
SDI compliance	SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M
SDI video input	automatically switches between SD, HD and 6G-SDI. Reclocked loop through output
SDI video output	1 x 10-bit loop through SD, HD and 6G-SDI switchable
Software included	configuration utility for Mac and Windows
Storage temperature	-20 to 45 °C
Tally	9-pin D connector
Video sampling	4:2:2 and 4:4:4
Weight	1.53 kg
Windows	Windows 10, 64-bit
