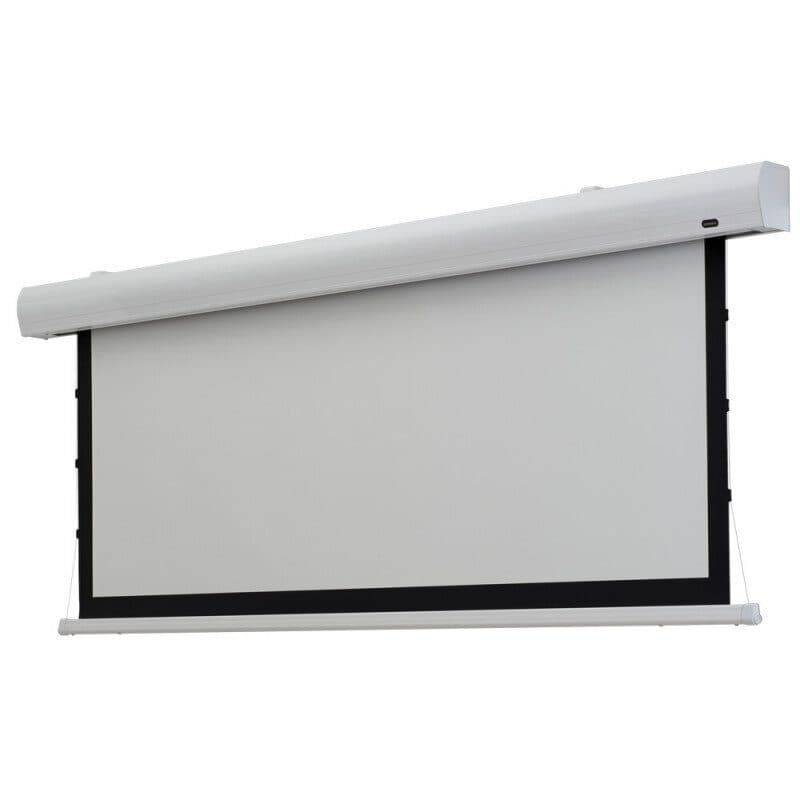

Celexon HomeCinema Tension screen with a visible projection surface of 300 x 169 cm (135") in 16:9 format.
It was developed for all home cinema enthusiasts, with a focus on functional components and useful features, while also offering an elegant design, high-quality materials, and an excellent price/performance ratio. The projection surface is made of glass-fiber-based fabric, optimized for high-definition content but perfectly suited to images of any resolution. Unlike pure PVC screens, the glass-fiber structure ensures superior thermal stability and significantly longer lifespan. The fabric is M1 and B1 certified for fire protection, treated with an anti-mold coating, and features an anti-static effect. Visual reproduction is uniform, with a wide viewing angle, thanks to the diffusely reflective D-type surface. The gain of 0.9 was deliberately chosen as "neutral" because it ensures unaltered colors and optimal contrast, offering uniform and brilliant images.

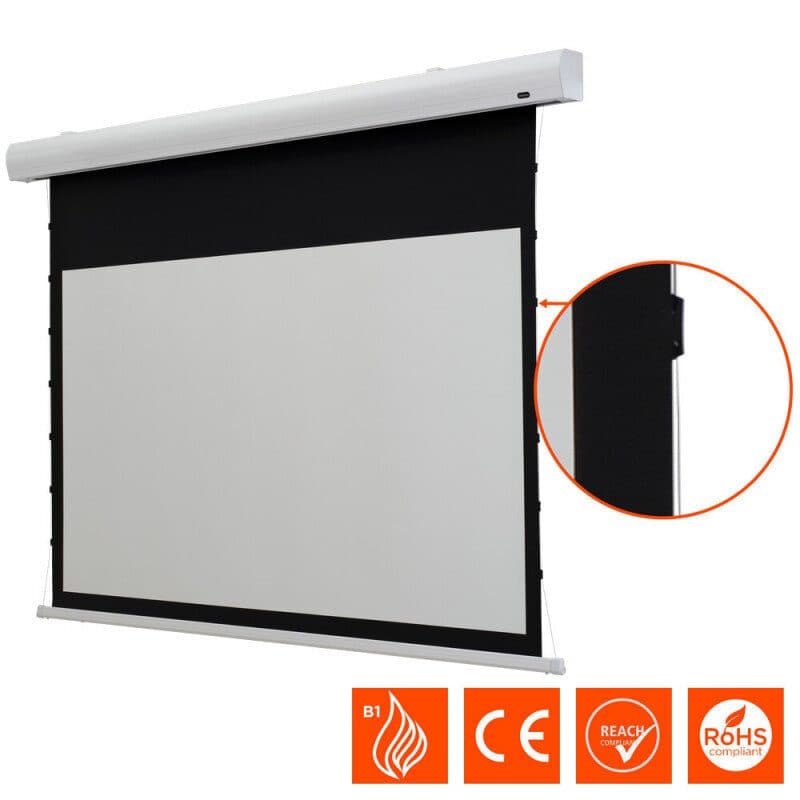

The screen structure is designed for stability and Flatness: The large-diameter tube and weighting bar prevent horizontal bands, while the lateral tensioning system eliminates creases at the corners. Integrated adjustment screws allow the screen to be re-tensioned even after years of use. The HomeCinema Tension – MWHT model comes with complete accessories and offers several ready-to-use control options: radio and infrared remote controls included, automatic control via a trigger cable connected to the projector, or integration with control systems via RS232 protocol or dry contacts.
The black back reduces light from behind, while the cord system keeps the surface perfectly tensioned. The white aluminum case, with its elegant and discreet design, integrates a quiet, high-torque tubular motor, ensuring reliability and smooth operation.

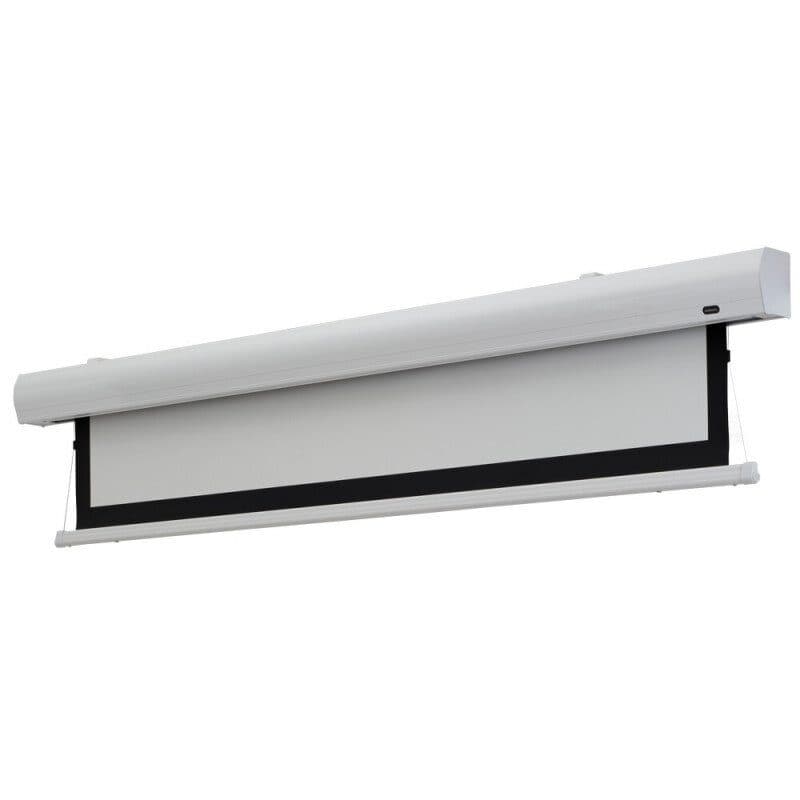

The "teardrop" design of the body Made of extruded aluminum, it blends harmoniously into modern environments, appearing discreet, especially when the screen is retracted. Installation is simple and secure: the aluminum tube is secured with two adjustable brackets, suitable for both wall and ceiling mounting, or can be suspended using the supplied eyelets. The projector comes with a fabric screen with a fiberglass backing and a 3-meter pre-wired power cable.
Main features

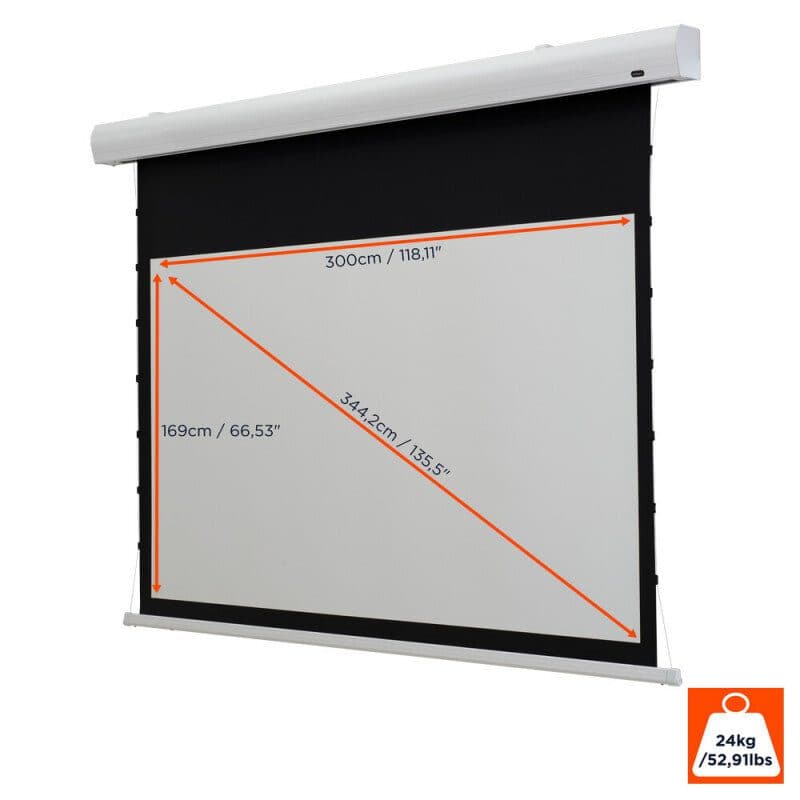

Visible projection area: 300 x 169 cm (135")
Aspect ratio: 16:9

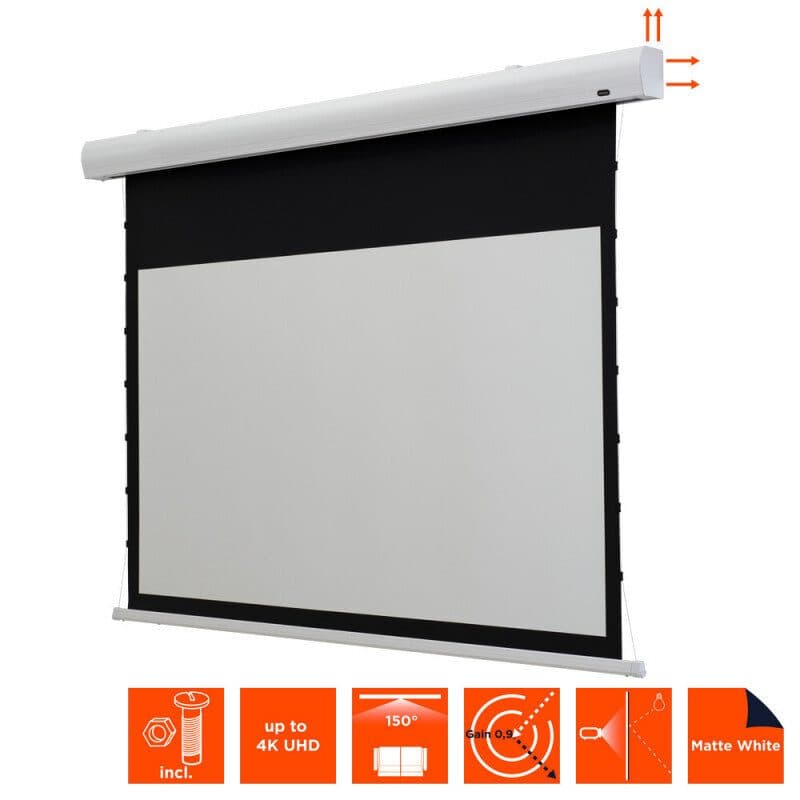

4K compatible, PVC-coated fiberglass screen with a fine surface structure
Projection screen type: D (diffuse reflection), matt white (MWHT)
Gain factor 0.9, 150° viewing angle

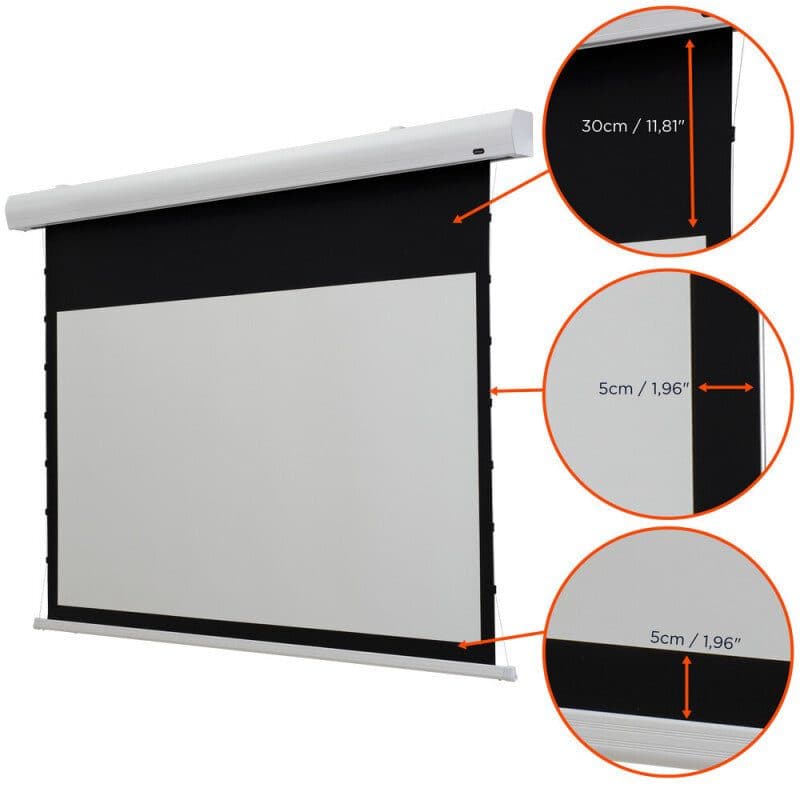

5 cm black borders for fatigue-free viewing
30 cm black drop at the top – adapted to the format
Black backing minimizes light from behind
Cord system For effective tensioning of the projection area

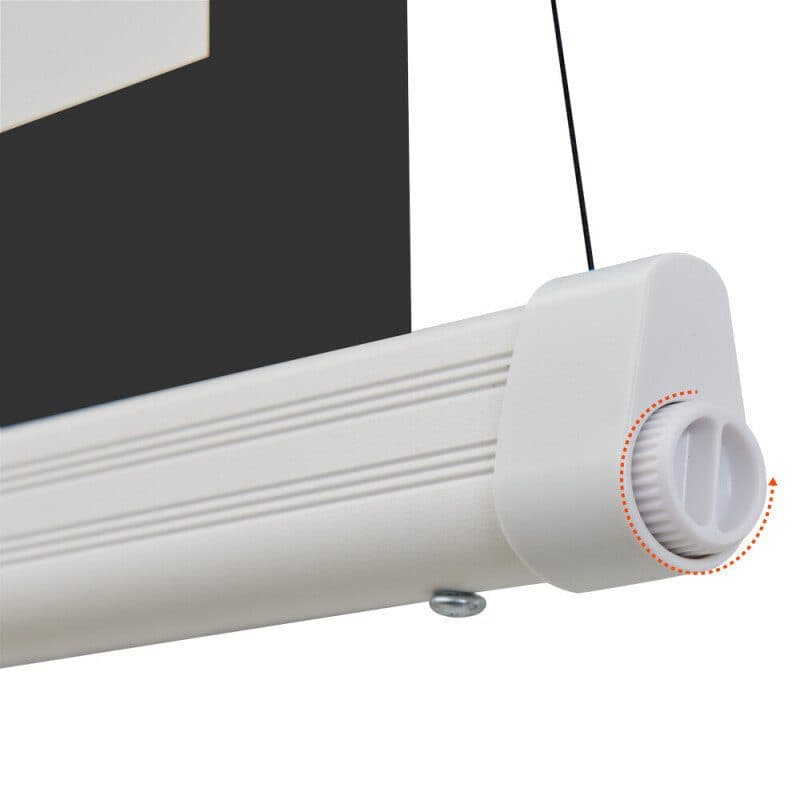

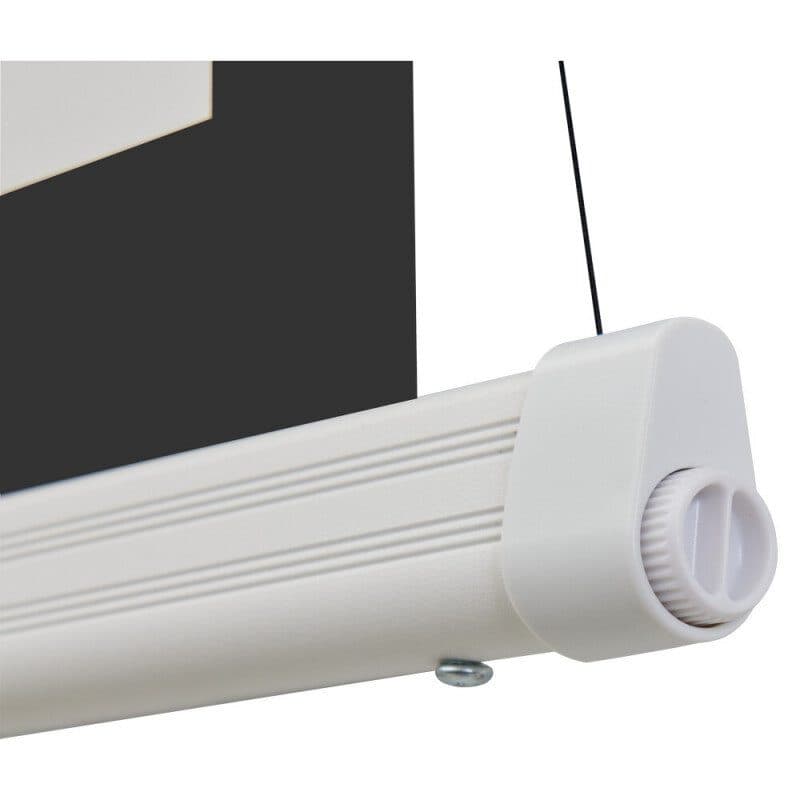

Adjustment screws integrated into the weighting bar allow for the adjustment of the tensioning cord system as needed
Dimensionally stable shaft with large diameter for optimal flatness and streak-free operation

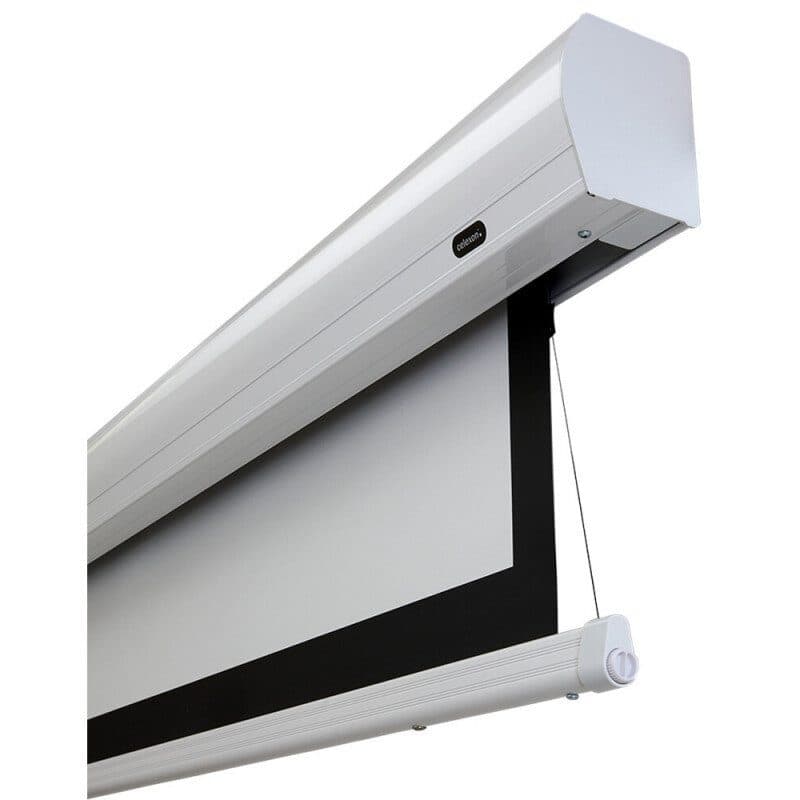

Sleek white aluminum housing with white side terminals
Flexible wall / ceiling mounting bracket
Intelligent side terminal with integrated control unit and various control options
Quiet, high-torque tubular motor: durable and smooth running

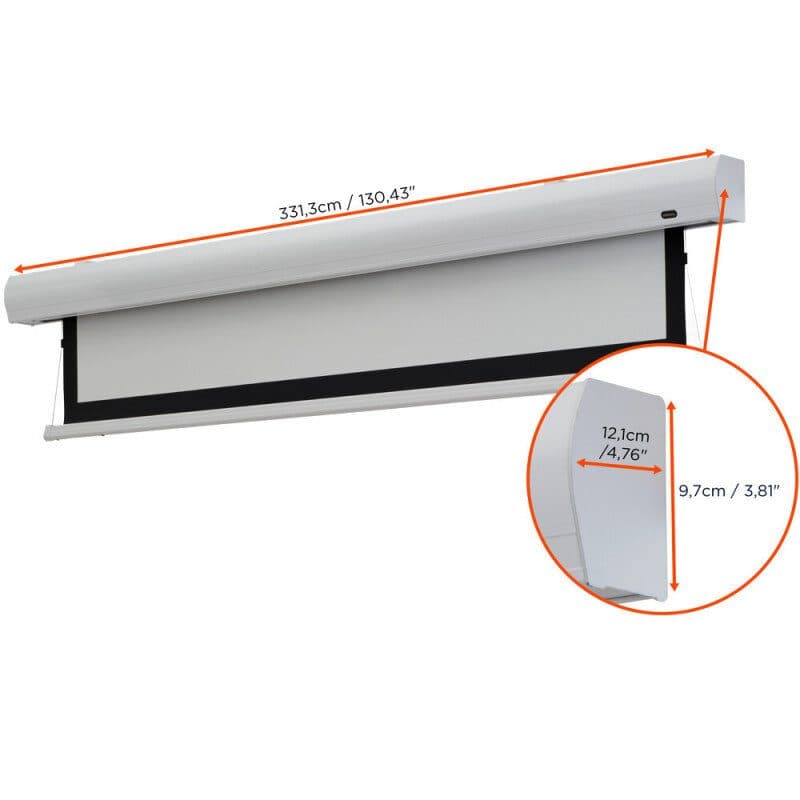

Housing dimensions: 337 x 9.7 x 12.1 cm (L x W x H), weight 24 kg
Certifications: ROHS, REACH, CE - 2014/53/EU, DIN 4102-1 (B1 fire protection)
Screen control option
Integrated radio receiver + separate infrared eye with corresponding remote control
Trigger connection: 3 - 12 V, with matching trigger cable
2 x RJ12 cables for independent wiring and connection RJ12 (RS232 protocol) e.g., RTI, Crestron, Control4, etc.
Potential-free contacts via RJ12, controllable via relay
Technical characteristics
- Product series: Electric Tension HomeCinema
- Screen type: tab tension screen
- Projection type: front projection
- Format: 16:9
- Viewing area (width): 300 cm
- Viewing area (height): 169 cm
- Black drop (top): 30 cm
- Black border (left / right): 5 cm
- Black border (bottom): 5 cm
- Black back: yes
- Gain factor: 0.9
- Mount: ceiling, wall
- Color: white
- Product dimensions (width): 337 cm
- Product dimensions (height): 12.1 cm
- Product dimensions (depth): 9.7 cm
- Product weight (net): 24 kg
