Video wall processor 2×1 rotation warping 4K - CYP DS-VWC2-4K22

CYP DS‑VWC2‑4K22 is a 2 × 1 UHD+ video wall processor that can scale and rotate any HDMI source to achieve virtually any required angle, orientation or size. It is designed for presentations on unconventional displays and for creative video configurations that traditional scalers cannot provide. HDMI sources are supported up to 4K @ 60 Hz with 2-channel LPCM audio.

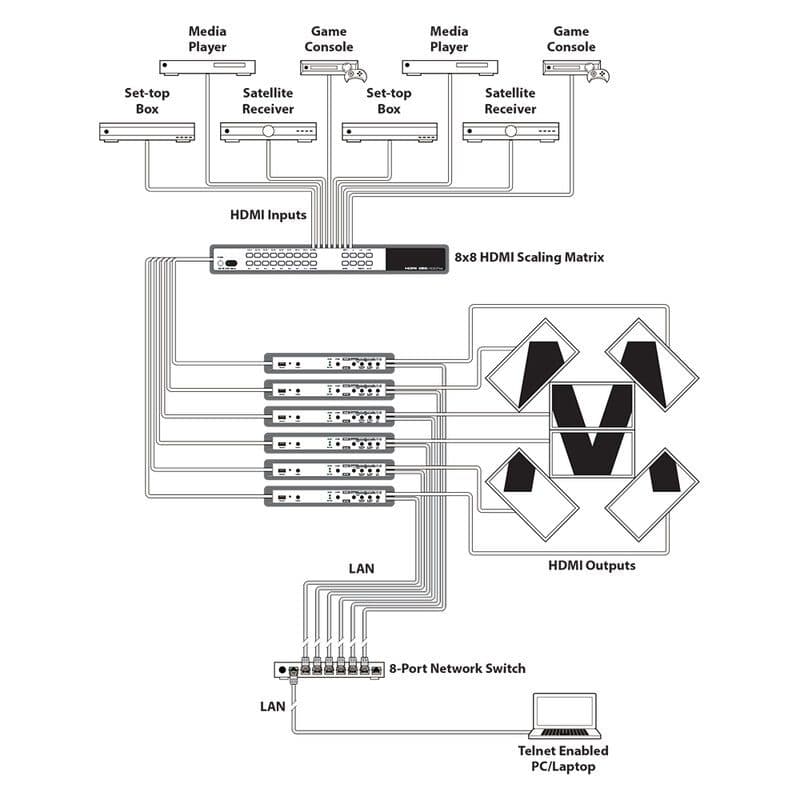

Warping mode keeps the output fixed at 4K while maintaining latency of only 1–2 frames. It provides zoom, image distortion and rotation up to 360° with 1° precision. Scaling mode offers a broad range of output resolutions up to 4K @ 60 Hz, together with two independent PiP windows, customisable borders, mirror effects, cropping and chroma key. Multiple units can be combined through HDMI splitters or matrix switches to create complex video walls with rotated displays and dramatic layouts.

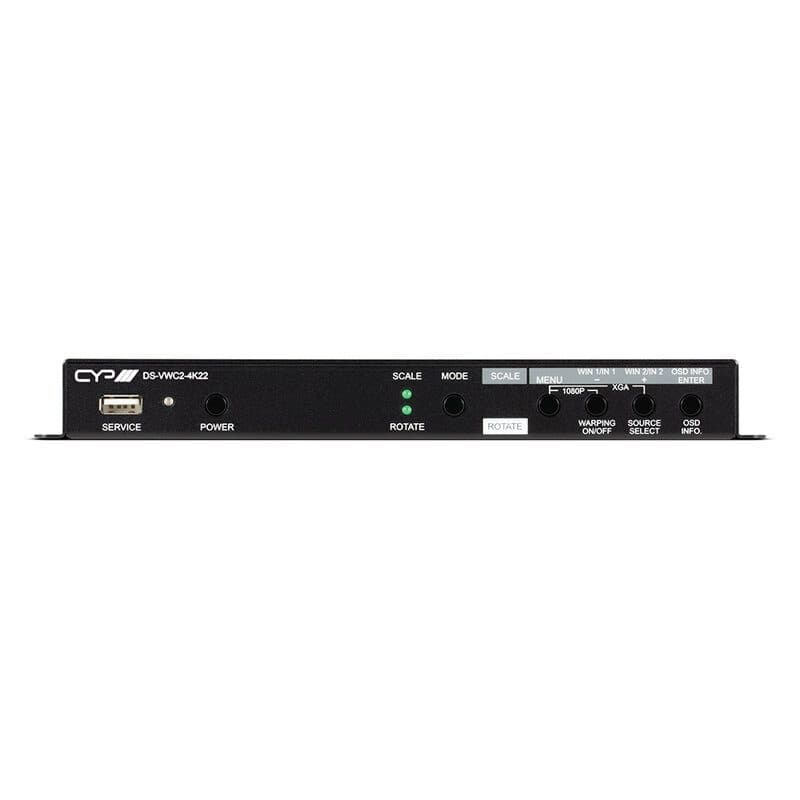

The dedicated Video Wall software uses an intuitive WYSIWYG interface to design the complete system and includes ready-to-use presets for faster setup. The processor can be controlled from the front-panel OSD, through Telnet or RS‑232, or with PC software. Seamless switching and an optional crossfade transition are supported. Video adjustments include contrast, brightness, saturation, hue, sharpness and aspect ratio; presets can be saved and recalled for multi-window layouts or warping configurations.

Audio management is independent for each operating mode. Graphic logos can be loaded through USB, and EDID can be managed separately for each input. The DS‑VWC2‑4K22 complies with HDMI 2.0 and DVI 1.0 via adapter and supports HDCP 1.x and 2.2. It has 2 HDMI Type-A inputs and 1 HDMI Type-A output, supporting up to 4K UHD+ at 18 Gbps, 4K @ 50/60 Hz 4:4:4 and 8-bit.

Control connections comprise 1 RS‑232 port on a 3.5 mm connector and 1 RJ‑45 control port; the USB service port handles firmware, EDID and logo functions. Required power is 24 V DC / 2.7 A. HBM ESD protection is ±8 kV for air discharge and ±4 kV for contact discharge. The chassis is made of metal, steel, and has a black finish. Operating temperature is 0 to 40 °C, storage temperature is −20 to 60 °C and permitted relative humidity is 20–90% RH, non-condensing. Power consumption is 9.5 W.

Dimensions are 23.15 × 4.4 × 16.7 cm for the case only and 23.15 × 4.4 × 17.4 cm all inclusive; weight is 652 g. The box is listed as containing one UHD+ 2 × 1 HDMI video wall rotation processor, one 24 V DC / 2.7 A power adapter and one additional item shown in the source as “1 × sh”.

Applications include public commercial displays, commercial installations, demo rooms, showrooms, corporate presentations, information displays for hotels, lobbies and reception areas, public events, live installations, creative video scenography, control rooms and education environments.
