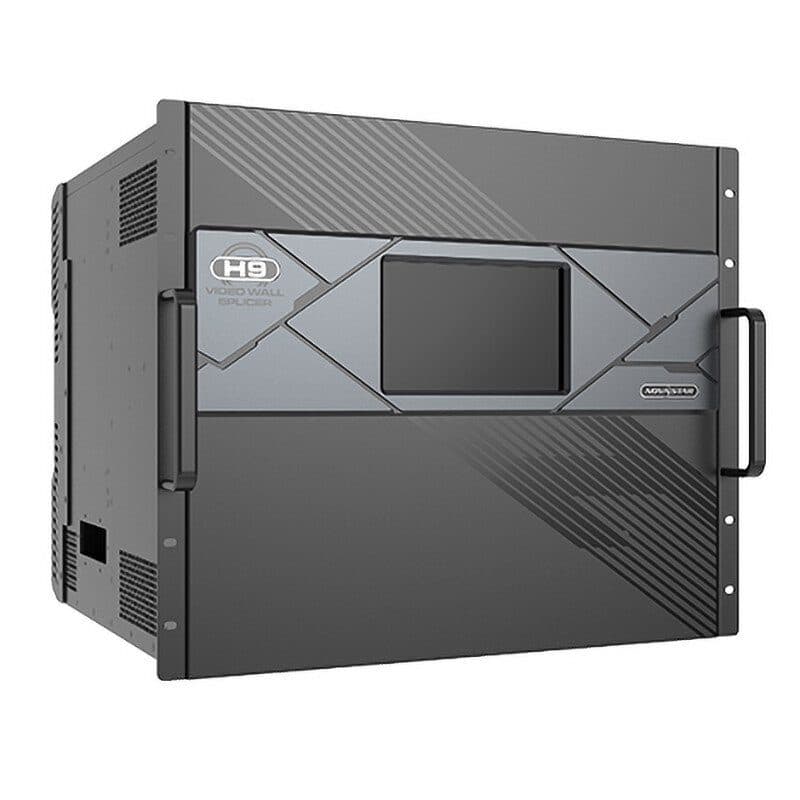

Modular H9 Enhanced master video splicing processor - NOVASTAR NOV-H9 ENHANCED

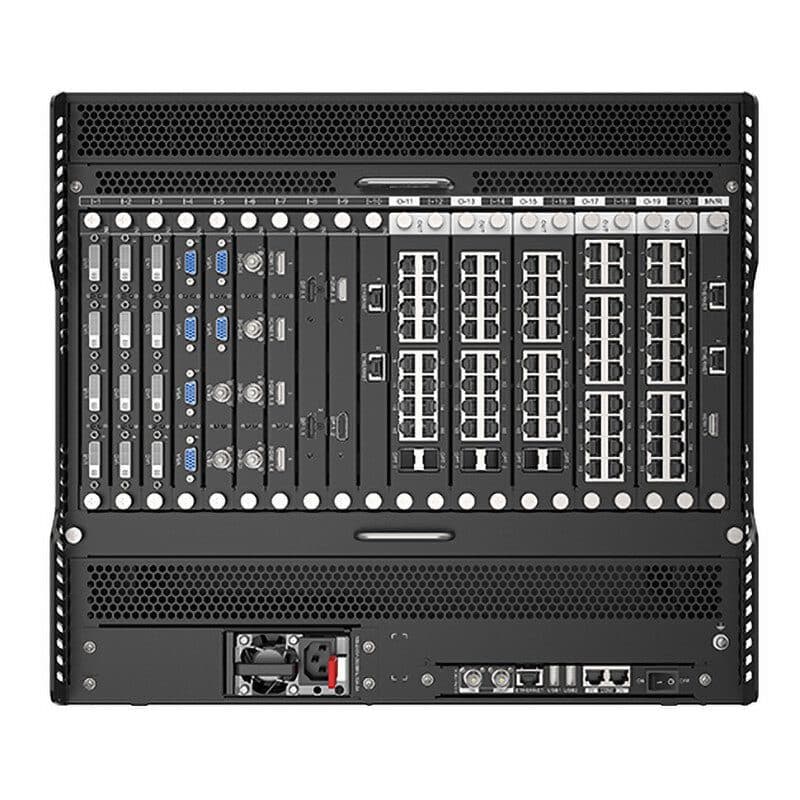

Novastar H-series modular processors are intended for use in fixed installations with large-size and fine-pitch LED displays. The H9 enhanced is an all-in-one solution that combines video splicing and LED management in a single chassis. The modular design works with hot-swappable Plug-in modules that allow flexible configuration of input and output cards. A variety of modules with industry-standard input connectors are available, so the system can be optimized for the intended installation. This video splicing processor is based on a powerful FPGA hardware system architecture, which provides stable and highly efficient operation. It supports 10-bit video sources and processing, and 4K high-definition inputs and outputs. Two types of 4K LED transmission cards are available, allowing backup connections and ultra-long-distance transmissions. The H9 enhanced supports multi-screen and multi-layer management, as well as EDID input and output management and monitoring. With its browser / server control architecture, it enables cross-platform and cross-system access and control from Windows, Mac, iOS, Android and Linux. Multi-user online collaboration is also supported.

Technical characteristics

• Rack unit: 9U
• Max. input cards: 15
• Max. input channels: 60
• Max. output cards (video output card): 10
• Max. output channels: 40
• Max. output cards (LED 4K sending card): 5
• Max. loading capacity (LED 4K sending card): 65 million pixels
• Max. loading capacity (H_4xfiber sending card): 208 million pixels
• Max. layers (video output card): 160
• Max. layers (LED 4K sending card): 80

Electrical specifications

• Power connector: 100 - 240 V_AC 50/60 Hz, 10 - 5 A. Note: The H9 comes with a single power supply. A redundant power supply is optional

• Power consumption: 450 W

Operating environment

• • Temperature: 0 to 45 °C
  • Humidity: 0 to 80% RH, non-condensing

Storage environment

• • Temperature: -10 to 60 °C
  • Humidity: 0 to 95% RH, non-condensing

Physical specifications

• • Dimensions: 48.26 x 53. x 40.58 cm
  • Packing box: 78 x 68 x 59 cm
  • Net weight: 35 kg
  • Gross weight: 49 kg

What's in the box

• H9 processor
• 1 x power cord
• 1 x RJ45 Ethernet cable
• 1 x grounding cable
• 1 x HDMI cable
• 1 x quick start guide
• 1 x certificate of approval
• 1 x safety manual
• 1 x custom letter
