17.3" Full HD SDI HDMI desktop monitor - DATAVIDEO DTV-2100-0193

17.3" Full HD desktop monitor with a panel resolution of 1920 x 1080. It supports multiple input and output configurations. The inputs are: 1 x 3G / HD / SD-SDI, 2 x HDMI, 1 x 3G / HD / SD-SDI, 1 x HDMI loop through. The TLM-170V is capable of cross-conversion of SDI, HDMI video signals and fits perfectly into the entire video production workflow. Various built-in functions: YRGB peak, Time Code, waveform, vector discoverer and audio level meter, peaking, zoom, pix to pix, underscan, check field. Tally light included. Optimal use for live productions.

Technical characteristics

Screen	17.3" LED backlit
Chassis	tabletop
Resolution	1920 x 1080 pixel
Viewing angle	(H) ±89° (V) ±89°
Luminance / contrast	300 cd/m2  / 700:1

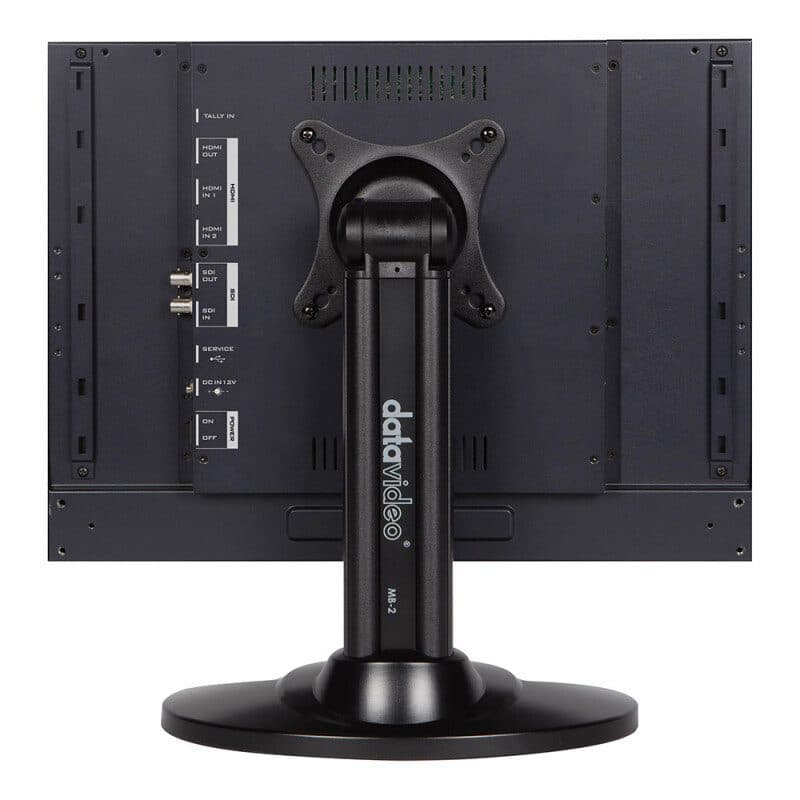

Video inputs	1 x 3G / HD / SD-SDI 2 x HDMI
Loop through	1 x 3G / HD / SD-SDI 1 x HDMI
Supported input resolutions	1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.95 / 60 Hz) 1080i (50 / 59.94 / 60 Hz) 720p (50 / 59.94 / 60 Hz) 576i (PAL), 480i (NTSC)
Aspect ratio	16:9, 4:3
tally LED	Live (red) Cued (green)
Audio IN/OUT	2 x speaker 1 x headphone jack
Special features	SDI and HDMI cross conversion, support column (YRGB peak), Time Code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field
Dimension (L x W x H)	40.3 x 30.5 x 4.1 cm
Weight	4.5 kg
Operating temp. range	0 - 40 °C
Power	10 - 18 VAC 32 W
Dimension (L x W x H)	40.3 x 30.5 x 4.1 cm
Weight	4.5 kg
What's in the box	1 x AD Switch 12 VDC 1 x monitor stand 2 x Velcro 1 x thank you card
