Desktop monitor 17" 4K IPS 12G-SDI HDMI - DATAVIDEO DTV-2100-0160

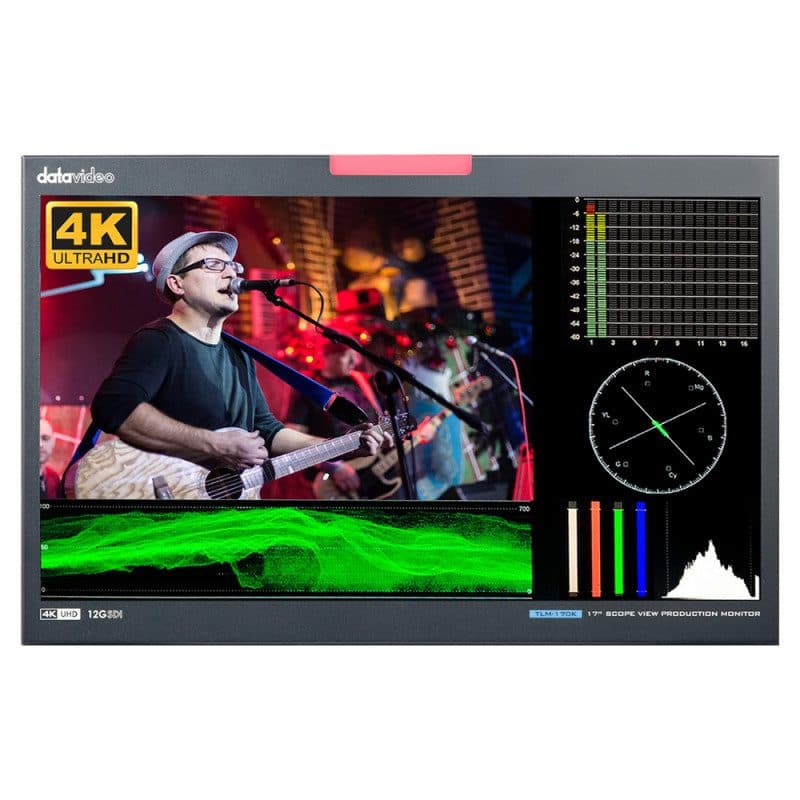

The TLM-170 K is a 17" 4K 3840x2160 pixel desktop monitor with IPS panel featuring a 178° wide viewing angle, 300 cd/m2 brightness, and contrast ratio of 1000:1. The high-brightness and contrast panel provides rich colors, revealing fine details in highlights and dark shadows. This monitor features a 12G-SDI input and 2 x HDMI 2.0 with loop-through outputs, supporting signals up to DCI 4K and Ultra HD for both input and output. The TLM-170 series monitor features a variety of professional and useful monitoring functions, including waveform, vectorscope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip and more still. It also supports HDR for HLG and SMPTE 2084, and color space presets include Rec 709 and DCI P3. The TLM-170 K is ideal for live production and broadcast applications. The tally light is included.

• Screen: 17.3" LED backlit
• Chassis: Tabletop
• Resolution: 3840 × 2160
• Viewing angle: (H) +89/-89° - (V) +89/-89°
• Luminance/Contrast; 300 cd/m² - 1000:1

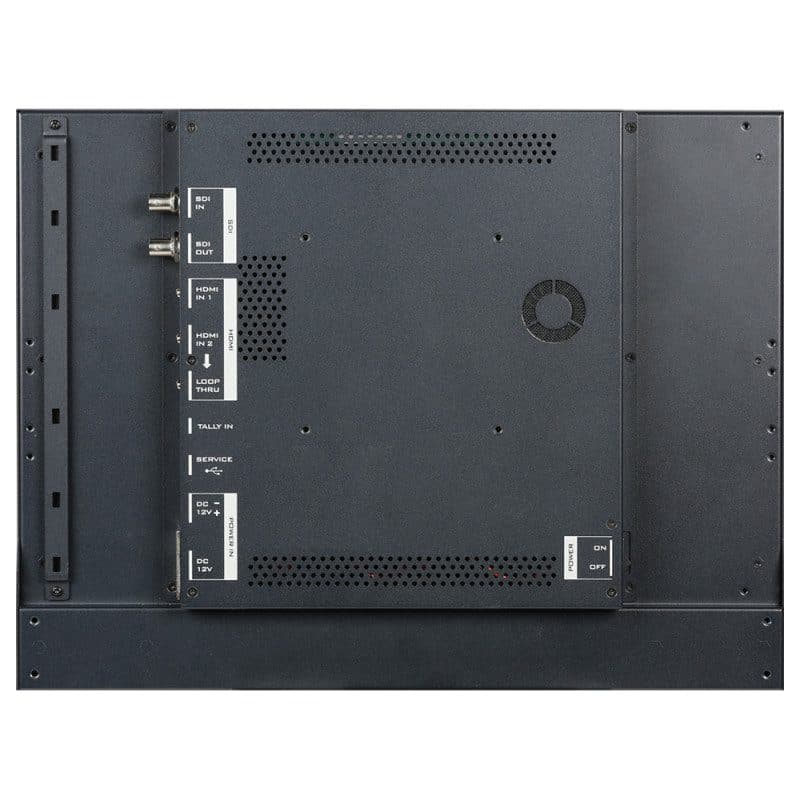

• Video inputs: 1 x 12G SDI - 2 x HDMI (2.0)
• Loop through: 1 x 12G SDI - 1 x HDMI (2.0)
• Supported input resolutions
  • SDI:: 4096 x 2160p (23.98/24/25/29.97/30/50/59.94/60) 3840x2160p (23.98/24/25/29.97/30/50/59.94/60) 4096 x 2160Psf (23.98/24/25/29.97/30) 3840x2160Psf (23.98/24/25/29.97/30) 1920 x 1080p (23.98/24/25/29.97/30/50/59.94/60) 1920 x 1080i (50/59.94/60) 1920 x 1080Psf (23.98/24/25/29.97/30) 1280×720p (23.98/24/25/29.97/30/50/59.94/60) 525i, 625i
  • HDMI: 4096 x 2160p (23.98/24/25/29.97/30/50/59.94/60) 3840x2160p (23.98/24/25/29.97/30/50/59.94/60) 1920 x 1080p (23.98/24/25/29.97/30/50/59.94/60) 1920 x 1080i (50/59.94/60) 1280×720p (23.98/24/25/29.97/30/50/59.94/60) 720 x480i (NTSC), 720 x576i (PAL) 640 x800, 800 x600, 1024 x768, 1280 x800
• Aspect ratio: 16:9, 4:3
• Aspect marker: yes
• Safty marker: yes
• Tally LED: Live (Red) Cued (Green)
• Audio IN/OUT: Input: embedded audio (48 kHz sampling) Output: analog stereo (phone jack) Speaker x 2 (3 W)
• Special features: waveform, vector scope, Focus Peaking, False Color, Exposure (Zebras), Histogram, HDR / SDR, Time Code, Audio Vector, Camera Log, Gamma, Marker, Pixel to Pixel, Zoom, H/V Delay, DSLR, Freeze, Image Flip, Check Field, Level Meter, Color Bar, Color Calibration.
• Dimension (W x H x D): 403 x 305 x 37 mm
• Weight: 5.2 kg
• Operating temp. range: 0 ~ 40° C
• Power: 12 V_DC / 40.1 W
