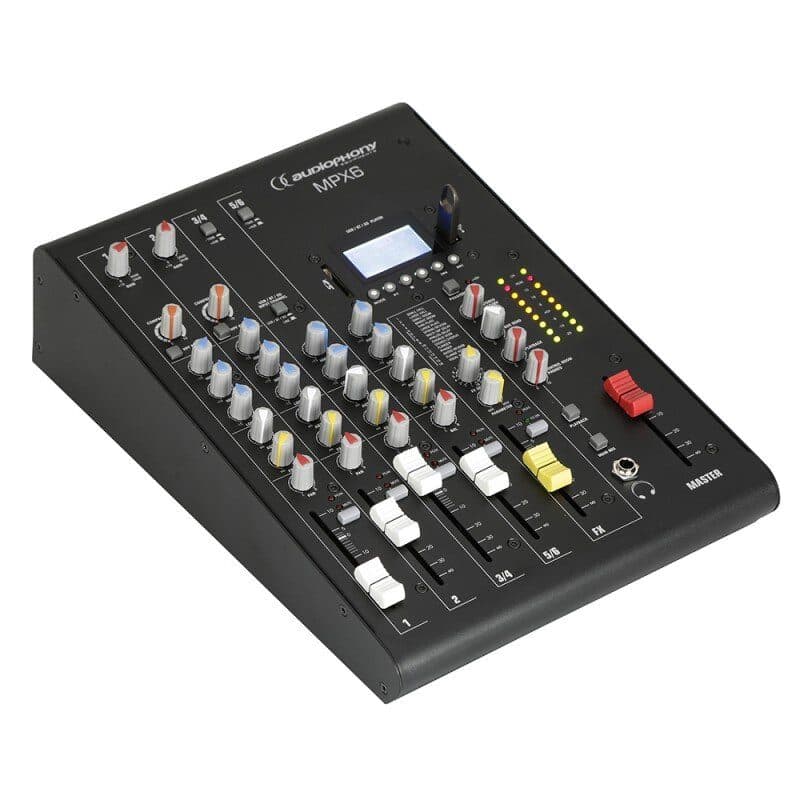

Analog mixer 6 inputs DSP USB SD BT - AUDIOPHONY HIT-H10905

AUDIOPHONY

Analog mixer 6 inputs DSP USB SD BT - AUDIOPHONY HIT-H10905

In stock: 1New

SKU HIT-H10905EAN 3662009019611

Price for 1 unit

232,01 €

190,17 € + IVA

6 CH mixer, compressor + effects, USB / SD / BT player

Description

6 input analog mixer with DSP effects and compressor on microphone channels. The integrated USB / SD / BT device gives further versatility, avoiding the need of additional peripherals.

Technical characteristics

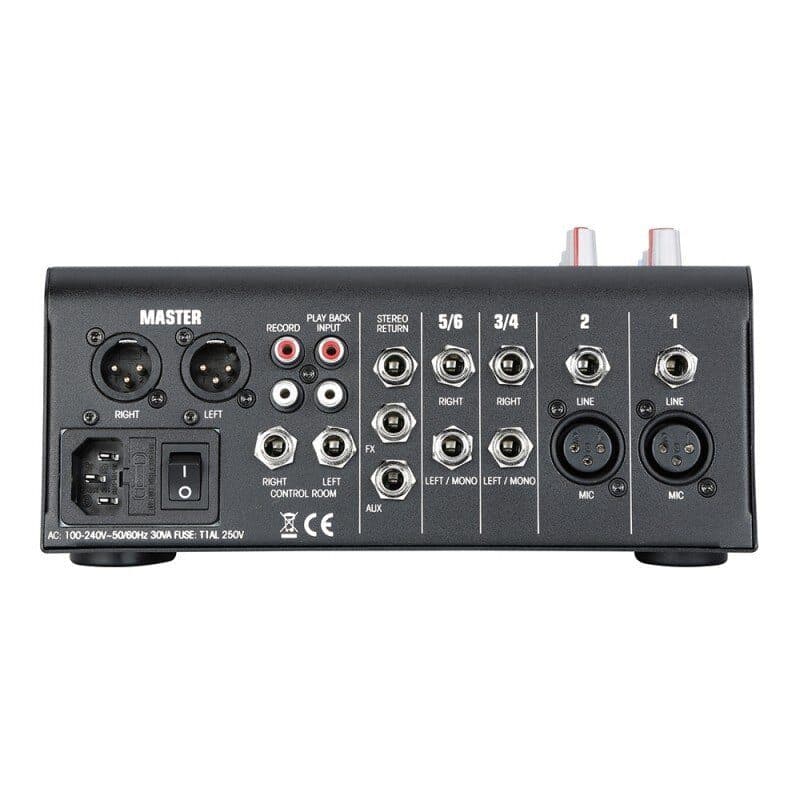

Inputs 6

MIC input channels

 2

Stereo input channels

 2

Gain

 min. - max.

MIC

 +6 dB to +50 dB

Line

 +10 dB to -34 dB

EIN

 -100 dB

MIC channel frequency response

 10 Hz - 20 kHz +1/-3 dB

THD MIC channel

 ≤ 0.03%

Signal to noise ratio

 80 dB

Output levels

Max. +27 dB (bal)

Max +22 dB (unbal)

Mono channel EQ (Hi)

 12 kHz ±15 dB

Mono channel EQ (Mid)

 2.5 kHz ±15 dB

Mono channel EQ (Low)

 45 Hz ±15 dB

Low Cut

 80 Hz

Compressor

 yes

+48 V Phantom power

 yes

MP3 / USB / SD media player

 yes

DSP effects, 16 programs

 yes

Bluetooth player

 yes

Dimensions

 33 x 22.4 x 9.2 cm
