Compact 6-channel 4 mic Phantom 48V USB mixer - AUDIOPHONY HIT-H10911

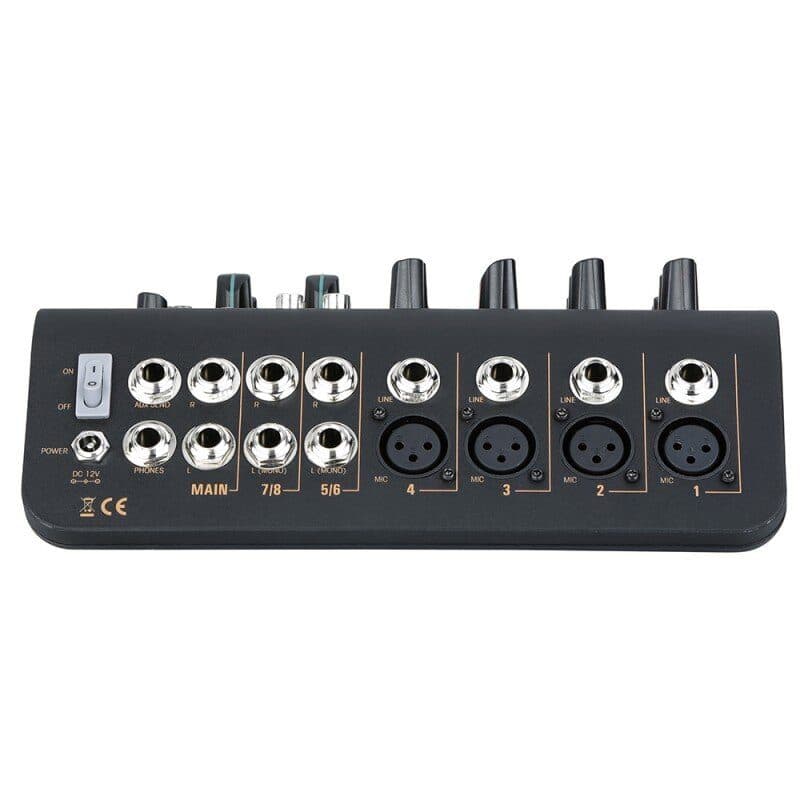

The Audiophony HIT-H10911 is a compact 6-channel mixer with 4 microphone and line inputs, 48 V Phantom power, 2 stereo inputs, an AUX send and a USB port. The four MIC inputs use XLR connectors, while the line inputs are balanced on 6.35 mm jacks. Stereo line inputs 5 and 6 and 7 and 8 are unbalanced and use 6.35 mm jacks.

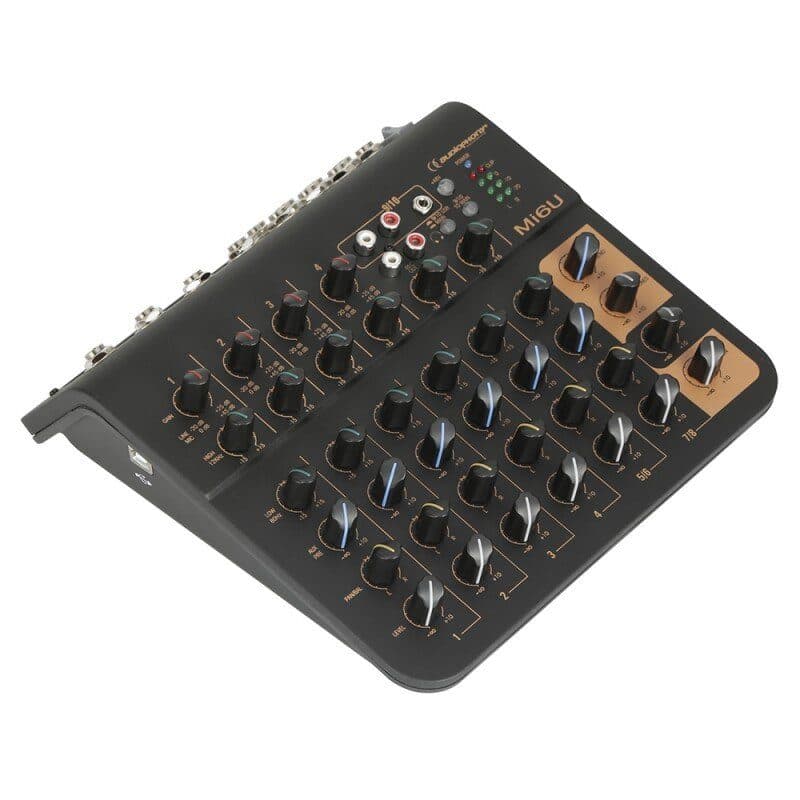

Microphone/line and stereo channels feature bass and treble tone controls. Rotary faders adjust the level of each channel. The pre-fader AUX send provides level control on every channel plus a master AUX control. Outputs include balanced MAIN L/R on 6.35 mm jacks, REC on a pair of stereo RCAs, a balanced AUX output and monitoring on a 6.35 mm jack. The USB port connects the mixer to a computer, while the LED VU meter monitors the MAIN output; the power supply is external.

The technical characteristics list 4 MIC inputs, 2 stereo inputs, 1 AUX, 2 Stereo L/R outputs and a full-duplex USB port. Phantom power is +48 V DC; gain is 65 dB for the MIC main output. MIC-channel equalisation is ±15 dB, with HI at 12 kHz and LO at 80 Hz; LINE-channel equalisation is also ±15 dB, with HI at 12 kHz and LO at 80 Hz. Frequency response is 20 Hz-20 kHz ±1 dB, maximum output level is +20 dBu and the VU meter has 4 LED segments, from -20 dB to CLIP. Distortion is ≤ 0.08% from 20 Hz to 20 kHz. The external adaptor provides 12 V DC; weight is 0.98 kg and dimensions (W x D x H) are 220 x 220 x 68 mm.
