LED panel P1.9 cabinet 250x500mm rotatable EasyFLEX - EGO DISPLAY LED-EASYFLEX-P1.9-25X50

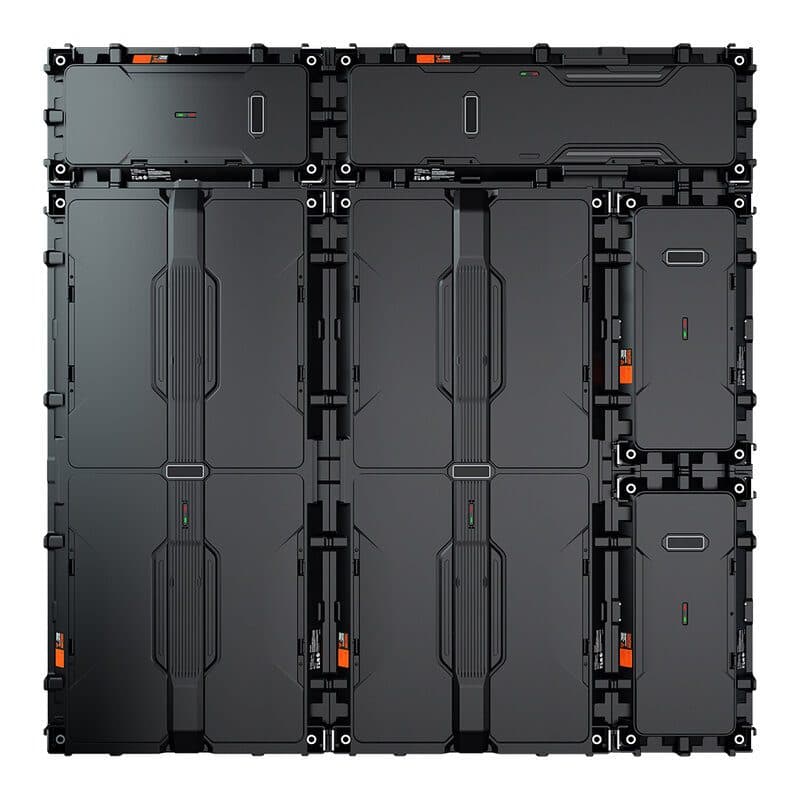

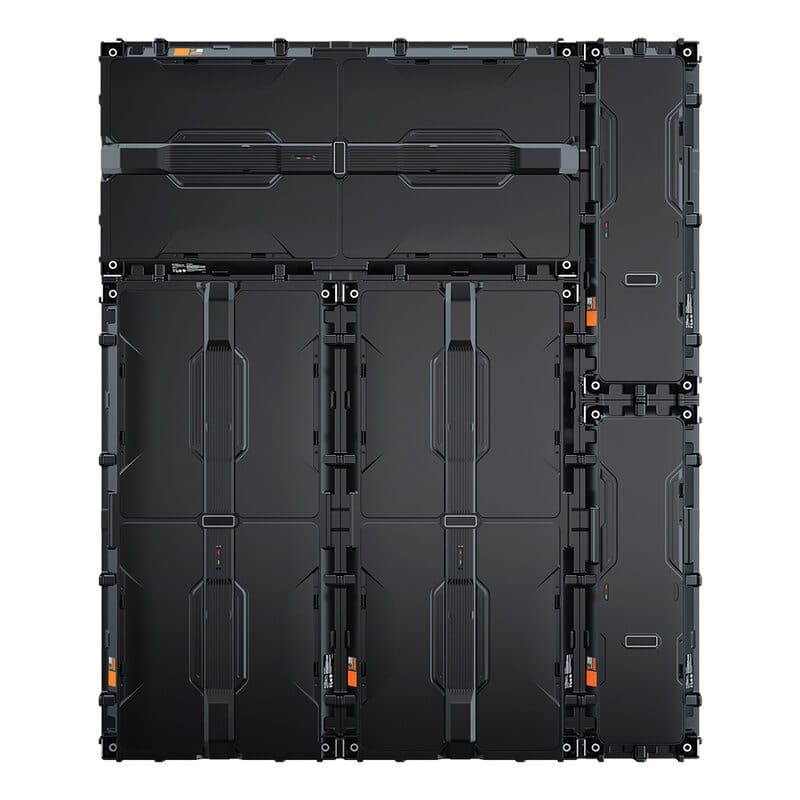

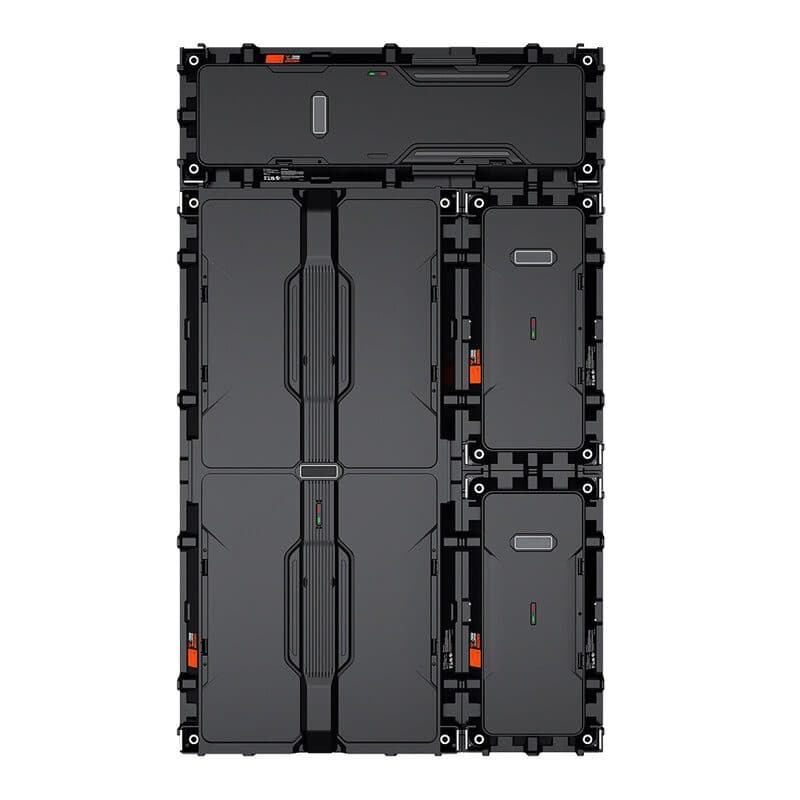

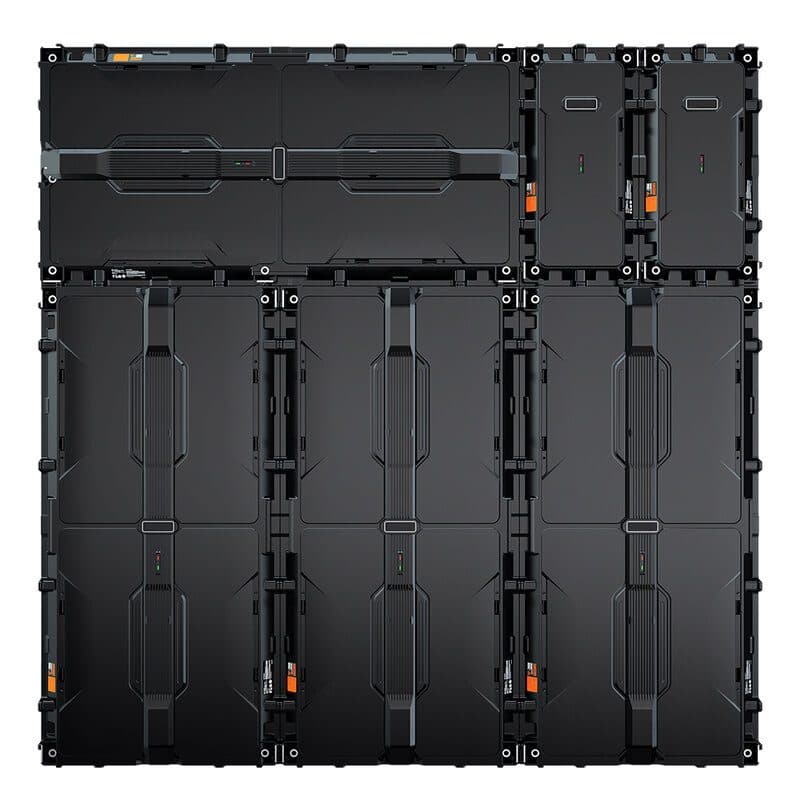

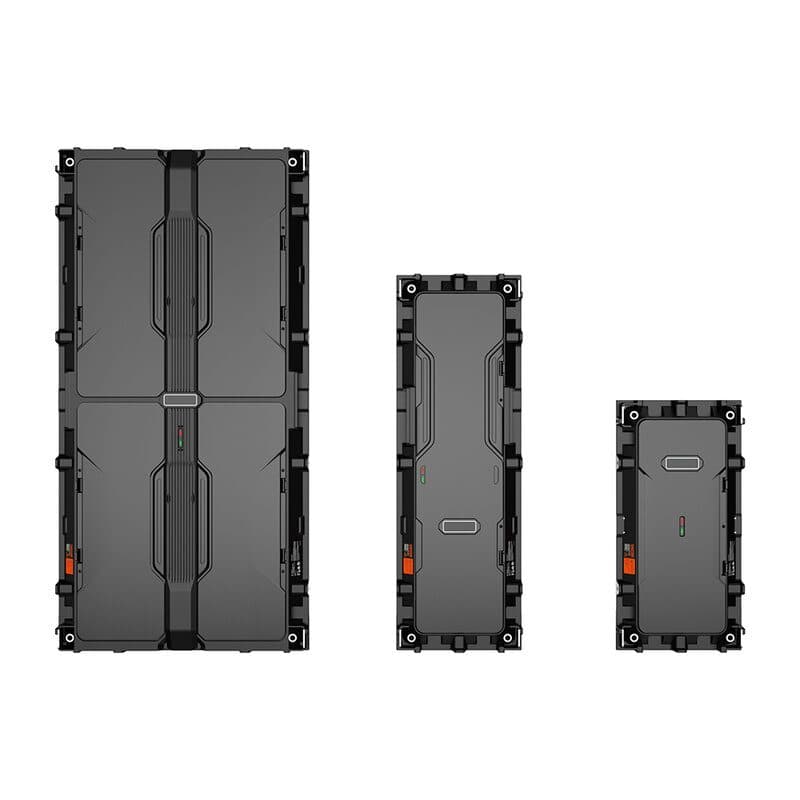

The EasyFLEX P1.9-25x50 is an innovative P1.9 LED panel designed for professional and commercial installations, a smart technical solution for all types of installations, especially where custom-fit solutions are required. Its main feature is its freely rotatable cabinet and module system, allowing for flexible configuration without color alterations, adapting to different installation needs, whether horizontal or vertical. The mounting mechanisms are identical on the top and sides of the cabinet, so you can rotate and arrange it side by side to create the desired geometric shape and fill any empty spaces you want. Each module has a double connection on the rear (rotated 90°) so it can always be mounted in the correct orientation regardless of the cabinet's rotation. This allows LED walls to be created in 25 cm steps, both horizontally and vertically (using the other two available cabinets of the same type), which would normally require a custom design, resulting in additional costs and longer delivery times. In this specific case, the cabinet measures 250 x 500 mm. The structure integrates a rigid connection between the modules and a compact design with a combined receiver board and hub. The plug-in power supply simplifies installation and maintenance, while the option of 90° assembly angles allows for great configuration versatility. The display supports frontal maintenance, facilitating rapid interventions and reducing downtime. Dust protection ensures longer life, maintaining optimal performance even in demanding environments. It can be permanently mounted on a structure or wall, positioned directly on the floor, or suspended. User benefits Allows for creative shapes, offering greater design freedom Rotatable modules and cabinets for flexible configuration (up to 20 types of mixed joints) Rigid connection between modules for improved signal stability and quick disassembly Rear cabinet with no exposed cables Compact design with combined receiver board and hub Plug-in power supply Easy front and rear maintenance Screw-on protective covers, making them tamper-proof Dust protection for longer life High brightness option for semi-outdoor use (up to 3500 nits) Areas of use Shopping malls Shops (even with people passing behind them) Airports Subway stations Trade fairs Radio and television broadcasts

Technical characteristics

• Pixel pitch: 1.9 mm
• LED Type: 3-in-1 SMD
• Cabinet resolution (W x H): 128 x 256
• Maintenance: full front maintenance
• Protection: IP30
• Cabinet material: die-casting aluminum
• Brightness: 800 cd/m²
• Viewing angle (H / V): 160° / 160°
• Contrast ratio: 5000:1
• Max. power consumption: 460 W/m²
• Typical power consumption: 154 W/m²
• Processing depth: 14 bit
• Refresh rate: ≥ 3840Hz
• Standard mounting configuration: fixed / floor-mounted / hanging
• Optional mounting configuration: round shape, corner shape
• Input voltage: 100 - 240 V_AC
• Operating temperature / humidity: -10 to 45 ℃ / 10 to 80% RH
• Storage temperature / humidity: -20 to 55 ℃ / 10 to 85% RH
• Cabinet dimensions: 250 x 500 mm
• Weight: 3.5 kg
