Fixed indoor LED panel P2.5 Mark II 320x480mm 800nit - EGO DISPLAY LED-EASYPRO-P2.5-MK2

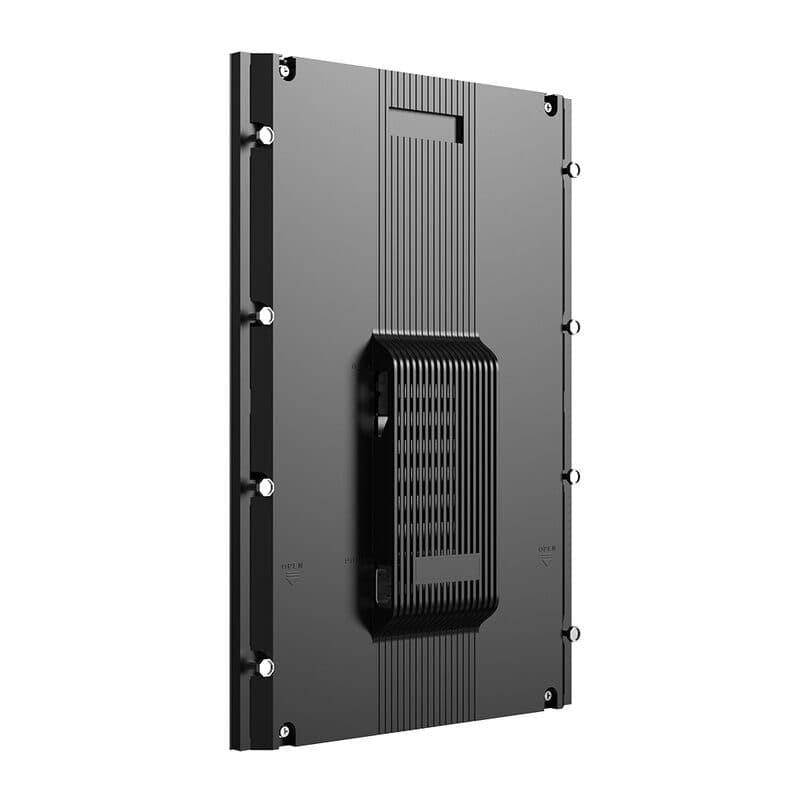

Mark II version of the P2.5 LED panel with 320 x 480 mm cabinet, Black SMD 3-in-1 TOP 1515, for fixed indoor installations (800 nits) with a contrast of 3000:1. The very light cabinet, weighing only 1.7 kg, houses 2 modules of 320 x 240 mm each and is only 46.5 mm thick. Its sandwich structure features an easily removable rear cover for quick maintenance, an integrated design for power supply and receiving card, screw fixing system between two modules.The magnetic cabinets and modules allow for quick installation and assembly, reducing installation and labor time by 30%. A safety rope (optional) is also available to hook the cabinets together. The high refresh rate of 3840 Hz ensures an excellent viewing experience, allowing you to take photos and record the displays with cameras without seeing the scan lines. In addition, the grayscale is 13 bit. The wide viewing angle of 160° horizontally and 140° vertically and the reduced pixel pitch optimize the close observation of the LED wall. Finally, EasyPro-P2.5 MK2 allows frontal maintenance: the modules can be easily removed with the suction tool. N.B. It does not have a self-supporting structure; for its use it is necessary to build a support structure / frame. User benefits High image quality thanks to Black SMD 3-in-1 TOP 1515 technology Ultra-light design weighing only 1.7 kg Slim cabinet, only 46.5 mm Magnetic fixing system that reduces installation and labor time by 30% 3840 Hz refresh rate for smooth images and free of visual artifacts Front maintenance with quick removal of modules Areas of use Commercial fixed indoor installations  Retail Corporate Conference Entertainment Board room Hospitality

Technical characteristics

Physical parameter
LED type	Black SMD 3-in-1 TOP 1515
Pixel Pitch	2.5 mm
Panel dimensions (W x H x D)	320 x 480 x 46.5 mm
Module dimensions (W x H)	320 x 240 mm
Pixel per panel	128 x 192
Panel weight	1.7 kg
Panel material	-
Optoelectronic parameter
Brightness	800 nit
Refresh rate	≥ 3840 Hz
Gray scale	13 bit
Contrast ratio	3000:1
Color temperature	9300 K
Viewing angle (H/V)	160° / 140°
Driving type	1/64
AC operating voltage	200 - 240 VAC
Power consumption (max. / avg.)	330 / 110 W/m²
Application parameter
Storage temperature	-40 to 60 °C
Operating temperature	-10 to 40 °C
Storage humidity	10 - 85% RH
Operating humidity	10 - 80% RH
IP rating (front / rear)	IP40 / IP21
Module maintenance	front
PSU & others maintenance	front
Panel installation type	front
