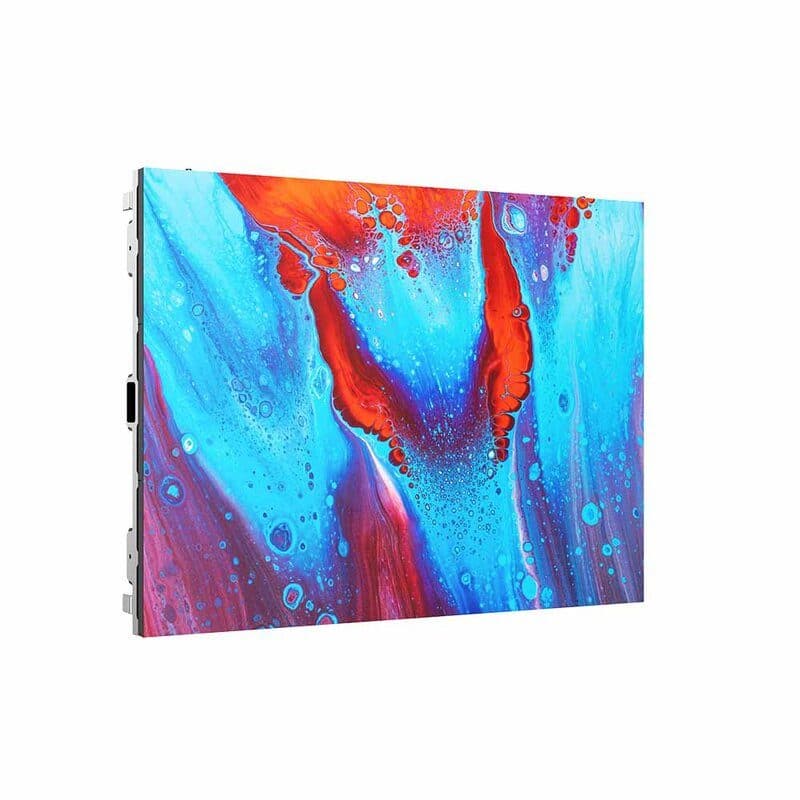

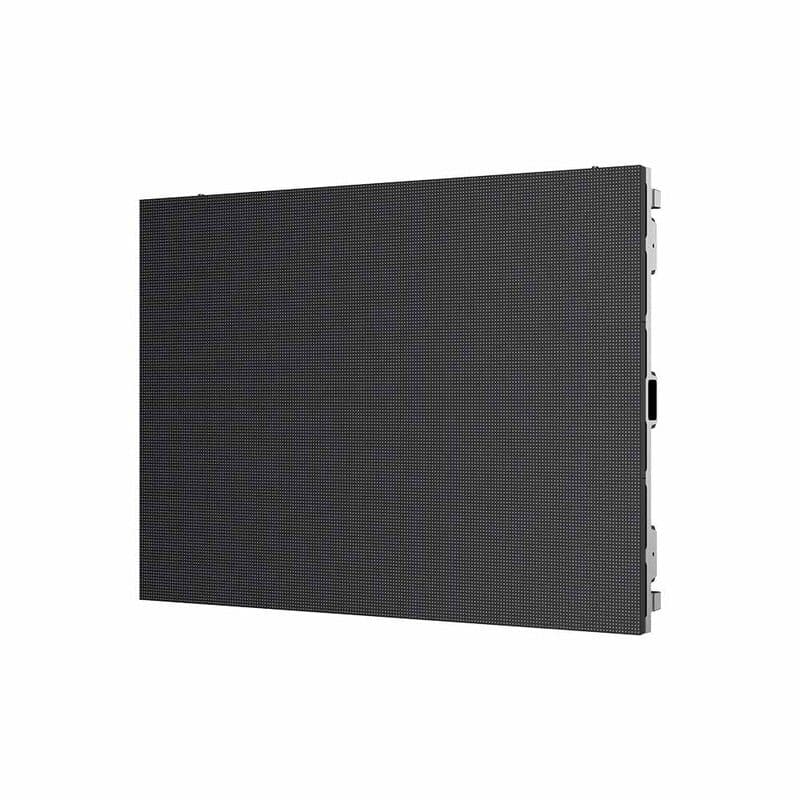

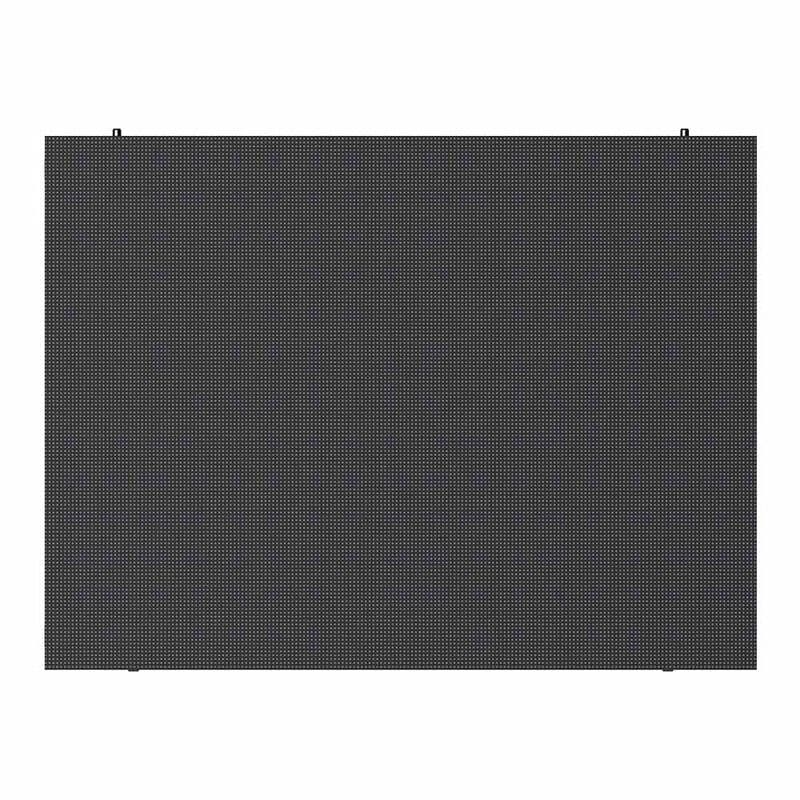

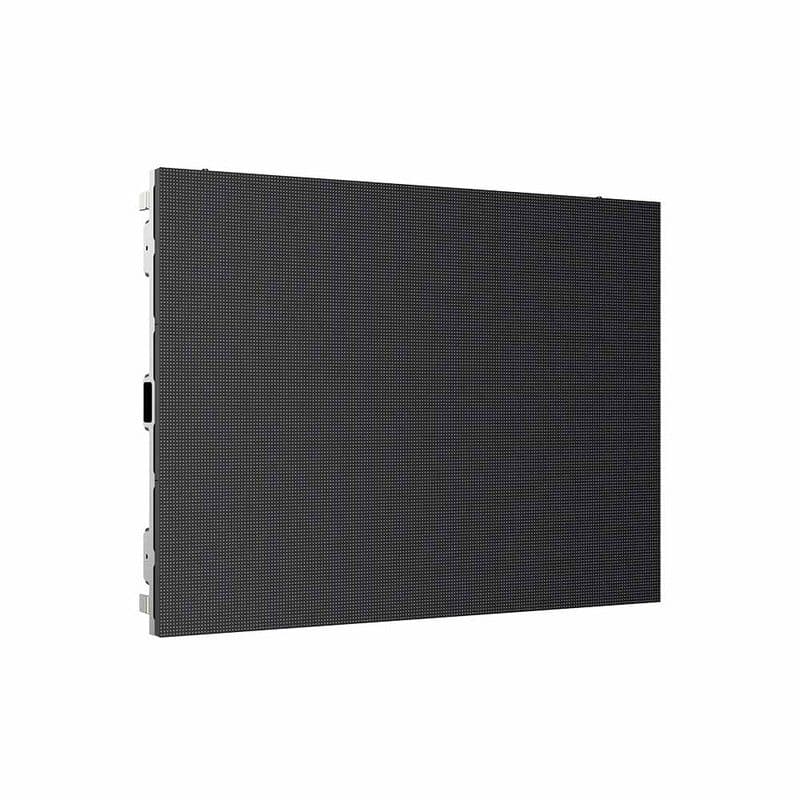

LED panel indoor P2.5 IP30 cabinet 640x480mm 600nit - EGO DISPLAY LED-EASYHP-P2.5

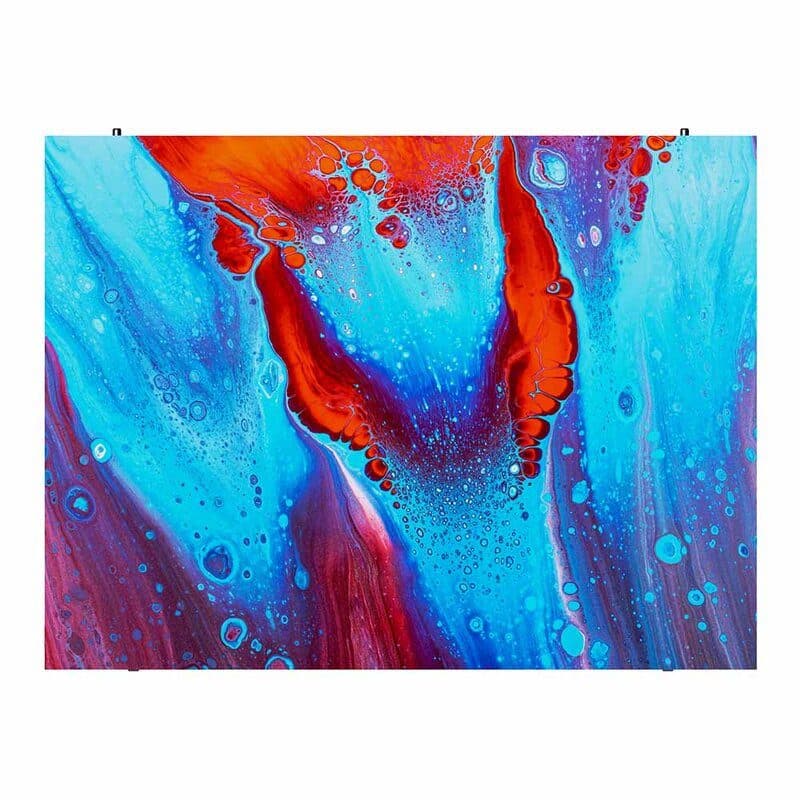

The EGO Display EASYHP-P2.5 is an indoor LED panel with a 2.5 mm pixel pitch and IP30 front protection. Each cabinet offers a resolution of 256 x 192 pixels and a density of 160,000 pixels per square metre. Its native aspect ratio is 4:3, while larger screen configurations can be arranged in 16:9; six horizontal modules combined with four vertical modules produce a perfect 16:9 ratio.

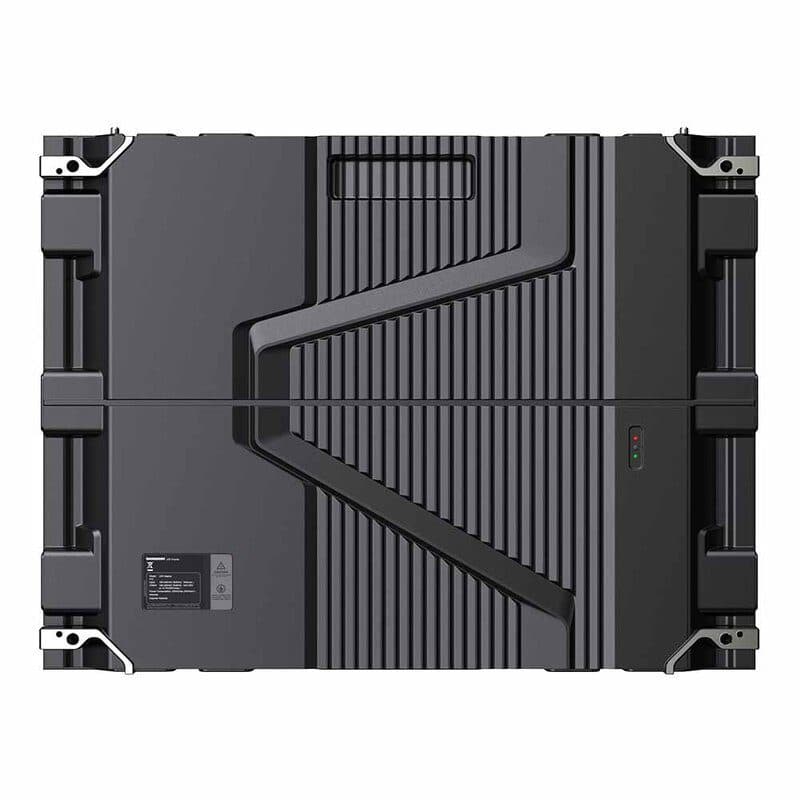

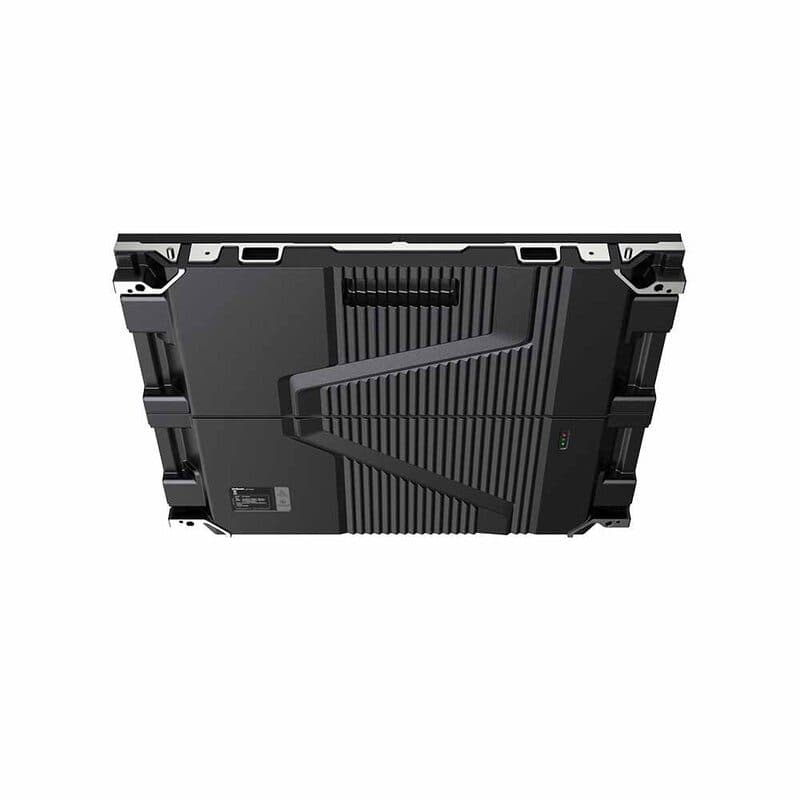

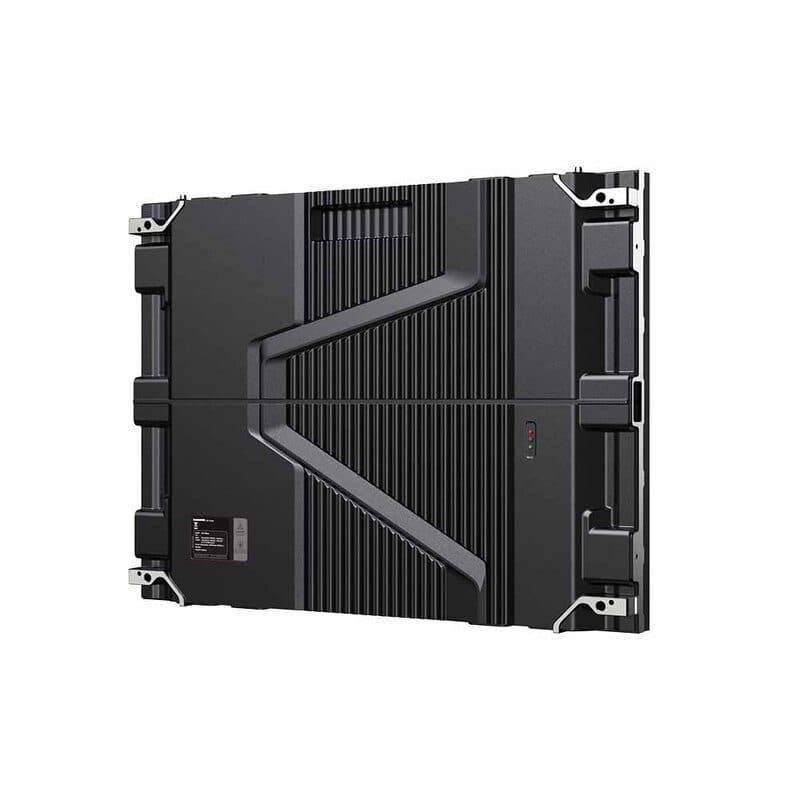

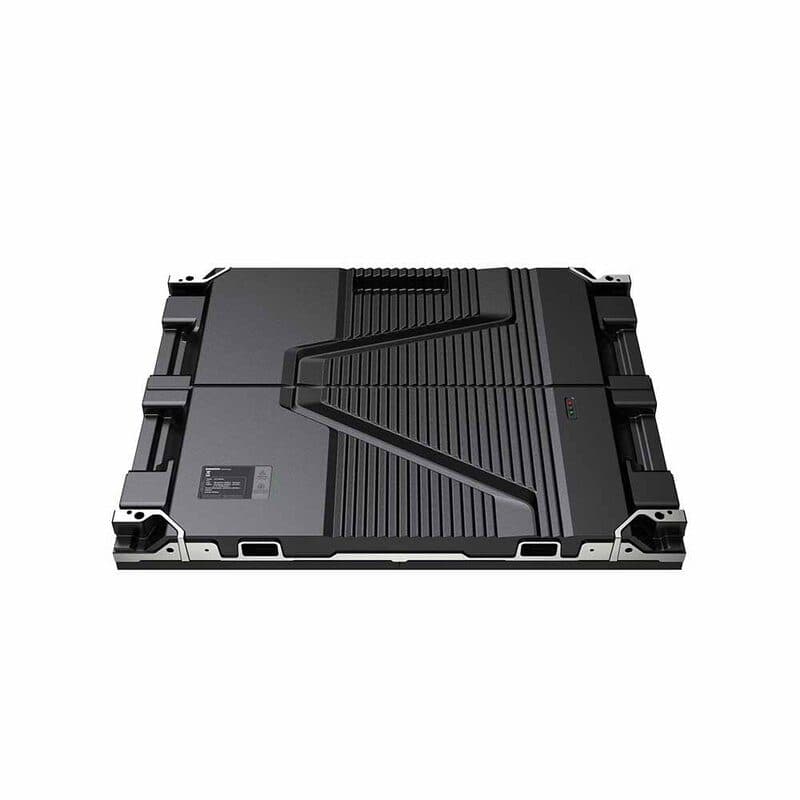

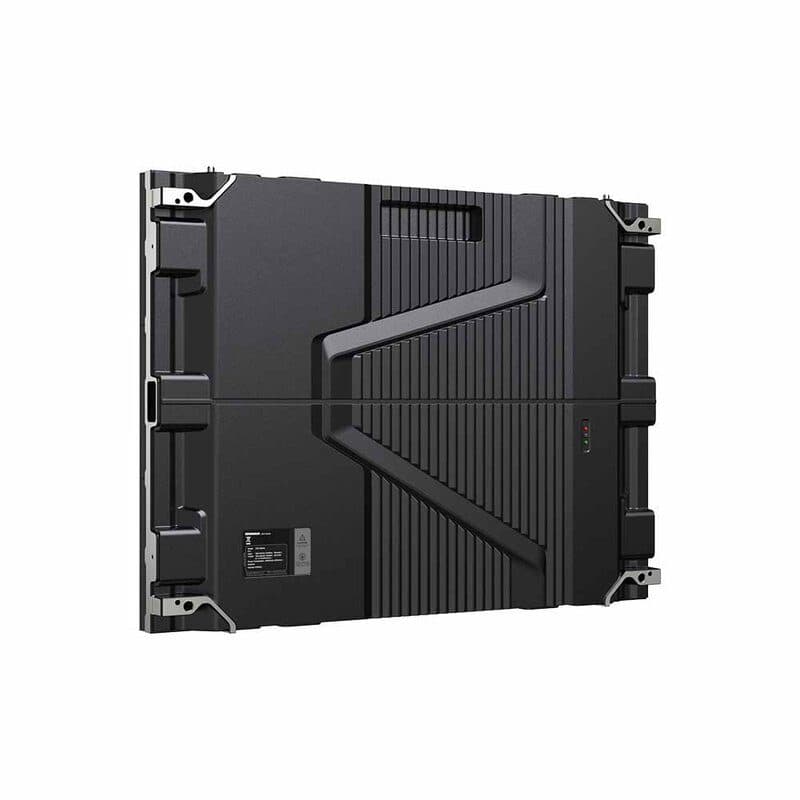

The cabinet measures 640 x 480 x 61.5 mm and weighs 7.8 kg, making it relatively light for its size and easy to install. The six modules are held by magnets without a physical locating stop; their ability to slide slightly over the metal makes accurate alignment much easier. The aluminium frame can be used freestanding or mounted from the rear on a flat wall. Different configurations and flatness adjustments allow a perfectly level surface to be achieved. All required mechanical parts are included, and maintenance is fully accessible from the front.

The display uses SMD 2121 LEDs with a maximum brightness of 600 nits and a 5000:1 contrast ratio for vivid colours. The 14-bit grayscale and 4200 Hz refresh rate support smooth reproduction, reducing flicker and improving image quality. Advanced heat dissipation supports a maximum consumption of 110 W per panel and an average consumption of 33 W. The energy-conservation technology also reduces power consumption by 30%, supporting system stability and service life.

EASYHP-P2.5 is suitable for commercial and professional applications that require a reliable display with strong visual performance and simplified maintenance. The 4200 Hz refresh rate provides smooth, flicker-free viewing, while flatness adjustment keeps the surface even. The stated average lifespan is 100,000 h.

Areas of use include retail spaces such as shops and showrooms, indoor commercial applications, corporate environments with meeting rooms, television studios, trade fairs and conferences, as well as permanent installations in museums and similar settings.
