LED panel P2.5 cabinet 250x500mm modular - EGO DISPLAY LED-EASYFLEX-P2.5-25X50

The EGO Display EasyFLEX P2.5-25x50 is a P2.5 LED panel designed for professional and commercial installations. It provides a technical solution for many installation types, especially where a custom-fit arrangement is required. The cabinet and modules can be freely rotated without colour alterations, supporting both horizontal and vertical layouts according to the project.

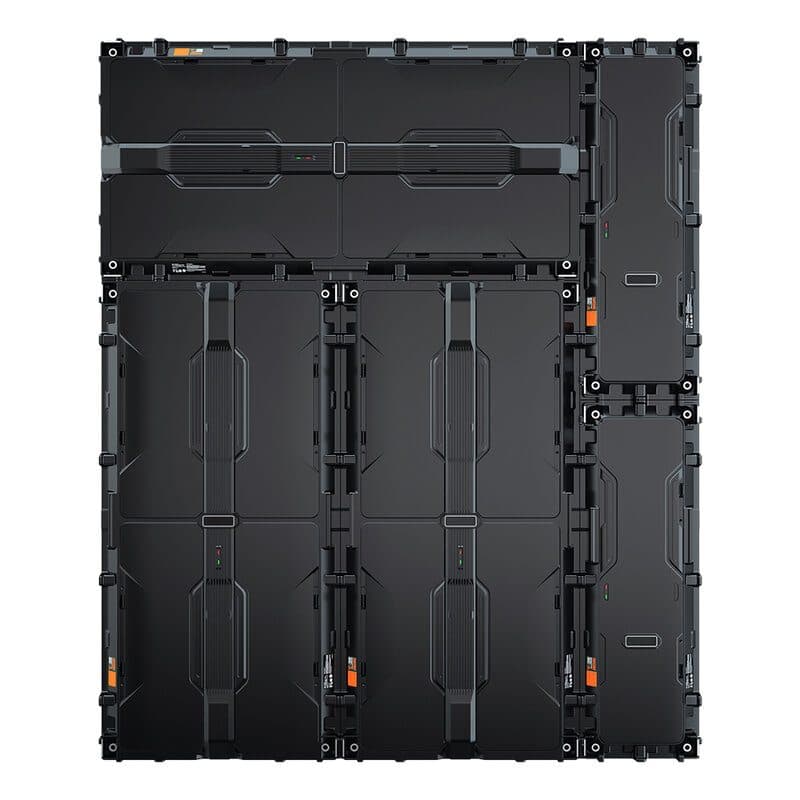

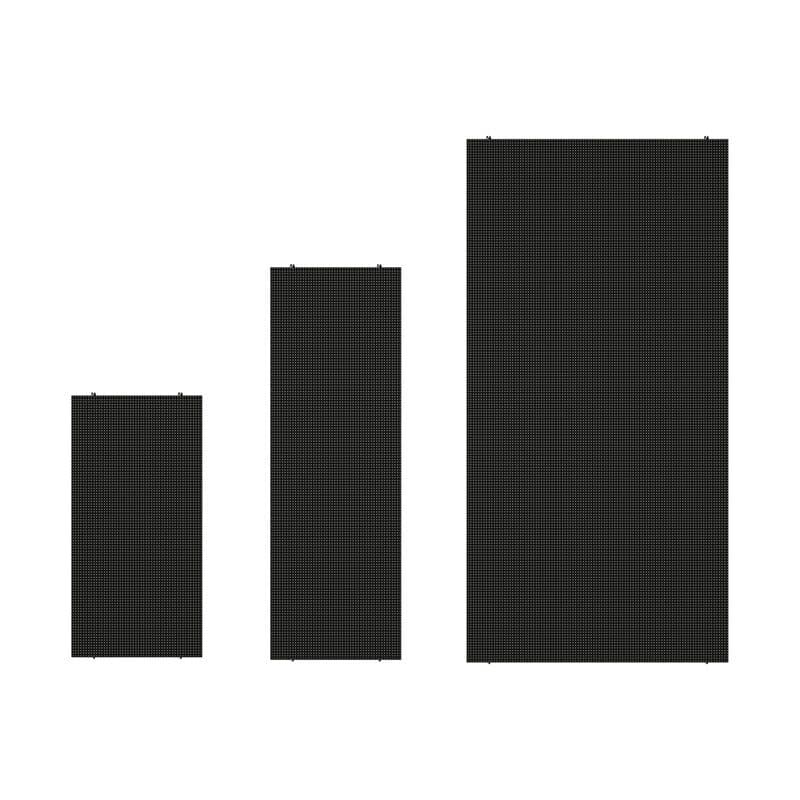

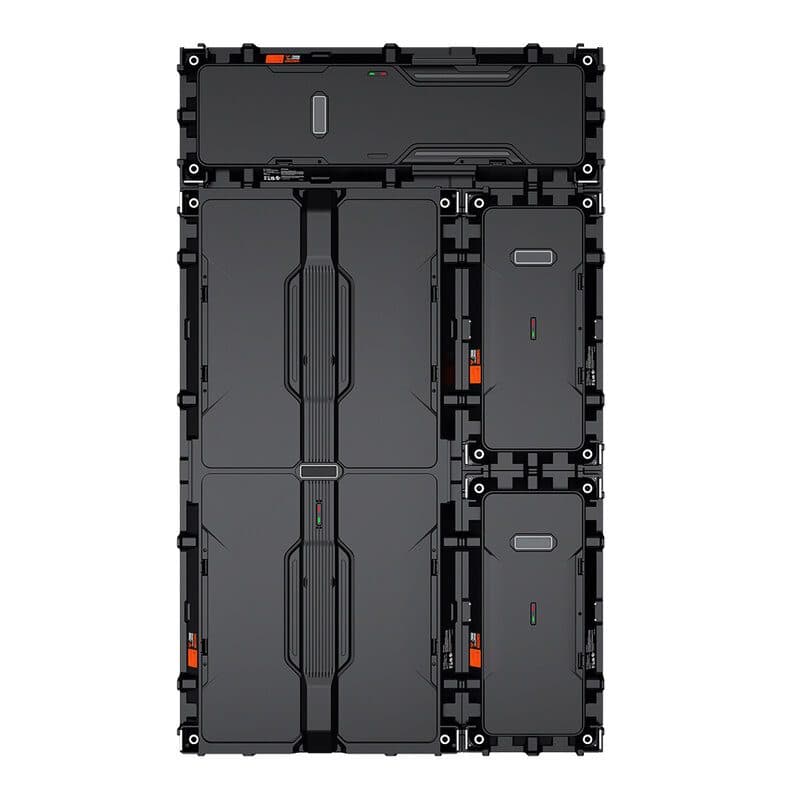

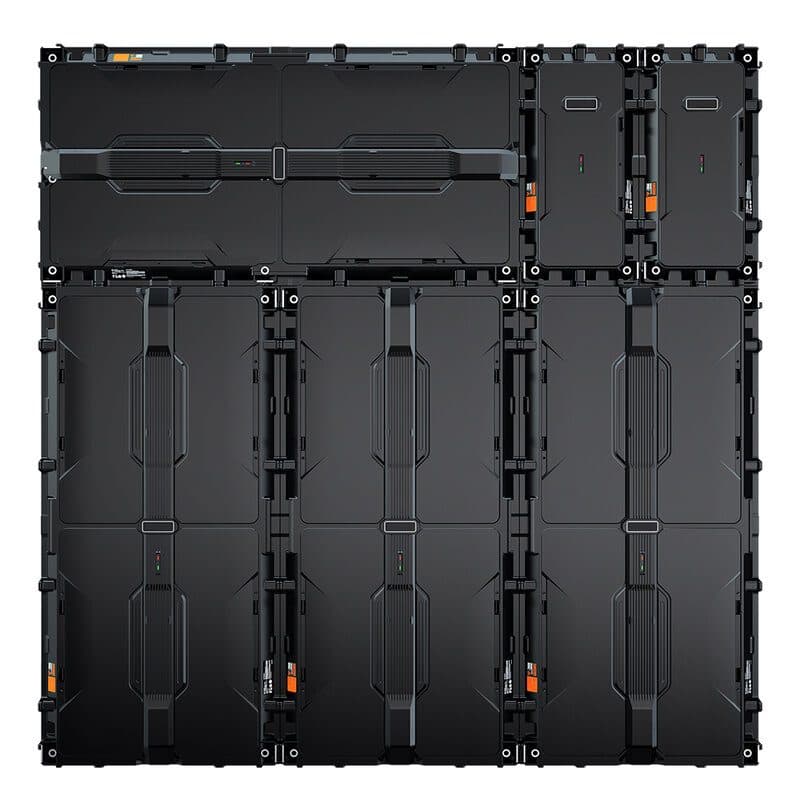

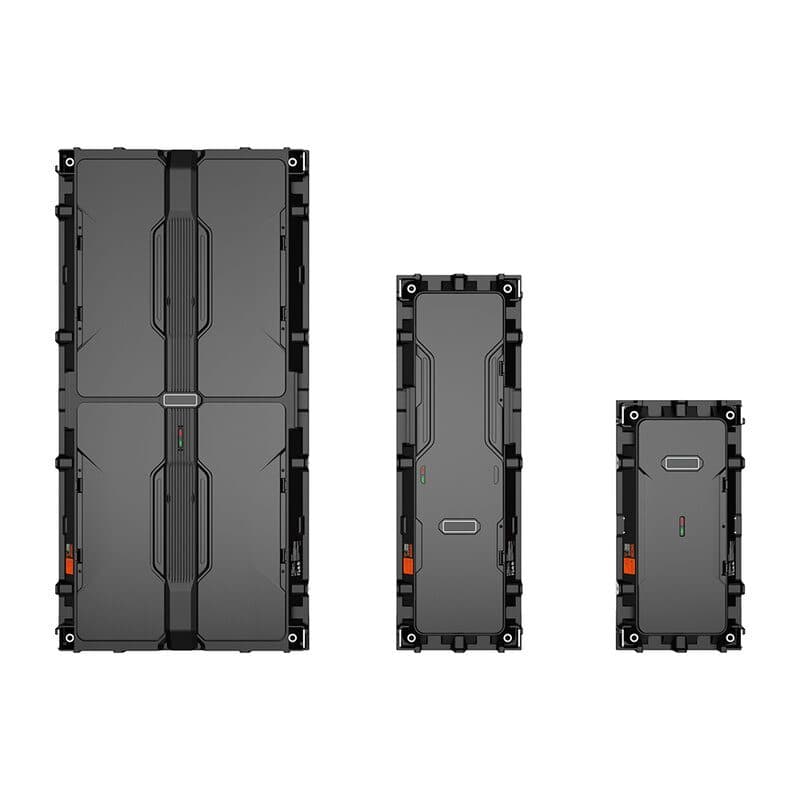

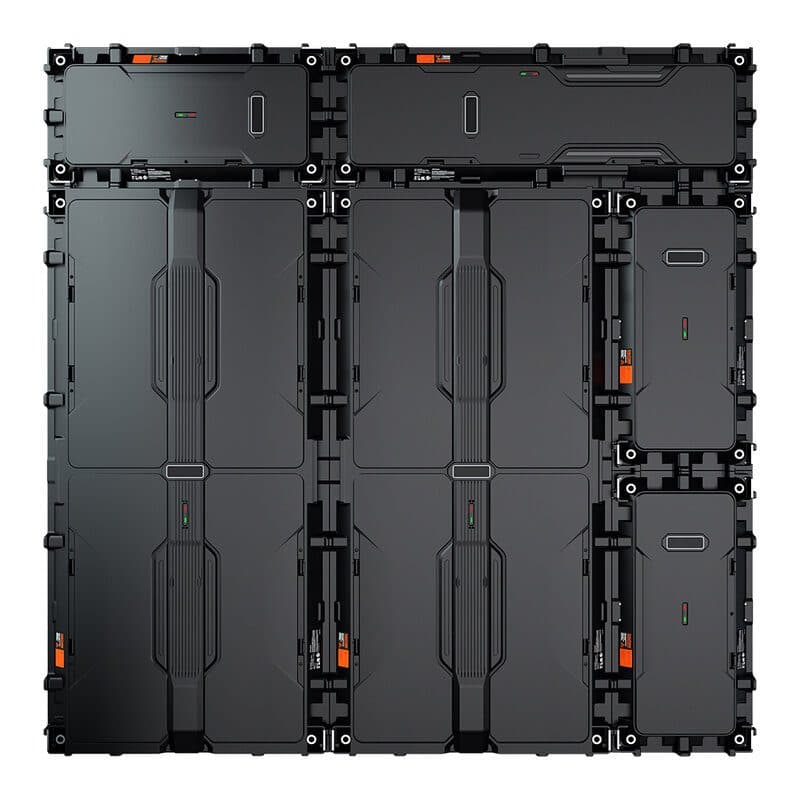

The mounting mechanisms are identical on the top and sides of the cabinet. By rotating and placing cabinets side by side, geometric shapes can be created and empty spaces filled. Each module has a dual rear connection rotated by 90°, keeping the correct orientation regardless of cabinet rotation. This makes it possible to build LED walls in 25 cm steps horizontally and vertically, using the other two available cabinets of the same type. Arrangements that would normally require a custom design, with additional costs and longer delivery times, can therefore be achieved with EasyFLEX. The cabinet format is 250 x 500 mm.

The structure includes a rigid connection between modules and a compact design combining the receiver board and hub. The plug-in power system simplifies installation and maintenance, while 90° assembly angles expand the available configurations. The display supports full front maintenance, enabling rapid interventions and reducing downtime. Dust protection contributes to longer service life and helps maintain performance in demanding environments.

The panel can be permanently mounted on a structure or wall, placed directly on the floor or suspended. It supports creative shapes and greater design freedom; rotatable modules and cabinets provide flexible arrangements with up to 20 types of mixed joints. The rigid module connection improves signal stability and enables quick disassembly. No cables are visible on the rear of the cabinet. Further features include the compact design with combined receiver board and hub, plug-in power, front and rear maintenance, screw-on protective covers that are tamper-proof, and dust protection. A high-brightness option is available for semi-outdoor use up to 3500 nits.

Specified applications include shopping malls, shops including locations where people pass behind the display, airports, subway stations, trade fairs, and radio and television broadcasts.
