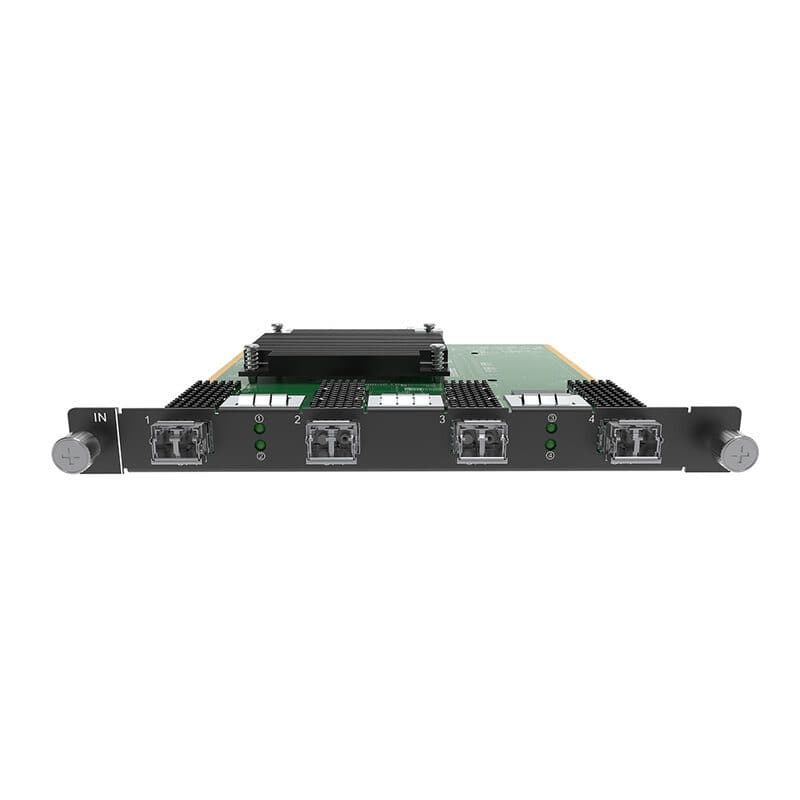

Fiber input card 4x OPT 10G series H - Novastar NOV-M09090054

4 x OPT 10G input card. Each connector supports a maximum resolution of 4096 x 2160 @ 30 Hz, up to 2 SL inputs or 1 DL input. Supports input mosaic. For use with NovaStar H series. Main features 4 x 10G OPT ports Each connector supports a maximum resolution of 4096 x 2160 @ 30 Hz Up to 2 SL inputs or 1 DL input per connector Supports mosaic input Two input modes: independent and mosaic Supports automatic identification of input source resolution and color space Supports 144 Hz input The optical module supports SFP+ encapsulation. Supported module specifications include the following: Multi-mode optical module: 10G SFP+ SR optical module Single-mode optical module: 10G SFP+ LR optical module No input resolution settings are allowed In standalone mode, only two OPT ports (OPT 1-2 or OPT 3-4) can be used for SL input Status LED: ON: The corresponding port has a signal OFF: The corresponding port has no signal Notes: For the H_4xfiber input card, four 10G SFP+ LR optical modules are included with the card and are already installed in the OPT ports For the H_4xfiber-M input card, four 10G SFP+ SR optical modules are included with the card and are already installed in the OPT ports

Technical characteristics

• Dimensions: 19.3 x 24.71 x 2.11 cm
• Weight: 550 g
