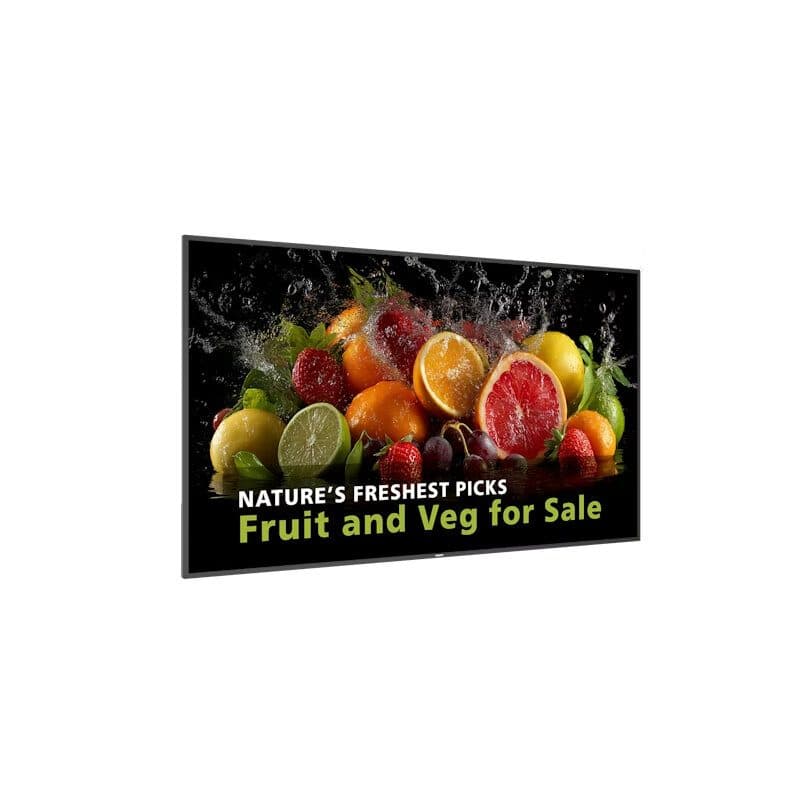

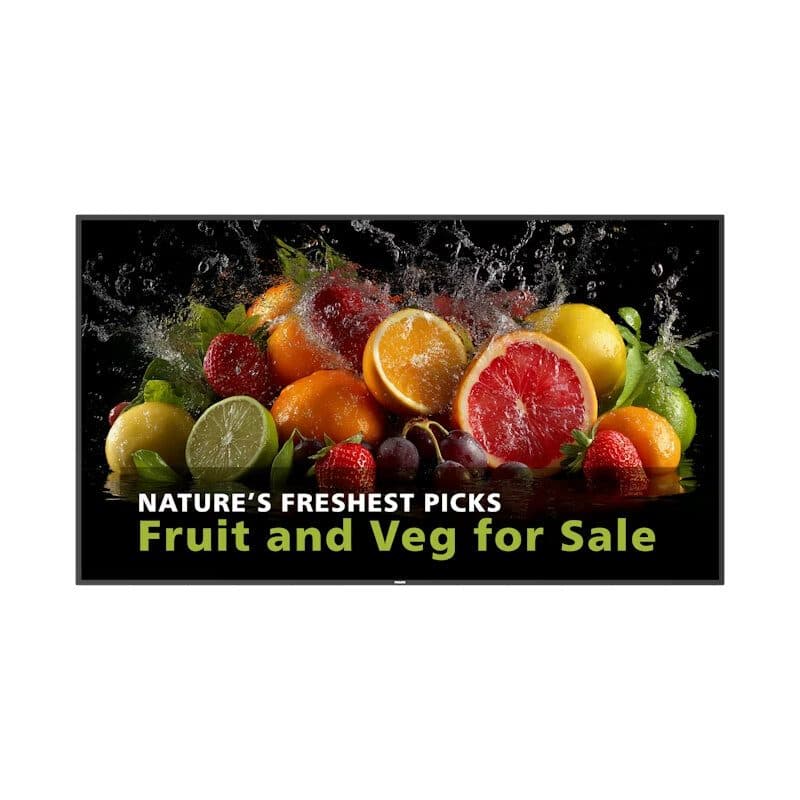

Professional display 86" 4K UHD 600 cd/m² Android 14 24/7 - PPDS PPD-86BDL5050D/00

The 86BDL5050D/00 is a 86" professional display designed to deliver high performance and 24/7 reliability for consistent visual communication. It can be installed in either landscape or portrait orientation. With a brightness of 600 cd/m2, it ensures excellent visibility even in direct sunlight or in brightly lit spaces, while the 4K UHD resolution (3840 x 2160) and dynamic contrast ratio of 500,000:1 ensure visually detailed, impactful images with deep blacks and vibrant colors. Based on Android 14 with professional System on Chip, it allows direct installation of apps and content without the need for external players, offering simplified and secure management. The integrated HTML5 browser, based on Chromium, allows remote control of content via the cloud, while the Philips Wave platform enables complete remote device management, including firmware updates, monitoring, playlists, and the ability to intelligently and automatically manage the device's power consumption. The modular structure It facilitates maintenance and extends product life, reducing waste. In terms of connectivity, the display features HDMI 2.0, DisplayPort 1.4, USB-C, Wi-Fi 6, Bluetooth 5.2, RS232C, IR, RJ45, as well as USB 3.0, micro USB OTG, and 4G/LTE antenna connectors, offering maximum flexibility for integration into any system. The build quality, combined with versatility and intelligent management, makes this model an ideal solution for those seeking a reliable, high-performance, and sustainable display. User benefits 24/7 operation Integrated Android 14 Advanced remote management via the Philips Wave platform Extensive connectivity Horizontal and vertical installation Areas of use Commercial environments Retail Transportation Hospitality

Technical characteristics

Picture / display

• Screen size: 85.6" / 217.4 cm
• Aspect ratio: 16:9
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Pixel pitch:  0.4935 x 0.4935 mm
• Brightness: 600 cd/m²
• Display colours: 1.07 billion
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Viewing angle (H x V): 178° / 178°
• Picture enhancement: motion compensation deinterlacing, dynamic contrast enhancement, progressive scan, 3/2 - 2/2 pull down
• Panel technology: ADS
• Haze: 25%
• Operating aystem: Android 14
• Haze: 25%

Connectivity

• Video input: DisplayPort 1.4, 2 x HDMI 2.0, USB-C (4.5 W)
• Video output: HDMI 2.0
• Audio output: 3.5 mm mini-jack
• Other connections: 4G/LTE antenna connectors, Micro USB (OTG), 2 x USB 3.0
• External control: RJ45, RS232C (IN/OUT) 2.5 mm jack, IR (IN/OUT) 3.5 mm mini-jack, Wi-Fi 6, Bluetooth 5.2 (via CRD32)

Convenience

• Placement: landscape (24/7), portrait (24/7)
• Tiled matrix: up to 10 x 15

• Keyboard control: hidden, lockable
• Signal loop through: DisplayPort, HDMI 1 & 2, RS232, IR Loopthrough, Android SoC
• Energy-saving functions: Smart Power
• Screen-saving functions: pixel shift
• Network controllable: RS232, External 4G mPCIe slot, RJ45

Sound

• Built-in speakers: 2 x 10 W_RMS

Power

• Power supply: 100 - 240 V_AC 50/60 Hz
• Standby power consumption: < 0.5 W
• Energy label class: TBD
• EEI Lot5 power consumption: TBD

Supported display resolution

• Computer formats:

• • 1024 x 768 @ 60 Hz
  • 1280 x 1024 @ 60 Hz
  • 1280 x 720 @ 60 Hz
  • 1440 x 900 @ 60 Hz
  • 1600 x 900 @ 60 Hz
  • 1680 x 1050 @ 60 Hz
  • 1920 x 1080 @ 60 Hz
  • 640 x 480 @ 60 Hz
  • 800 x 600, 60 Hz
• Video formats:
  • 1080p 50/60
  • 1080i 50/60
  • 480p 60
  • 576i 50
  • 576p 50
  • 720p 50/60
  • 480i 60

Operating conditions

• Temperature range (operation): 0 to 40 °C
• Temperature range (storage): -20 to 60 °C
• Humidity range (operation): 20 to 80% RH (non-condensing)
• Humidity range (storage): 5 to 95% RH (non-condensing)
• Altitude: 0 - 3000 m

Multimedia applications

• USB playback video: MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9, WEBM
• USB playback picture: BMP, JPEG, PNG
• USB playback audio: AAC, HEAAC, MPEG

Miscellaneous

• On-screen display languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

Internal player

• CPU: 4 x A72 + 4 x A53 RK3576 + MT9800
• GPU: ARM Mali-G52 MC3
• Memory: 4 GB DDR
• Storage: 32 GB

Regulatory approvals

• Certifications: CE, FCC Class A, CB, BSMI, ETL

Dimensions

• Set dimensions (W x H x D): 1929 x 1100 x 91.8 (D@Handle) / 69.5 (D@Wall mount) mm
• Set weight: 48.31 kg
• VESA mount: 600 × 400 mm, M8
• Bezel width: 15.5 mm (even bezel)

What's in the box

• 85BDL5050D/00
• RS232 daisy-chain cable
• Philips logo
• AC switch cover
• USB cover
• Screws
• AC power cord
• IR sensor cable (1.8 m)
• Quick start guide
• Remote control and AAA batteries
• RS232 cable
• CRD32 Wi-Fi and BT module
