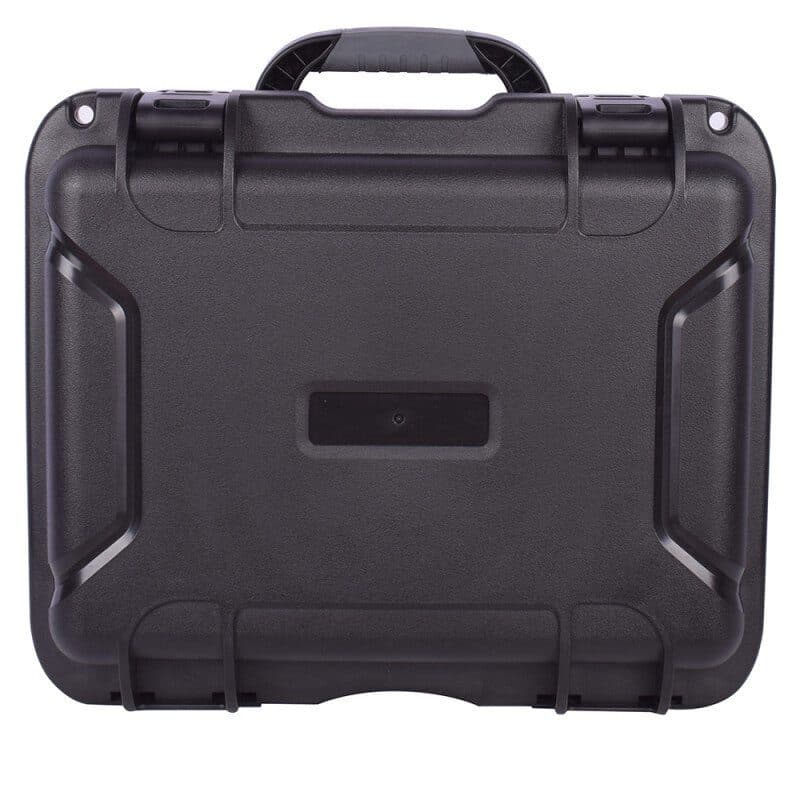

Mixer 8-channel powered DSP USB Bluetooth flight case - LONE AUDIO RON-02707

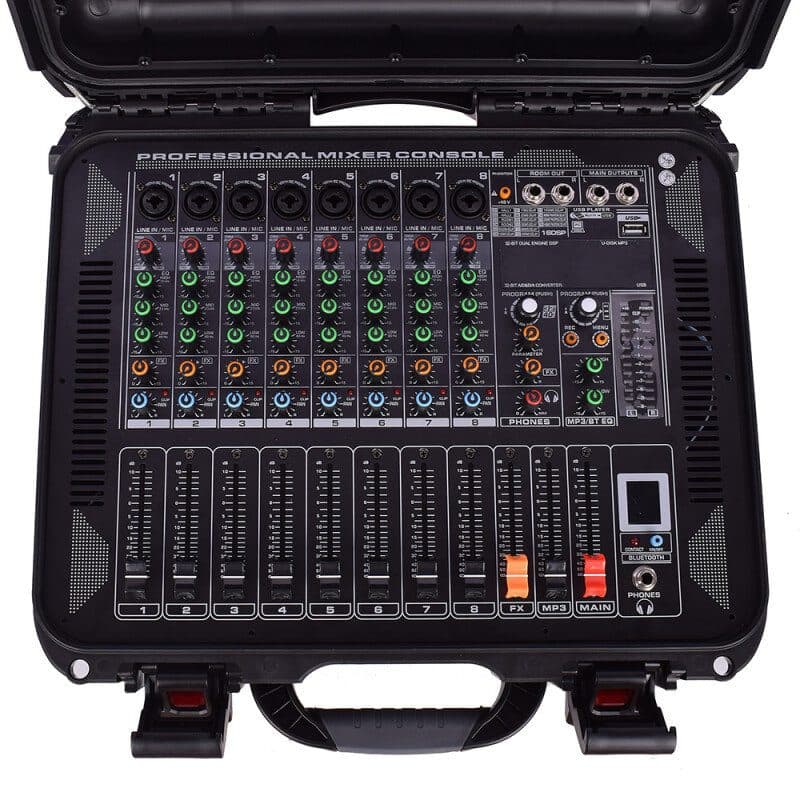

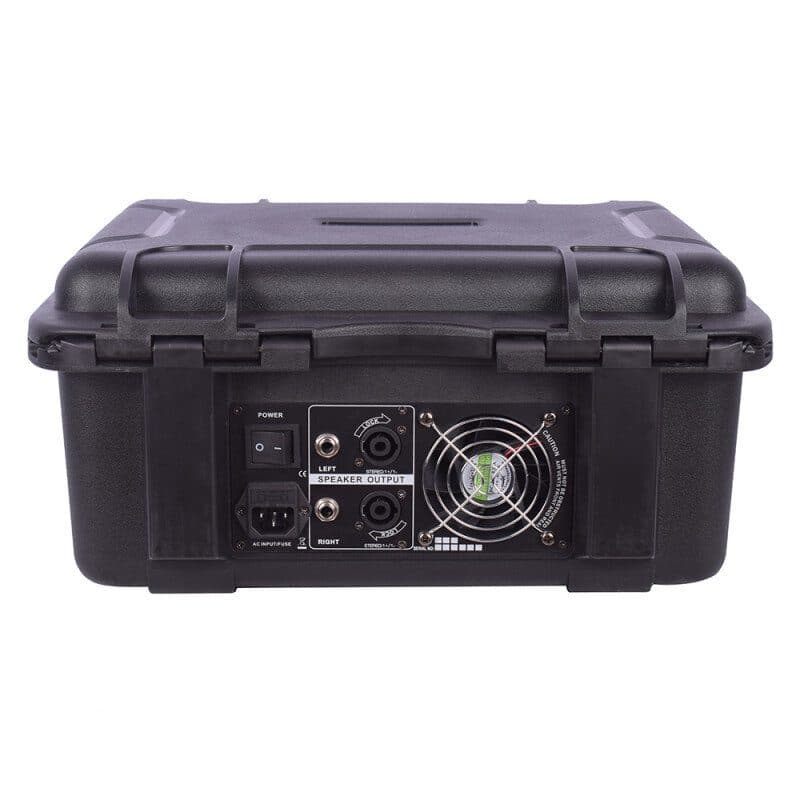

Professional 8-channel mono amplified mixer with DSP, USB and Bluetooth, supplied in flight case. It is equipped with 8 balanced MIC / line Combo inputs, a stereo main output on 2 x 6.35 mm balanced jacks and a control room output on stereo on 2 x 6.35 mm balanced jacks. 48 V Phantom power for MIC channels with ON/OFF switch. Features 3-band EQ, CLIP indicator, trim, FX and Pan-Pot for each channel, with linear faders. Media player from USB stick, 32-bit DSP with 16 effects, bass/treble tone control for MP3 sources, FX fader, and MP3 (as well as MAIN).The headphone output is on 6.35 mm jack. On the back, there are the speakON and 6.35 mm jack speaker outputs already amplified, since the mixer includes an amplification stage.

Technical characteristics

• Power supply: 220 V_AC mains
• Mono inputs:
  • MIC / line: 1.5 kohm symmetrical XLR
  • Gain adjustment: -10 dB to -60 dB
  • +48 V Phantom power supply
• Stereo inputs:
  • Line: XLR symmetrical / jack 6.35 mm
  • Gain adjustment: -10 dB to -50 dB
  • Max: +22 dB
  • Other inputs: 10 kohm
  • Other outputs: 120 ohm
• Main mix section:
  • Max: +22 dBu unbalanced
  • Aux: OFF to + 10 dB
  • Hum & Noise: < -90 dB @ 20 to 22,000 Hz
  • CH1 and main level: 0 dB
  • Crosstalk channel: < -80 dB @ 0 dB 20 to 22,000 Hz, main level: 0 dB
• Frequency response: 10 Hz – 55 kHz ±3 dB
• Sensitivity range: +20 to -20 dB
• S/N ratio: > 90 dB
• Total harmonic distortion: < 0,01 %
• DSP mode:
  • Pre-recorded effects
  • Hall, vocal...
  • A/D and D/A converters: 32 bit
• Sampling frequency: 8, 16, 32, 11.023, 22.05, 44.1 and 48 kHz
• Dimensions (W x D x H): 53 x 55 x 32 cm
• Weight: 15 kg
