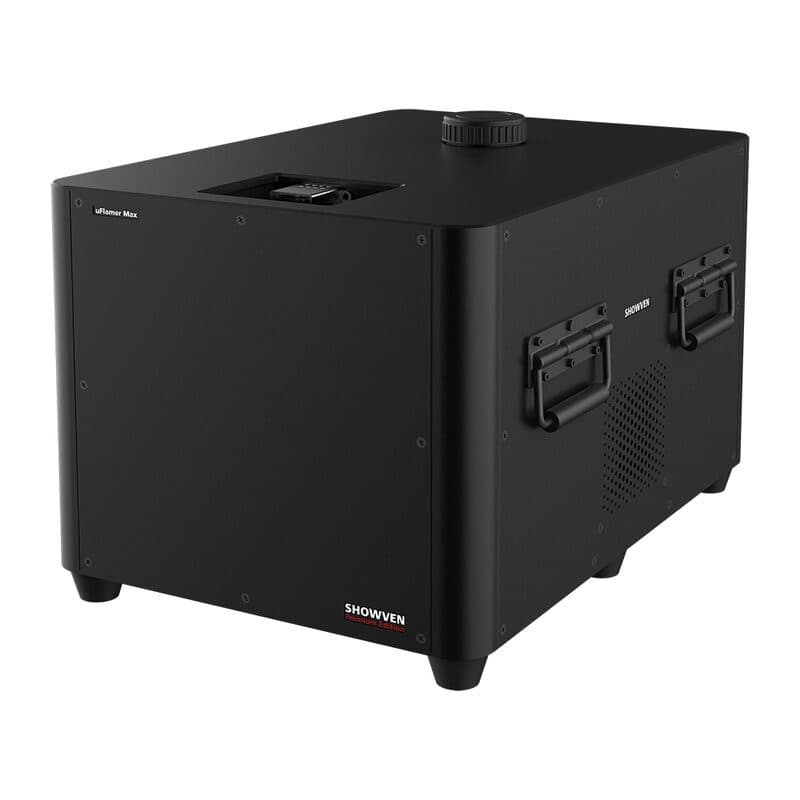

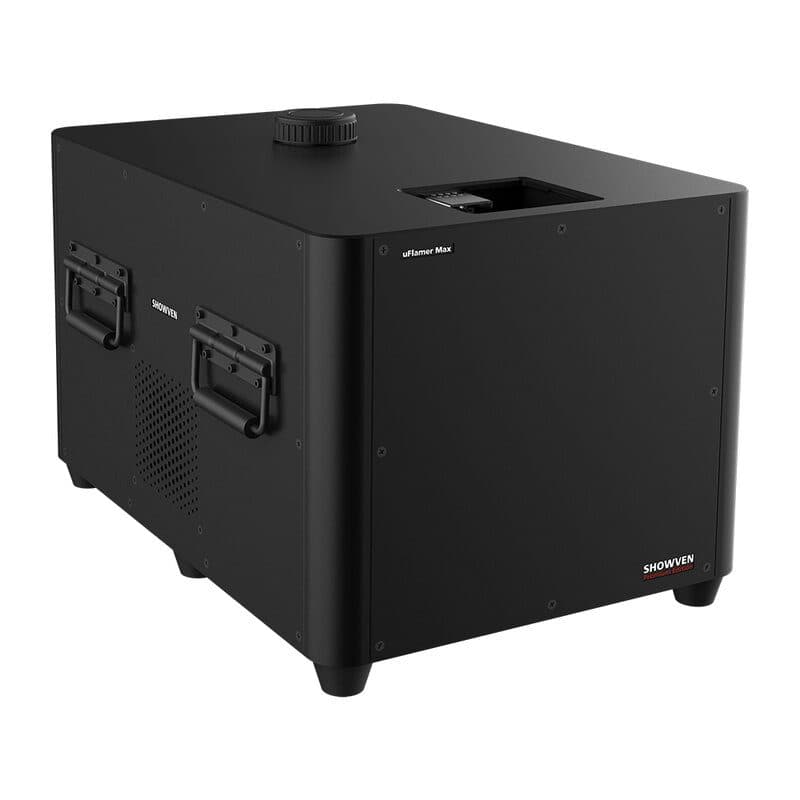

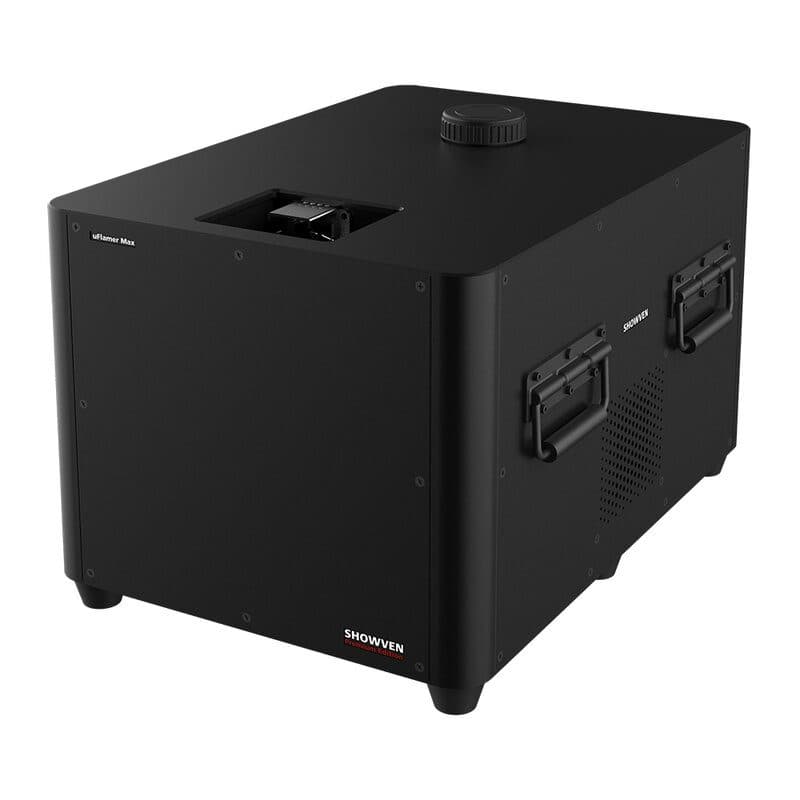

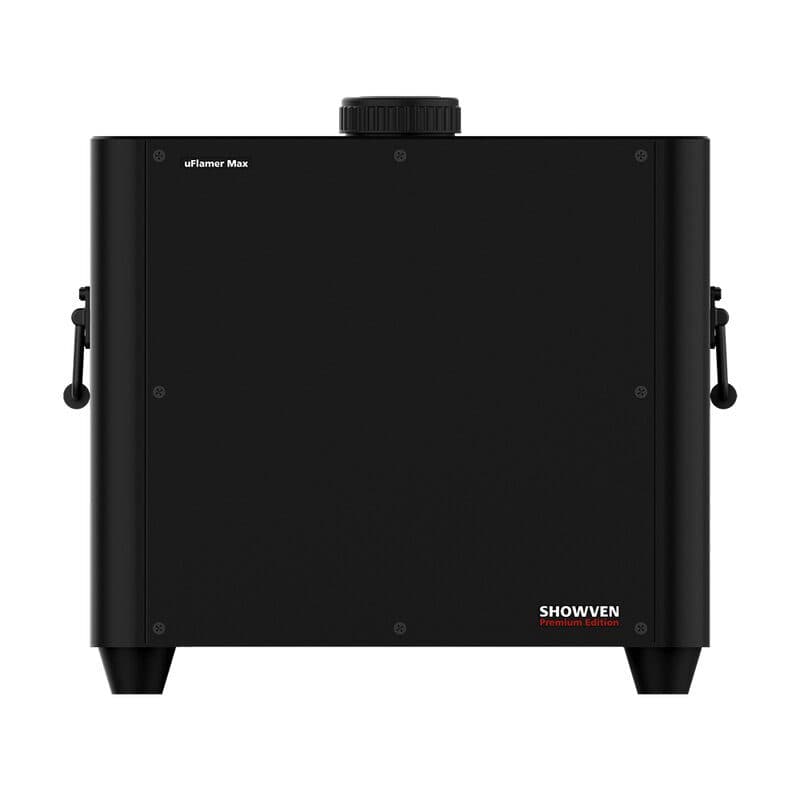

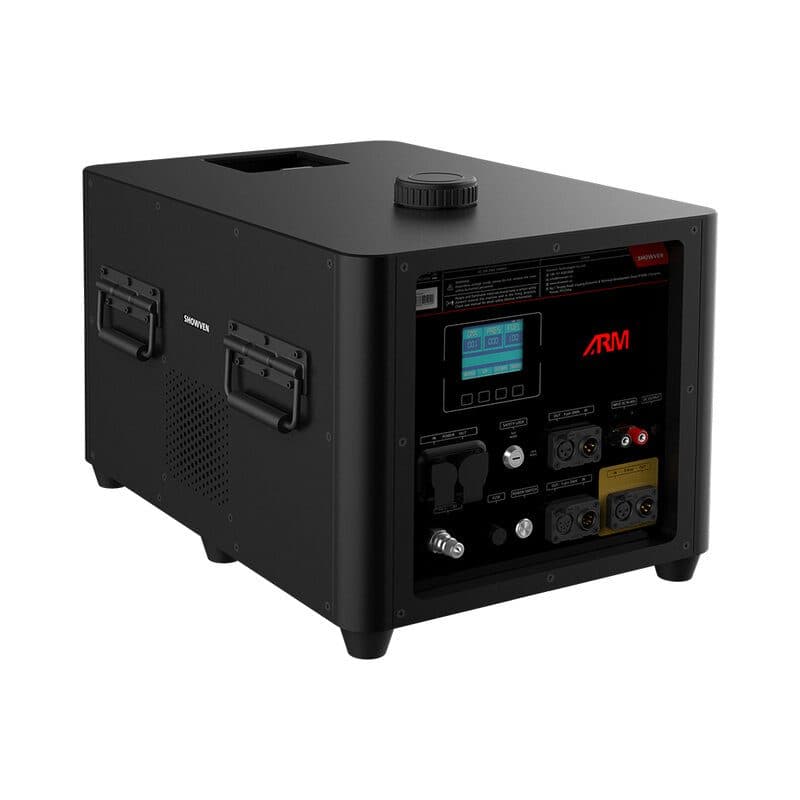

20 m stand-alone Plug & Play flame machine, monitoring - Showven SPK-UFLAMER MAX

The first stand-alone flame machine that can produce flames up to 20 m high! The pump system, integrated fuel tank and flame monitoring function make it unique. In addition, the auxiliary ignition system and triple high-voltage igniters ensure perfect operation. Main features The first stand-alone flame machine with flames up to 20 m high Built-in pump and fuel tank, Plug & Play system Equipped with quick coupling for external fuel input Triple high-voltage igniters Multiple safety configurations: emergency stop connector with cascade power cut, ARM indicator light, safety switch, etc. Flame monitoring function Metal tube structure Compact size

Technical characteristics

• Effect direction: vertical
• Max. flame height (no wind): nozzle XXH: 20 m
• Fuels: Isopar G, H, L, M; Isopropanol
• Housing material: 304 stainless steel
• Fuel tank capacity: 17 L
• Fuel consumption rate: appr. 1 L/s

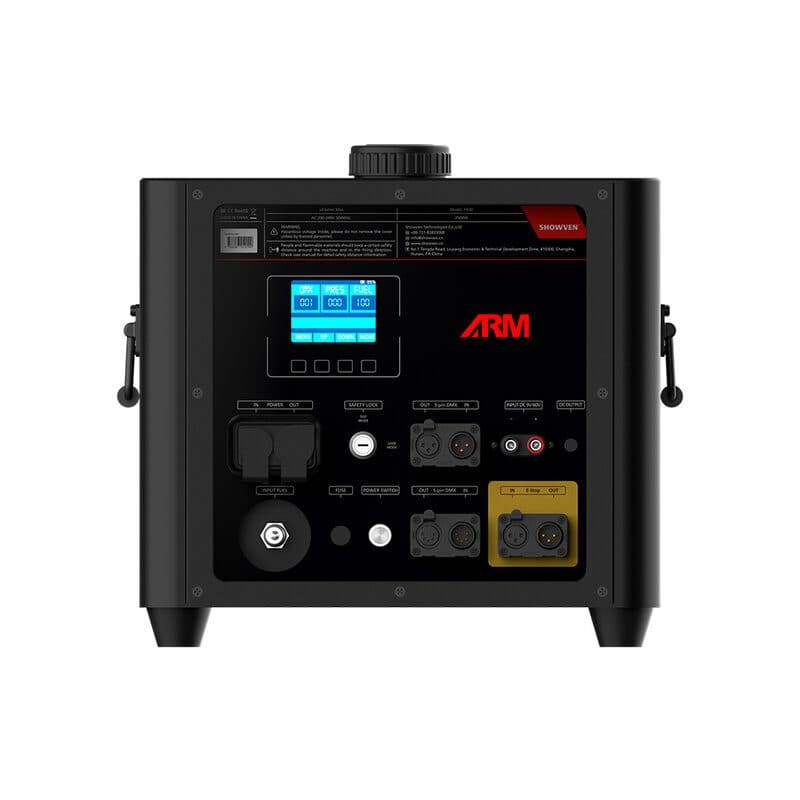

• Interface: Neutrik powerCON TRUE1 IN/OUT; waterproof 3-pin and 5-pin XLR IN/OUT
• Control: DMX, 9 - 60 V pyro signal
• E-stop: yes
• ARM indicator light: yes
• Liquid level sensor: yes
• Ignition: 3 x high voltage electron ignition
• Firing duration: 0.2 - 0.5 s
• Use in rain: yes
• Input and power: 200 - 240 V_AC 50/60 Hz, 2.5 kW
• Dimension: 570 x 425 x 380 mm
  Weight: 60 kg
