LED screen P2.6 MG6S indoor rental 500x500mm 1200 nit - YES TECH YES-P2.6MG6SI21-CW

YES TECH YES-P2.6MG6SI21-CW is a P2.6 MG6S LED screen for indoor use, measuring 500 x 500 mm, with SMD1515 LEDs, copper wire, full-black LEDs and 1200 nit brightness. This new cabinet for creating LED walls is based on a highly industrialised, simple and elegant project. Its modular design optimises cable storage, while the cabinet is stable, safe thanks to a new corner protection system, and convenient. The nano-technological polymer cabinet keeps the weight at 5.9 kg per cabinet.

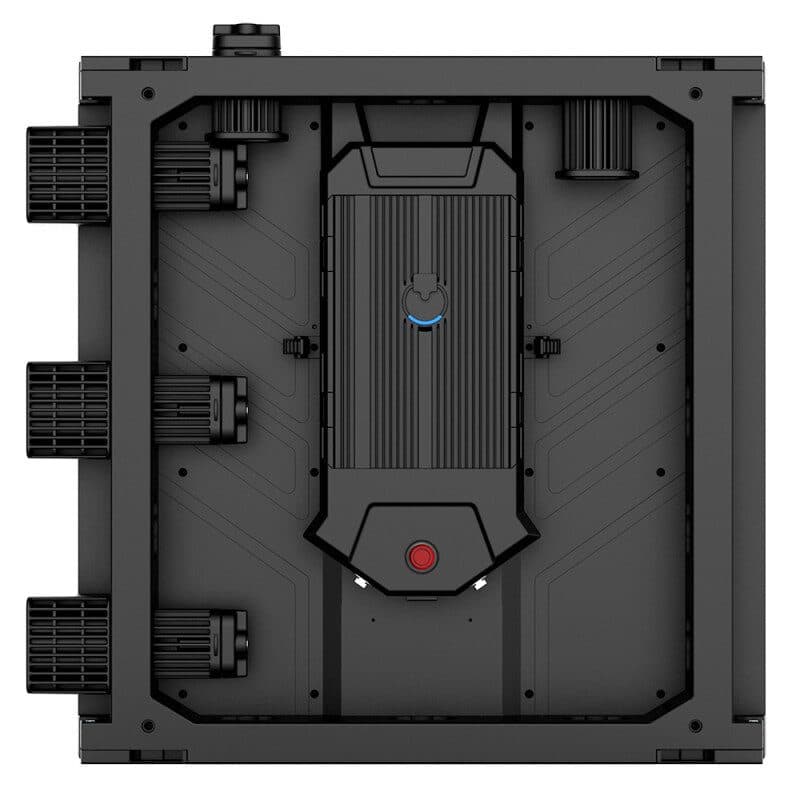

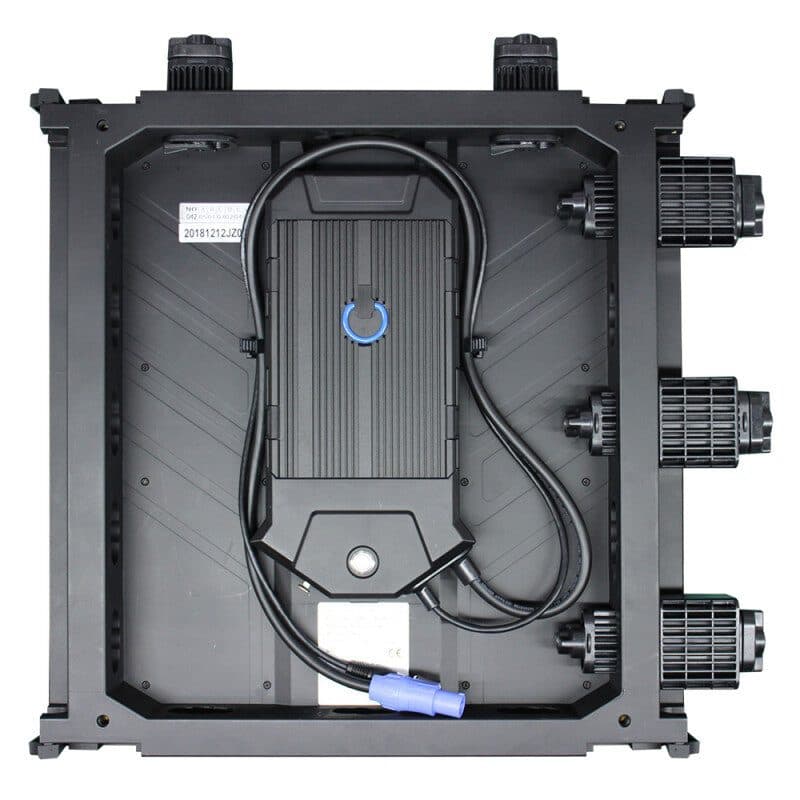

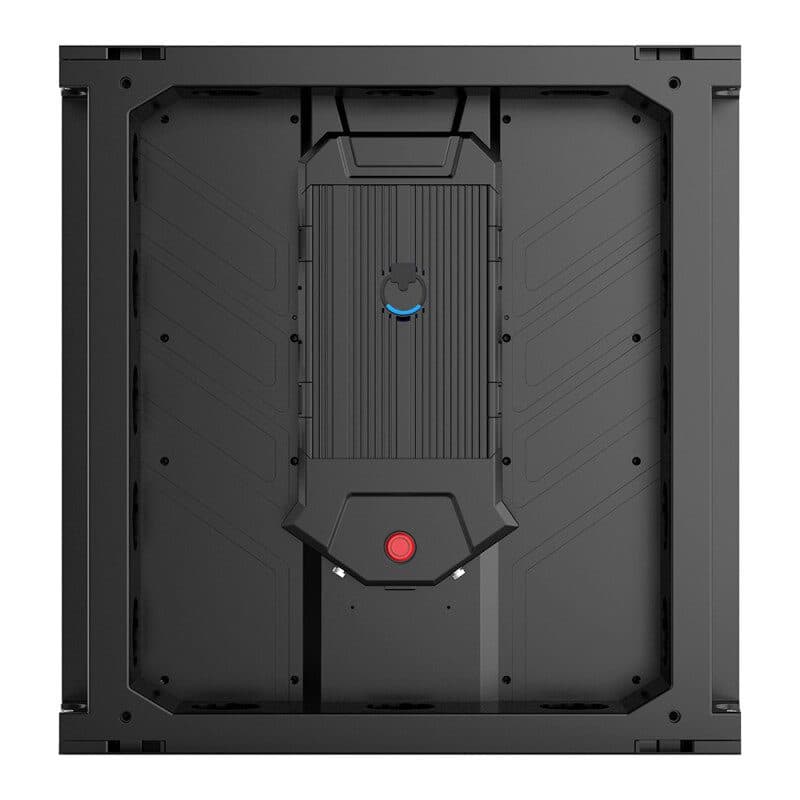

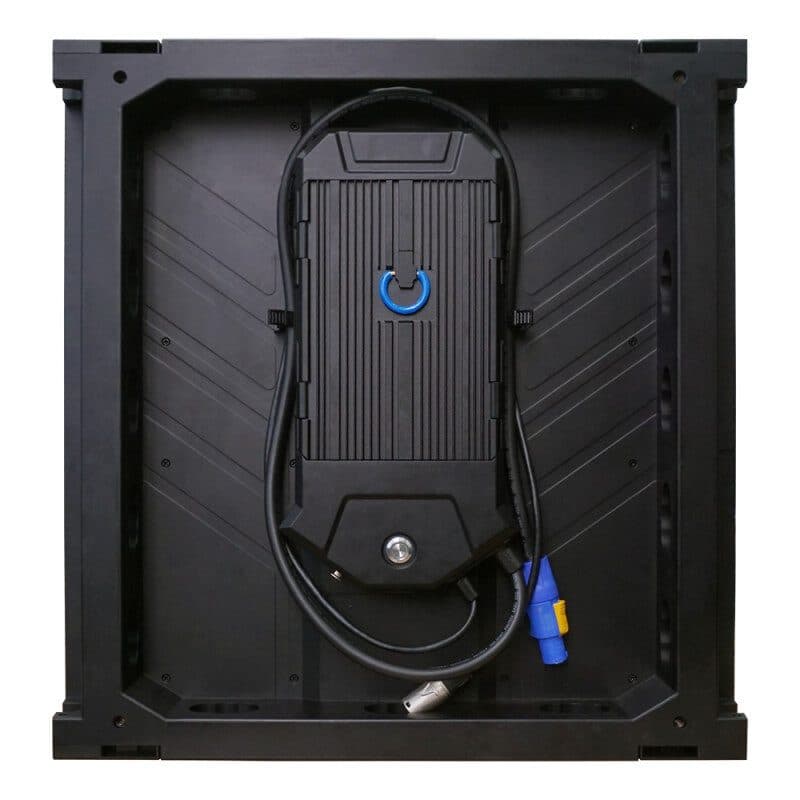

The fully modular design connects the module, driving card, receiving board and power supply via pins. All these components are accessible for front maintenance, while the entire cabinet allows rear maintenance. A buckle secures the back cover and allows it to be quickly removed for faster maintenance. The cabinet is wire-free inside, providing better security and a cleaner layout. The panel is fireproof up to grade V-0.

The P4.8 MG6S supports flash and intelligent module management, as well as double-backup correction data, making debugging safer. Full-black LEDs, high-grey ICs with a high refresh rate and HDR technology bring the grayscale up to 18 bits, significantly improving image quality. The P2.6 MG6S is easy to transport, saves installation time and is particularly suitable for rental. When used as a sky curtain, its reduced weight makes installation easier and safer.

The cabinet structure and connector have a unique design; two-in-one and curved connectors are both available. This solution allows indoor, outdoor, S-shaped and circular LED walls to be created. The multi-hole frame and easy-to-use connectors allow the modules to be moved left and right, front and back, and up and down, for representing letters, numbers, characters and other creative shapes.

User benefits include high image quality, a lightweight and easy-to-transport cabinet, easy and quick maintenance, a reduced operating temperature for the components, the possibility of creating creative shapes and high reliability. Areas of use include indoor concerts, award ceremonies, conferences, indoor sports events and creative installations made possible by creating special shapes.

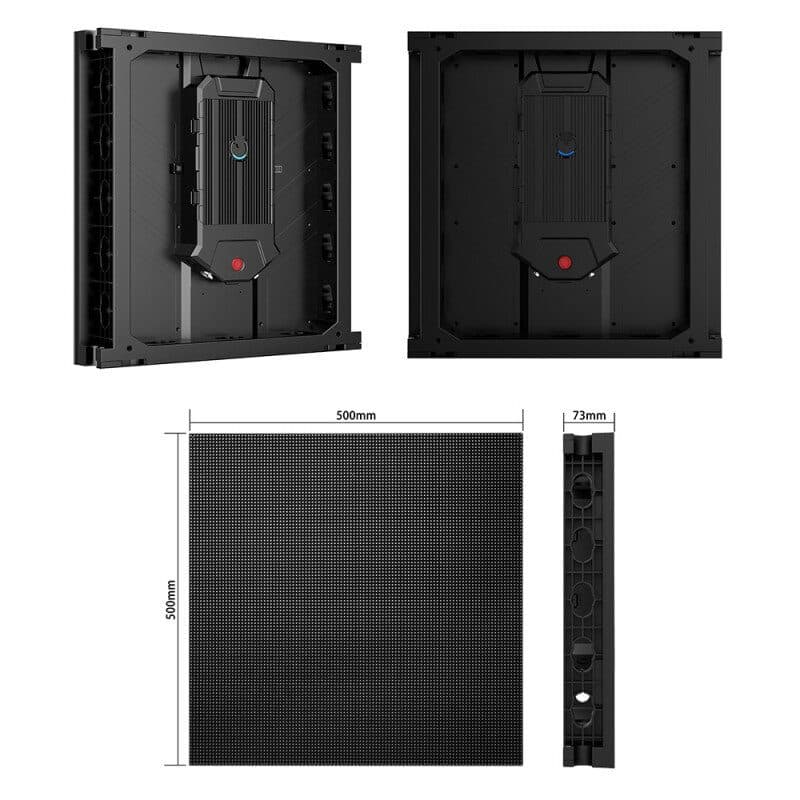

Each module uses LED encapsulation 1515, has a 2.6 mm pixel pitch, a resolution of 96 x 96 and dimensions of 250 x 250 mm. Each cabinet contains 2 x 2 modules; its resolution is 192 x 192, its dimensions are 500 x 500 x 73 mm and its area is 0.25 m². The product description gives a weight of 5.9 kg per cabinet, while the technical data gives 6.7 kg/cabinet. Pixel density is 147,456 dots/m² and the IP grade is IP50.

White-balance brightness is 1200 nit, while colour temperature is adjustable from 6500 to 10,000 K. The horizontal and vertical viewing angles are both 160°. Power consumption is maximum 450 ±15% W/m² and average 150 ±15% W/m²; working voltage is 100–264 V AC at 50/60 Hz.

The driving method is constant drive and the scanning method is 1/24 s. Frame frequency is 50 and 60 Hz, refresh frequency is ≤ 3840 Hz and the control system is Nova Star. Lifespan is 80,000 h. Working temperature is -20 to 45 °C, while storage temperature is -30 to 60 °C. Working and storage humidity are both 10 to 90% RH, with no condensation. Communication is via CAT5.
