Name: Matrice video 20x20 12G-SDI - Blackmagic Design BLM-VHUBSMAS12G2020
Brand: BLACKMAGIC DESIGN
SKU: BLM-VHUBSMAS12G2020
Price: 2543.24 EUR
Availability: OutOfStock

Matrice video 20x20 12G-SDI - Blackmagic Design BLM-VHUBSMAS12G2020

Non disponibileNuovo

SKU BLM-VHUBSMAS12G2020EAN 9338716008364

Prezzo per 1 unità

2543,24 €

2084,63 € + IVA

Matrice video 20x20 12G-SDI a zero latenza in 2 unità rack, con 20 ingressi e 20 uscite, reclocking SDI e controllo Ethernet. Supporta SD, HD e Ultra HD fino al 2160p60, con LCD frontale Full HD per anteprima video e gestione routing.

Descrizione

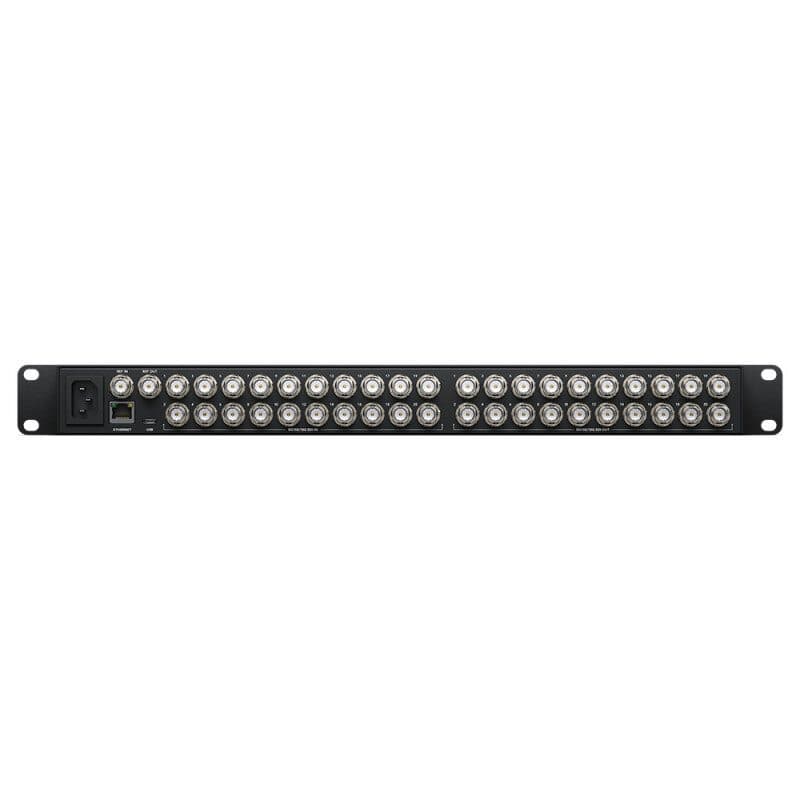

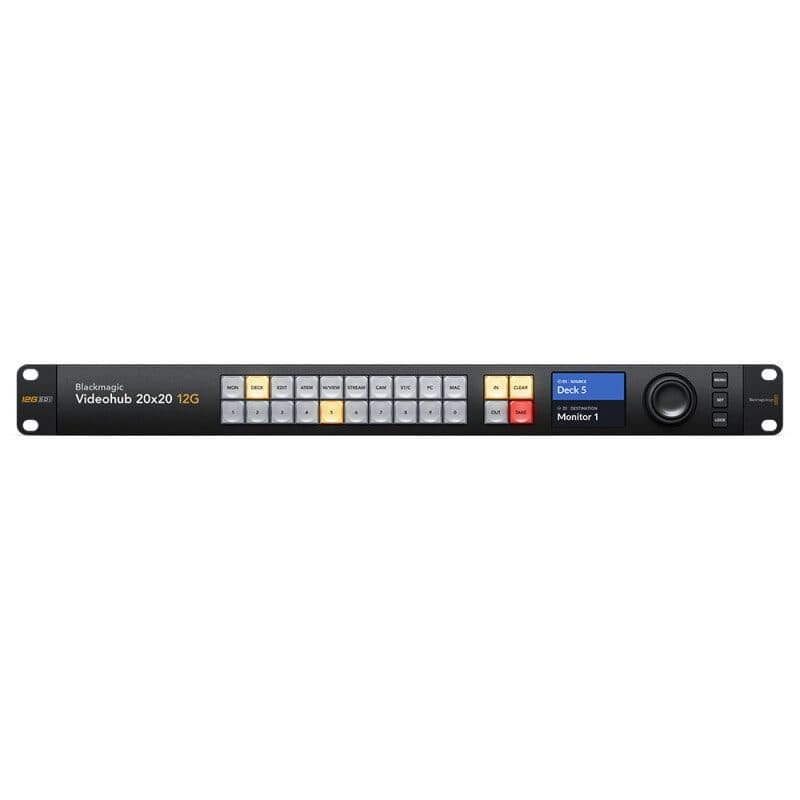

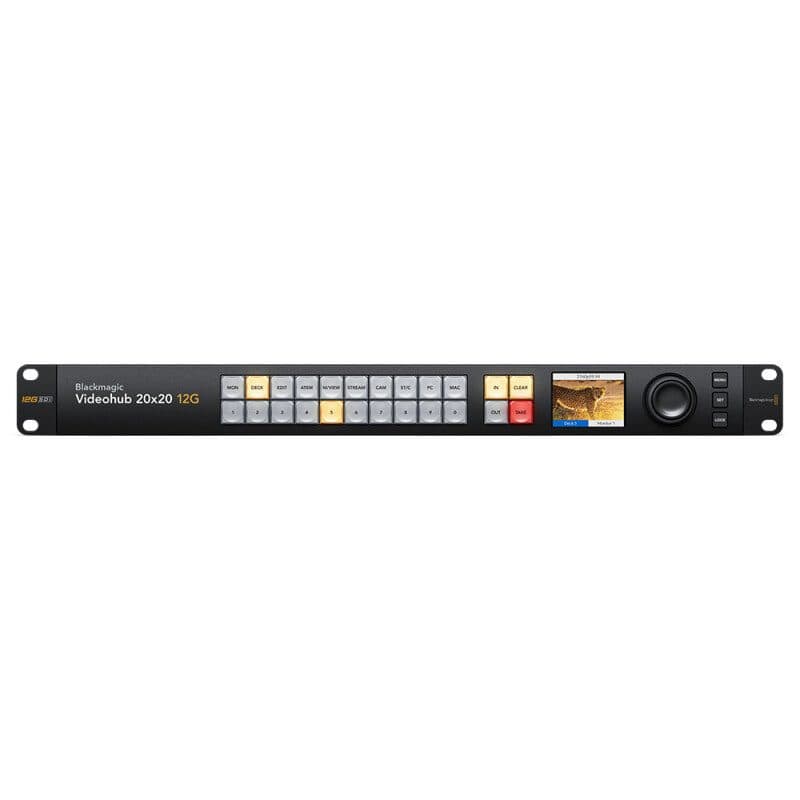

Potente matrice video 20 x 20 12G-SDI a zero latenza, compatibile con qualsiasi combinazione di SD, HD e Ultra HD contemporaneamente. Offre reclocking SDI, controllo esterno tramite Ethernet e supporta tutti gli standard video SDI fino al 2160p 60. Dispone di 20 ingressi e 20 uscite 12G-SDI e connessioni di riferimento racchiusi in un due unità rack. Il pannello LCD frontale Full HD consente di vedere il video prima di instradarlo e mostra chiaramente le etichette e gli standard video. Le operazioni di routing si gestiscono direttamente dai pulsanti di selezione e tramite la grande manopola di controllo con frizione.

Specifiche tecniche

2K video standards	2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
4K video standards	4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI
Built in control panel	24 buttons for local control of Videohub with 3 buttons and search dial for menu control, 2.2" color display
Computer interface	USB‑C
Control panel connection	Ethernet
Dimensions	48.2 x 4.4 x 23.6 cm
Displays	built in 2.2" LCD for video and menu settings
Ethernet	supports 10/100/1000 BASE‑T
External control panel	includes Blackmagic Videohub software control panel for Mac and Windows, supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels, includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol
HD video standards	720p 50, 720p 59.94, 720p 60 - 1080i 50, 1080i 59.94, 1080i 60 - 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60 - 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
Internal software upgrade	via included updater application
Operating temperature	0 to 40 °C
Power fail protection	crosspoint connections preserved and restored instantly at power on
Power supply	1 x internal 100 - 240 V AC 50/60 Hz, IEC power cables required
Power usage	27.5 W max
Reference inputs	tri-sync or black burst
Reference outputs	reference terminating loop output
Relative humidity	0 to 90 % non‑condensing
SD video standards	525i 59.94 NTSC, 625i 50 PAL
