CCU ATEM 4-channel camera control panel - Blackmagic Design BLM-SWPANELCCU4

The Blackmagic Design ATEM Camera Control Panel gives you independent control of up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel.   All traditional broadcast controls are included so a single person can monitor and adjust a wide range of technical parameters such as iris, shutter speed, white balance, master gain, black balance, RGB black and white control and more...   The Camera Control Panel connects via Ethernet to ATEM live production switchers or ATEM hardware control panels. When setting up a setup with multiple ATEM products and the new ATEM Camera Control Panel CCU, you can simply connect all the devices together using an Ethernet cable!   This allows camera operators to focus on the creative aspects of live production such as framing and composition. Unlike traditional CCU controls that have to be mounted into a surface, the ATEM Camera Control Panel is portable so you can put it on your desktop or mount it in a rack. The controls are arranged in a logical and intuitive way, making it perfect for beginners or professionals alike.   Main features   4 professional CCUs in one panel Control 4 cameras at the same time Live color control and correction Broadcast style design with separate displays for each camera Controls for iris, shutter speed, white balance, master gain, black level

Technical characteristics

• Ethernet: 2 x 10/100/1000 BaseT with loop output for additional control panels or computers
• Software updates: 1 x USB-C for firmware updates
• LCD menu displays: 4
• Camera number display: green off air, red on air
• Setup: white and black balance setup
• 3 axis joystick: 4
• Preview button: 4
• Iris control: auto iris ON, coarse control
• Panel active: protects settings
• Software applications: ATEM Software Control Panel
• Operating systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later; Windows 10 and 11
• Input voltage: 1 x internal 100 - 240 V_AC
• DC power: 12 - 30 V 3A
• Redundant power: yes
• Power usage: 30 W
• Operating temperature: 0 to 40° C
• Storage temperature: -20 to 60° C
• Relative humidity: up to 95%

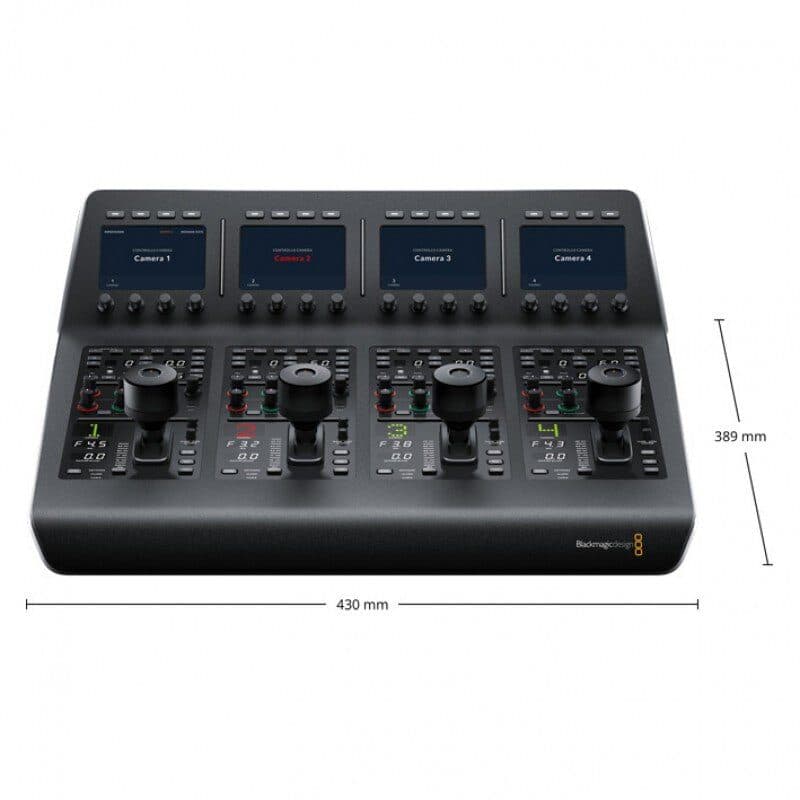

• Dimensions: 43 x 38.9 x 14.17 cm
• Weight: 6,65 kg
