ATEM Mini Pro live video switcher, 4 HDMI inputs - Blackmagic Design BLM-SWATEMMINIBPR

ATEM Mini Pro by Blackmagic Design is the user-friendly solution to work fast and efficiently. It features 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. Plus, it allows direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. You even get a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.

Technical characteristics

Connections

• Total video inputs: 4
• Total outputs: 2
• Total aux outputs: 1
• Total audio inputs: 2 x 3.5 mm stereo mini-jack
• Total audio outputs: none, embedded audio only
• Time Code connection: none
• HDMI video inputs: 4 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
• Video input re-sync: on all 4 HDMI inputs
• Frame rate and format converters: on all 4 HDMI inputs
• HDMI program outputs: 1
• Ethernet: 1 x 10/100/1000 BaseT for live streaming, software control, software updates and panel connection
• Computer interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection

Standards

• HD video input standards: 720 x 480p 50, 720 x 480p 59.94, 720 x 480p 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60
• HD video output standards: 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60
• Video streaming standards: 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60
• Video sampling: 4:2:2 YUV
• Color precision: 10-bit
• Color space: REC 709
• HDMI input resolutions from computers: 1280 x 720p 50, 59.94, 60 Hz; 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz; 1920 x 1080i 50, 59.94, 60 Hz
• Colorspace conversion: hardware based real time

Product specifics

• Upstream keyers: 1
• Downstream keyers: 1
• Advanced chroma keyers: 1
• Linear/luma keyers: 2
• Transition keyer: DVE only
• Total number of layers: 5
• Pattern generators: 1
• Color generators: 2
• DVE with borders and drop shadow: 1
• Interface: minimum monitor resolution of 1366 x 768

Audio

• Audio mixer: 6 input x 2 channel mixer
• Channel control: selectable ON / OFF /Audio-Follow-Video per channel plus separate gain control
• Metering: level and peak metering
• Fairlight enhancements: compressor, gate, limiter, 6 bands of parametric EQ
• Master gain control: yes
• Analog input: unbalanced stereo
• Analog input delay: up to 8 frames
• Input impedance: 1.8 kohm
• Max. input level: +6 dBV
• MIC plug-in power: available on both 3.5 mm mini jack connections

Control

• Control panel: built-in control panel. Software control panel included
• Control panel connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection
• Software updates: via USB or Ethernet

Streaming

• Streaming: direct streaming via Ethernet to YouTube Live, Facebook, Twitch and more
• Streaming inputs: 1 x RJ45 Ethernet
• Streaming formats: RTMP

Recording

• Recording: direct recording to USB flash disks in H.264
• Recording formats: H.264 with AAC audio in .mp4 files
• Recording media: USB flash disks
• Recording inputs: 1 x USB Type-C 3.1 Gen 1

Multiview

• Multiview monitoring: 1 x HDMI output
• Multiview features: 4 camera views, media player, preview and program plus status of recording, streaming and audio

Media

• Media players: 1
• Channels: fill and key
• Still store: 20
• Media formats: PNG, TGA, BMP, GIF, JPEG and TIFF

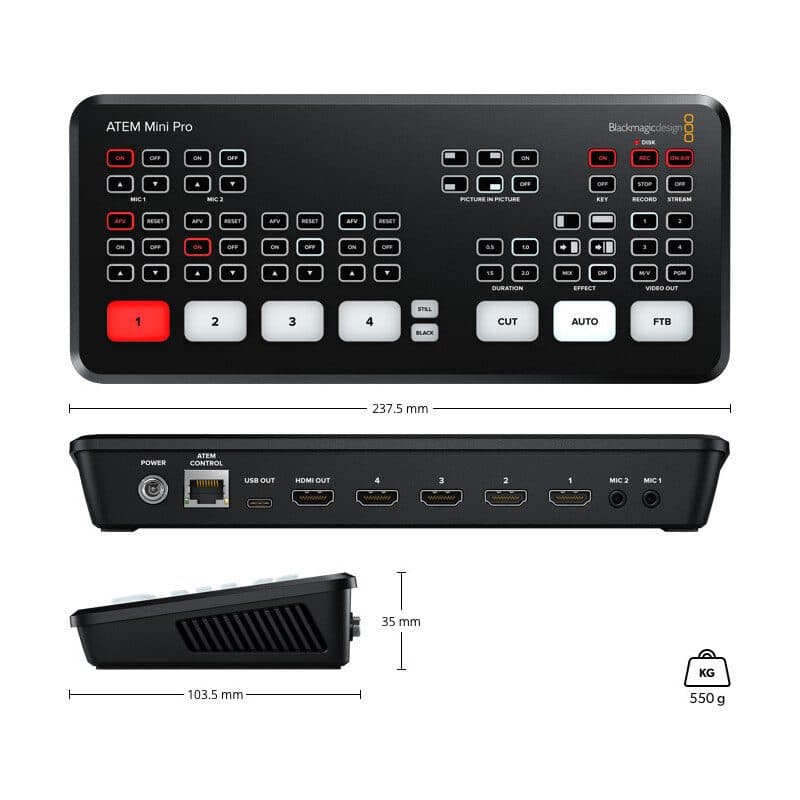

Physical specifications

• Dimensions: 23.75 x 10.35 x 3.5 cm
• Weight: 550 g

What's included

• ATEM Mini Pro
• External 12 V power supply with locking connector and international socket adapters
