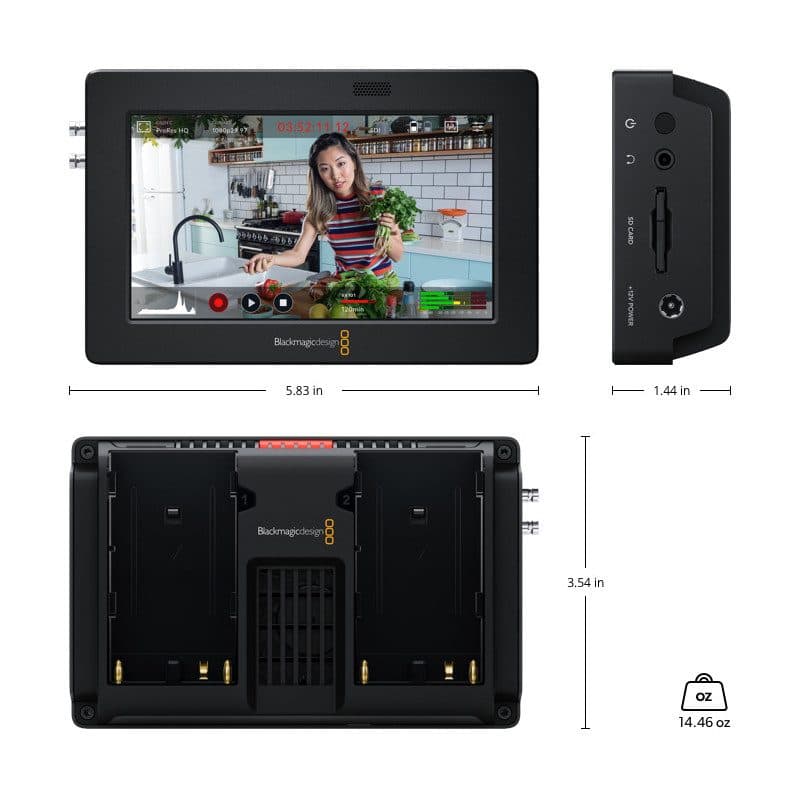

Portable 5-inch 3G SDI HDMI recorder monitor - Blackmagic Design BLM-HYPERD/AVIDA03/5

Video Assist 5" 3G by Blackmagic Design is a portable 5" monitor that really is 4 products in one! It's a professional recorder, a portable scope and a fantastic camera viewfinder solution. The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The Video Assist 5" 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life.

Connections

• SDI Video Inputs: 1 x Micro BNC
• SDI Video Outputs: 1 x Micro BNC
• SDI Rates: 270Mb, 1.5G, 3G
• HDMI Video Inputs: 1
• HDMI Video Outputs: 1
• Analog Audio Inputs: None, embedded audio only.
• Analog Audio Outputs: 1 x 3.5 mm headphone jack.
• Built in Speaker: Mono
• Screen Dimensions: 5 inch 1920 x 1080.
• Screen Brightness: 300nits
• SDI Audio Inputs: 16 channels embedded via SDI
• SDI Audio Outputs: 16 channels embedded via SDI
• HDMI Audio Inputs: 8 channels embedded via HDMI
• HDMI Audio Outputs: 8 channels embedded via HDMI
• Remote Control: None
• SD Interface: 1 x UHS-I SD slot.
• Storage Type: SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
• Computer Interface: 1 x USB Type‑C for initial setup, software updates and Video Assist Utility software control.
