Monitor touchscreen HDR 5" 1500 nit PYXIS - Blackmagic Design BLM-CINEURSABB/AM

The Blackmagic PYXIS Monitor is a 5" HDR touchscreen monitor designed to offer complete camera control, even in the most complex setups. With its ultra-bright 1500-nit display, you can easily monitor your shots even in direct sunlight. The removable sunshade protects the monitor and enhances visibility in bright lighting conditions. This monitor is the ideal solution when internal camera screens are obstructed by accessories or rigging configurations. Versatility and ease of use The Blackmagic PYXIS Monitor connects easily to your camera with a single USB-C cable that provides power, video transmission, and full camera control. The built-in accelerometer automatically rotates the image when the monitor is mounted upside down, ensuring the correct framing every time. Compatibility Compatible with a range of Blackmagic cameras, including: Blackmagic PYXIS 6K (PL, EF) Blackmagic URSA Cine 12K LF and Cine 17K 65 Users benefits Ultra-bright screen: with 1500 nits of brightness, your shots are always clearly visible, even in direct sunlight Comprehensive controls: every camera parameter, from frame rate to focus, can be managed via the intuitive touchscreen Flexible mounting: multiple mounting points allow for ideal positioning in any shooting scenario Areas of use Film productions Broadcasting Live events Advertising productions

Technical characteristics

• Display size: 5" LCD capacitive touchscreen
• Resolution: Full HD 1920 x 1080 pixel
• Brightness: 1500 nits, ideal for outdoor shooting
• Frame rates: supports up to 60 fps
• Tally light: rear-facing LED tally light
• Accelerometer: automatically rotates the image when mounted upside down

Camera controls

• Monitor overlays
• Frame rate
• Shutter
• Iris
• TimeCcode
• ISO
• White balance
• Tint
• Power
• Record start / stop
• Media
• Audio
• Focus zoom
• Digital slate
• Camera menus

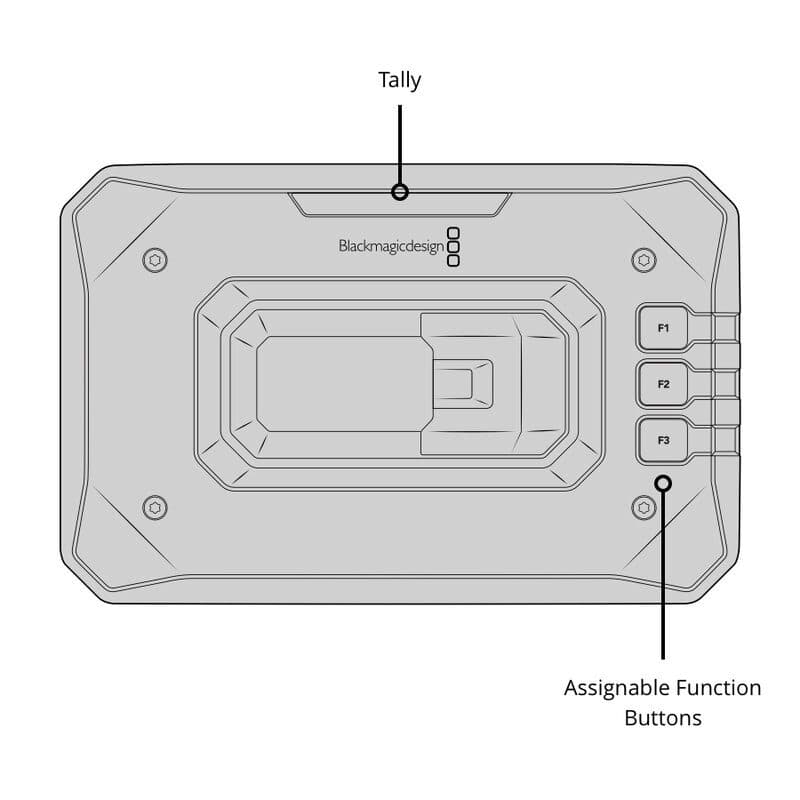

Function buttons

• F1, F2, F3 assignable function buttons
• Toggle functions such as Clean Feed, Status Text, Display LUT, Frame Guides, Focus Assist, False Color, Zebra, Grid, Safe Area Guide, Off-Speed Recording, Focus Zoom, Auto White Balance, Color Bars, Playback, and more

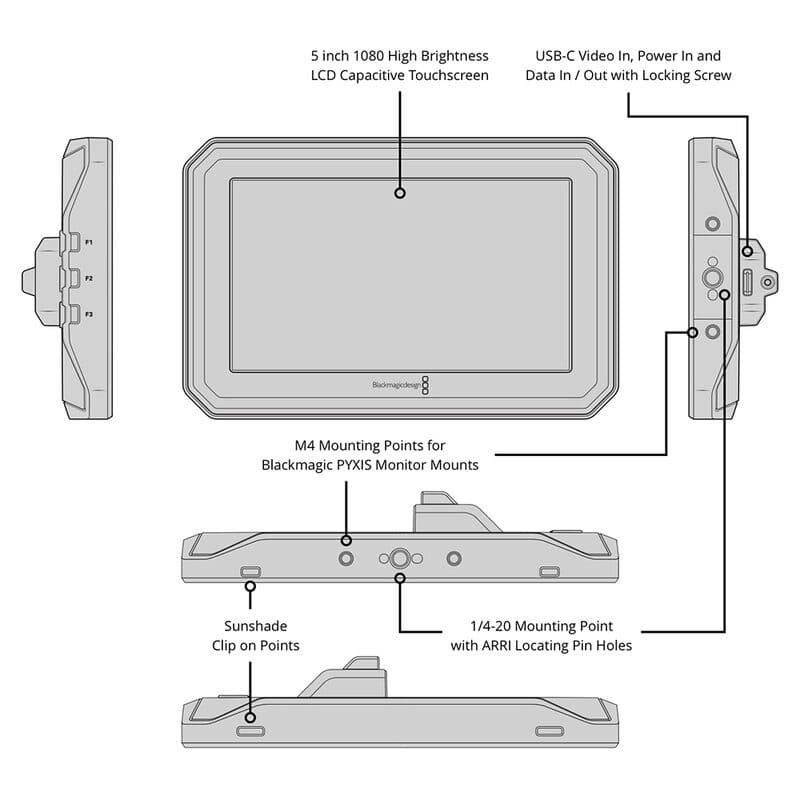

Mounting options

• 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern
• 2 x M4 bottom mounting points
• 1 x 1/4-20 side mounting point with ARRI locating pin pattern
• 2 x M4 side mounting points

Compatible cameras

• Blackmagic PYXIS 6K
• Blackmagic PYXIS 6K PL
• Blackmagic PYXIS 6K EF
• Blackmagic URSA Cine 12K LF
• Blackmagic URSA Cine 17K 65

Power requirements

• Powered via USB-C

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 60 °C
• Relative humidity: 0 to 90% non-condensing
