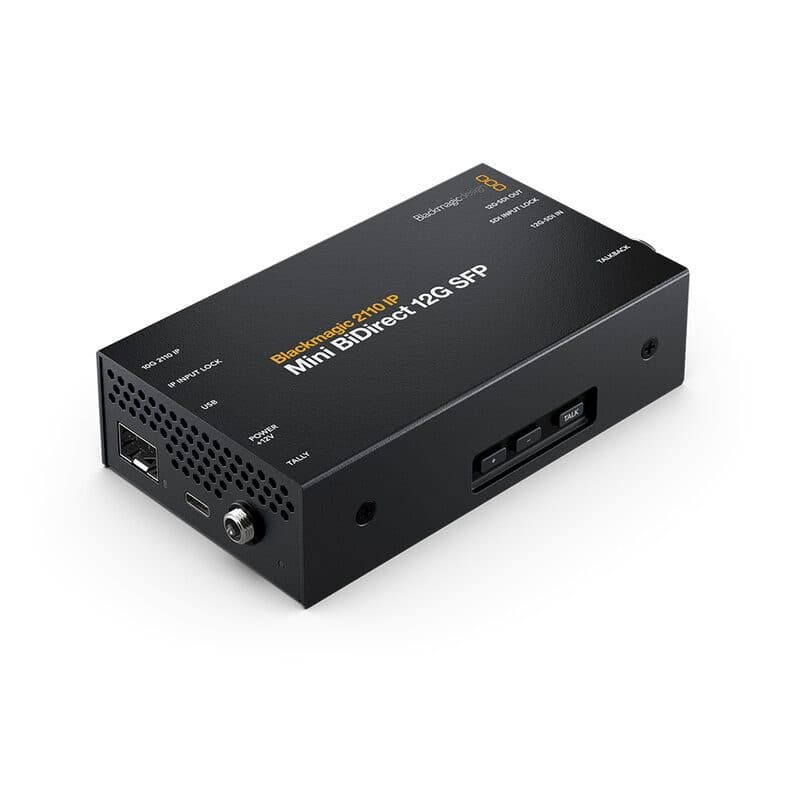

Mini bidirectional 12G-SDI SFP IP 2110 converter - Blackmagic Design BLM-CONVNVIPF/IP/12GSFP

Bidirectional 12G-SDI converter designed to convert signals from SDI broadcast cameras to SMPTE-2110 IP over long distances using optical fiber and to manage SDI camera signals and SDI program return with a single device! The SFP port accepts 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p 60. It also features a 5-pin XLR headphone connection for talkback allowing two-way communication between the director and on-set crew, with control of the volume and "Push to talk" button. DC power supply included.

Technical characteristics

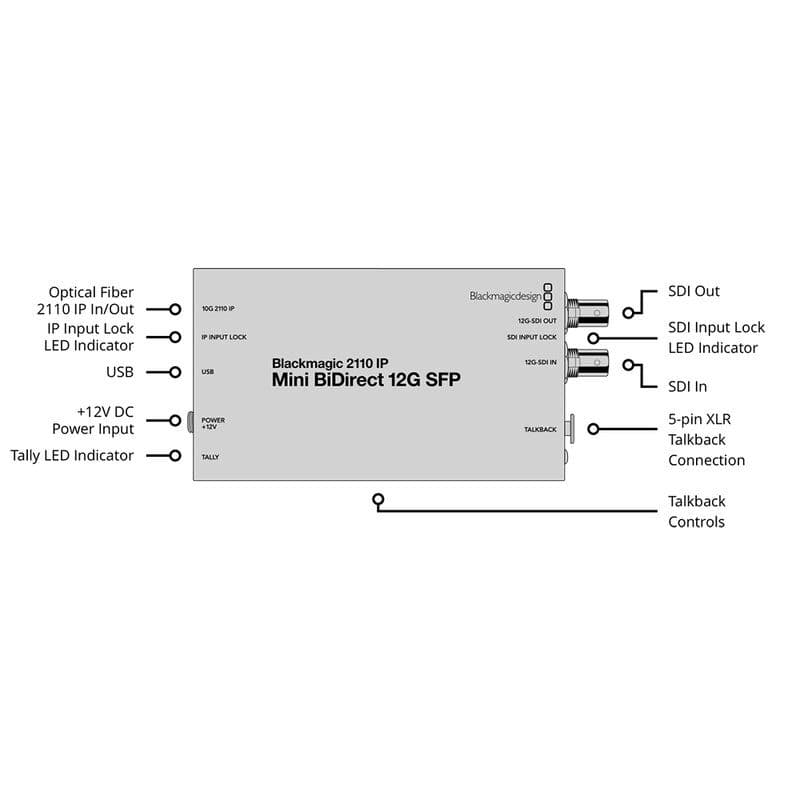

Connections

• SDI video input: 1
• SDI video output: 1
• SDI rates: 270 Mb, 1.5G, 3G, 6G, 12G
• SMPTE ST-2110 IP video inputs/outputs: 1 x 10 G Ethernet
• Analog audio inputs: 1 x 5-pin XLR talkback
• Analog audio outputs: 1 x 5-pin XLR talkback
• SDI audio inputs: 16 CH embedded audio on SDI input
• SDI audio outputs: 16 CH embedded audio on SDI loop output
• SMPTE ST 2110 IP audio inputs: 16 CH embedded audio on ST-2110 IP video via 10 G Ethernet
• SMPTE ST 2110 IP audio outputs: 16 CH embedded audio on ST-2110 IP video via 10 G Ethernet
• Multi rate support: auto detection of SD, HD, 2K, Ultra HD and 4K
• Reclocking: yes
• Ethernet: 1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates
• Computer interface: 1 x USB-C 3.0 for configuration and firmware updates

SDI video standards

• SD video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080 PsF30
• 2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
• 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI

SDI compliance

• SDI video rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
• SDI color precision: 4:2:2
• SDI color space: YUV
• SDI auto switching: automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output

IP video compliance

• SMPTE 2110-20 (uncompressed video): IGMP v2
• SMPTE 2110-21 (traffic shaping):
  • Sender: narrow
  • Receiver: narrow, wide synchronous, asynchronous
• SMPTE 2110-30 (PCM): audio conformance level C
• SMPTE 2110-40 (ancillary data): full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
• Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video
• PTP (Precision Time Protocol): IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
• NMOS IS-04 discovery and registration: v1.3.2, peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 connection management: v1.1.2
• NMOS BCP-002-01: natural grouping
• NMOS BCP-004-01: receiver capabilities

Talkback and Tally

• Talkback: 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video
• Live Tally indicator: Tally LED indicator light

LED indicators

• 1 x IP Input Lock LED indicator light
• 1 x SDI Input Lock LED indicator light
• 1 x Tally LED indicator light

Control

• Talkback button controls for volume up, volume down and push to talk

Operating systems

• Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11

Power requirements

• Power supply: 1 x +12 V_DC external universal power supply with locking 5.5 mm barrel jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies
• Operational voltage range: 12 - 16 V_DC
• Power usage: 18 W

Environmental specifications

• Operating temperature: 5 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0 to 90% non-condensing

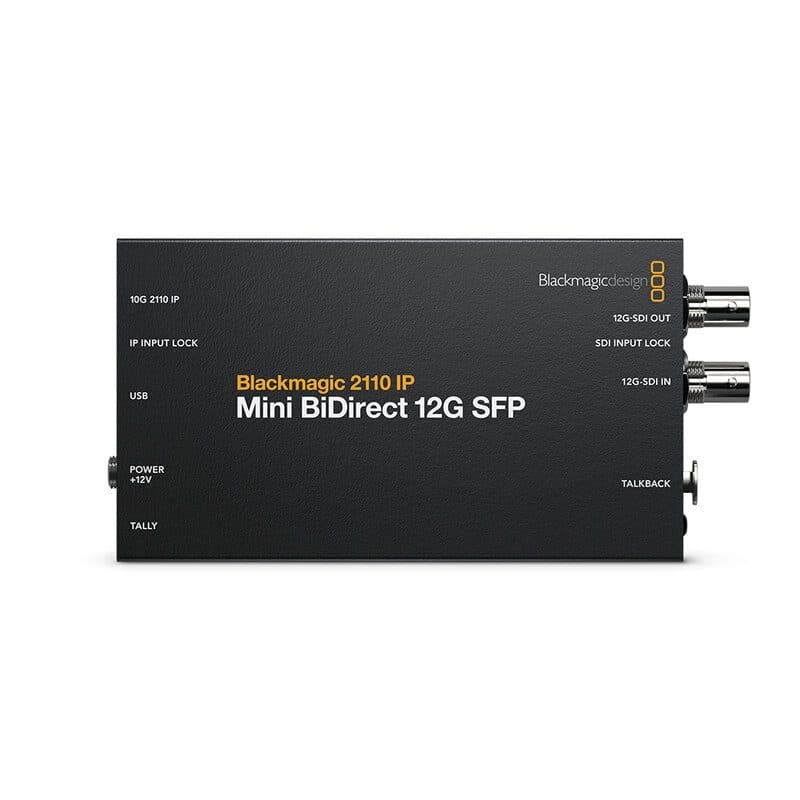

Physical specifications

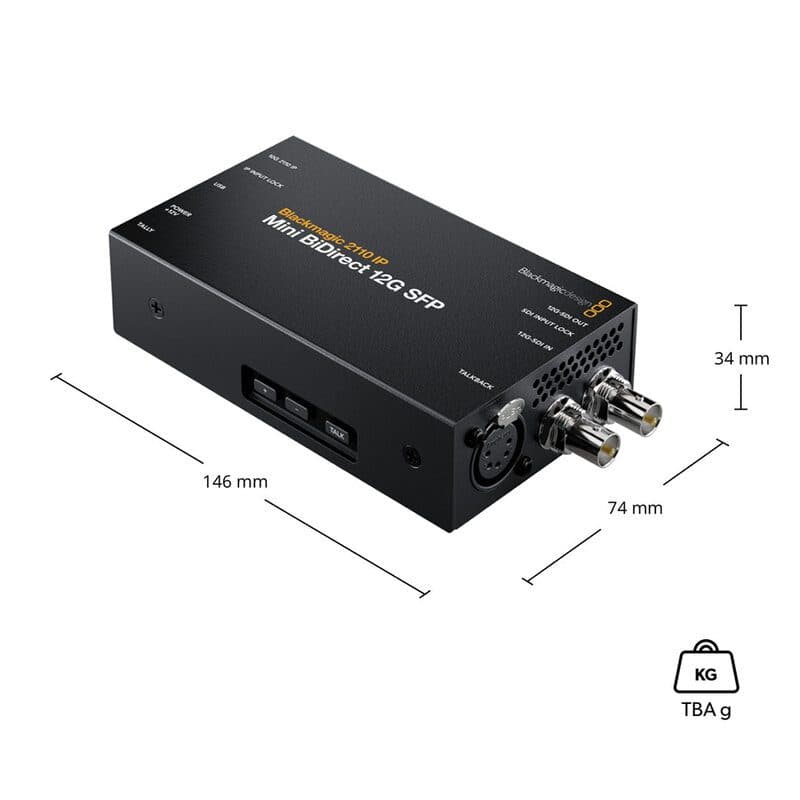

• Dimensions: 14.6 x 7.4 x 3.4 cm
• Weight: TBA

What's in the box

• Blackmagic 2110 IP Mini BiDirect 12G SFP, welcome wallet with QR code for software download
