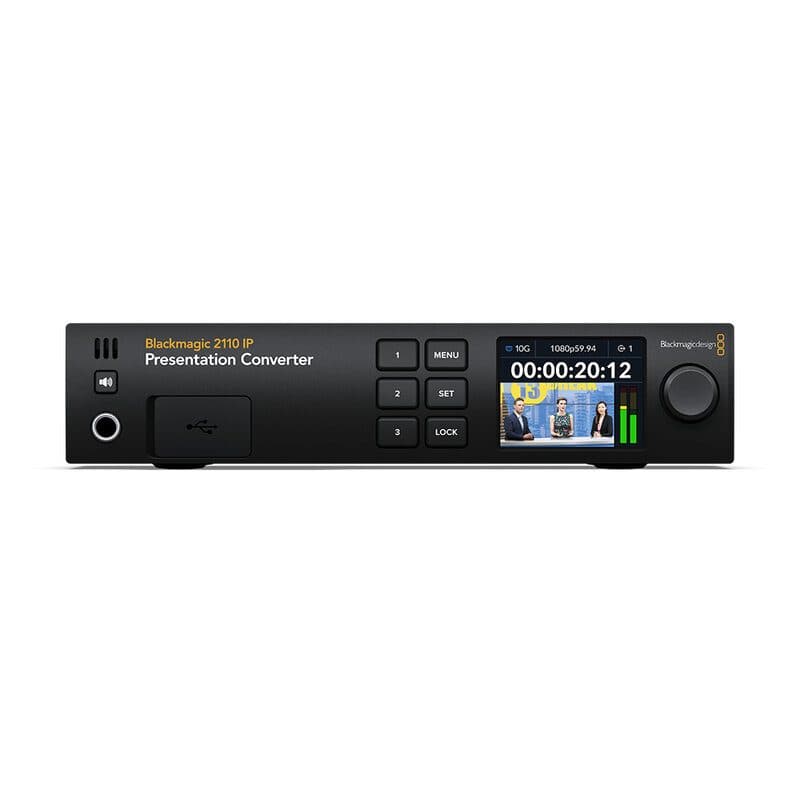

SMPTE-2110 IP presentation converter HDMI USB-C - Blackmagic Design BLM-CONVNVIPH/PRESC

Converter compliant with the SMPTE-2110 IP video standard designed for presentations and speeches, for example for use on a podium; connect switchers to computers, projectors, microphones and PA systems. Supports all SD, HD and Ultra HD formats up to 2160p 60. It features HDMI and USB-C inputs for video, and the USB-C port can also power notebooks. It also has an HDMI output for connecting projectors which can be switched to video input or return IP 2110 signals and a 12G-SDI. It uses Precision Time Protocol (PTP) clocking and includes the NMOS protocol for creating a virtual router. There are 2 XLR microphone inputs, 2 XLR audio outputs for line level PA systems + a headphone output and an internal speaker. The RJ45 10G Ethernet connection can power the converter (PoE++).

Technical characteristics

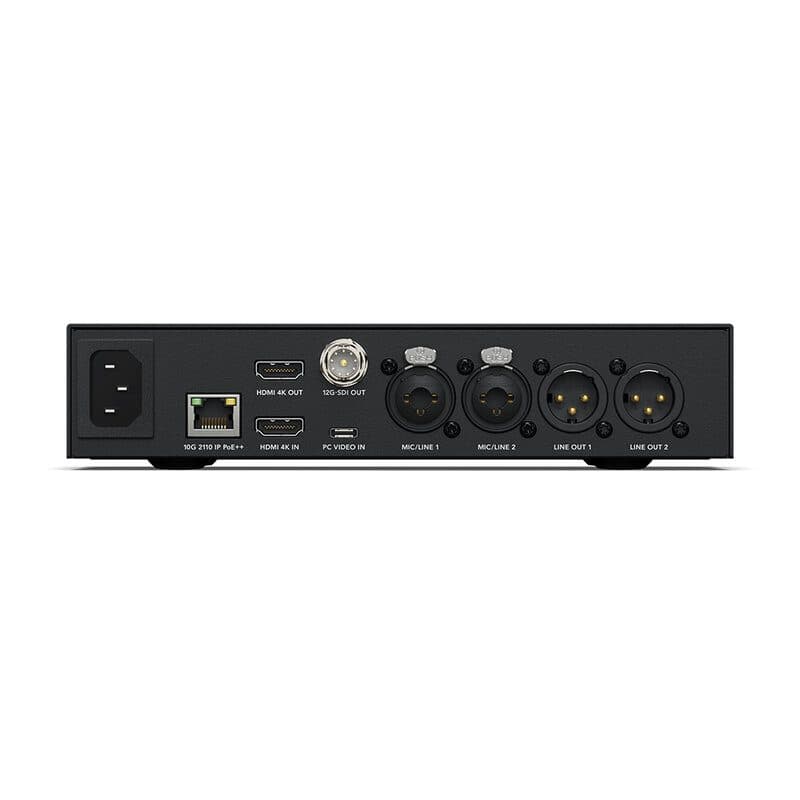

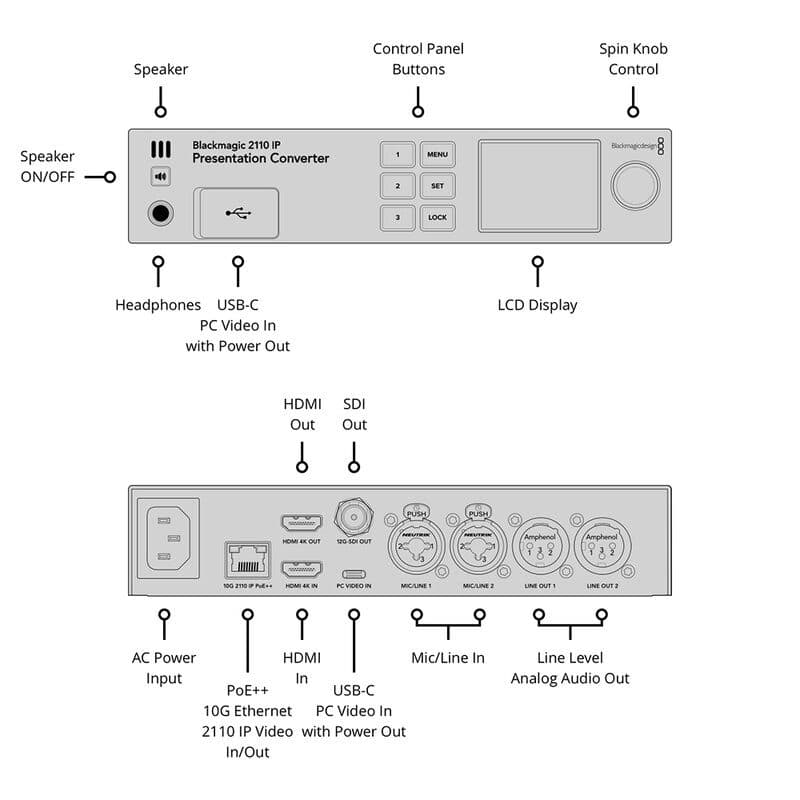

Connections

• PC video inputs: 1 x front USB‑C + 1 x rear USB‑C with 45 W host charging capability
• HDMI 2.0 video input: 1
• HDMI 2.0 video output: 1
• SDI video outputs: 1, automatically standards converted to destination
• SDI rates: 270 Mb, 1.5G, 3G, 6G, 12G
• SMPTE ST-2110 IP video input: 1 x 10 G Ethernet
• SMPTE ST-2110 IP video output: 1 x 10 G Ethernet
• Analog audio inputs: 2 x combination 3-pin XLR / TRS 1/4" jack connectors, switchable between +24 dB line and MIC level with support for +48 V Phantom power
• Analog audio outputs: 2 channels of professional balanced analog audio with 3-pin XLR connectors, 1 x 6.35 mm headphone jack
• SDI audio outputs: 16 CH embedded in SD / HD / 2K / UHD / 4K
• HDMI audio inputs: 8 CH embedded in SD / HD / UHD / 4K
• HDMI audio outputs: 8 CH embedded in SD / HD / UHD / 4K
• USB: 2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s)

• Ethernet: 1 x 10 Gb/s RJ45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates

SDI video standards

• SD video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080 PsF30
• 2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
• 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI

SDI compliance

• SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑10, SMPTE ST2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40
• SDI video rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
• SDI metadata support: RP 188/SMPTE 12M-2 and closed captioning
• Multiple rate support: SDI video connections are switchable between SD / HD / 2K / UHD and 4K
• SDI video sampling: 4:2:2, 4:4:4
• SDI audio sampling: television standard sample rate of 48 kHz and 24‑bit
• SDI color precision: 8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp 30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes - 8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp 60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes
• SDI color space: REC 601, REC 709 and REC 2020
• HDR support: HDR static metadata packing, HLG and PQ transfer characteristics

HDMI video standards

• SD video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60
• 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
• 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI
• HDMI audio sampling: television standard sample rate of 48 kHz and 24-bit
• HDMI video sampling: 4:4:4, 4:2:2 and 4:2:0
• HDMI color precision: 8, 10 and 12-bit
• HDMI color space: REC 601, REC 709 and REC 2020
• HDR support: HDR static metadata packing, HLG and PQ transfer characteristics
• HDR configuration: HDMI 2.0 supports Deep Color and HDR, automatically configures to connected display
• Multiple rate support: HDMI video connections are switchable between SD / HD / UHD and 4K
• Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

IP video compliance

• SMPTE 2110-20 (uncompressed video): IGMP v2
• SMPTE 2110-21 (traffic shaping):
  • Sender: narrow
  • Receiver: narrow, wide synchronous, asynchronous
• SMPTE 2110-30 (PCM): audio conformance level C
• SMPTE 2110-40 (ancillary data): full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
• Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video
• PTP (Precision Time Protocol): IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
• NMOS IS-04 discovery and registration: v1.3.2, peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 connection management: v1.1.2
• NMOS BCP-002-01: natural grouping
• NMOS BCP-004-01: receiver capabilities

Control

• Built in control panel: 6 buttons, spin knob and 2.2" color display for menu and settings. Front speaker ON/OFF button

Operating systems

• Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11

Power requirements

• Power supply: 1 x internal 100 ‑ 240 V_AC 50/60 Hz with IEC C14 mains input
• Power usage: TBA

Environmental specifications

• Operating temperature: 5 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0 to 90% non-condensing

Physical specifications

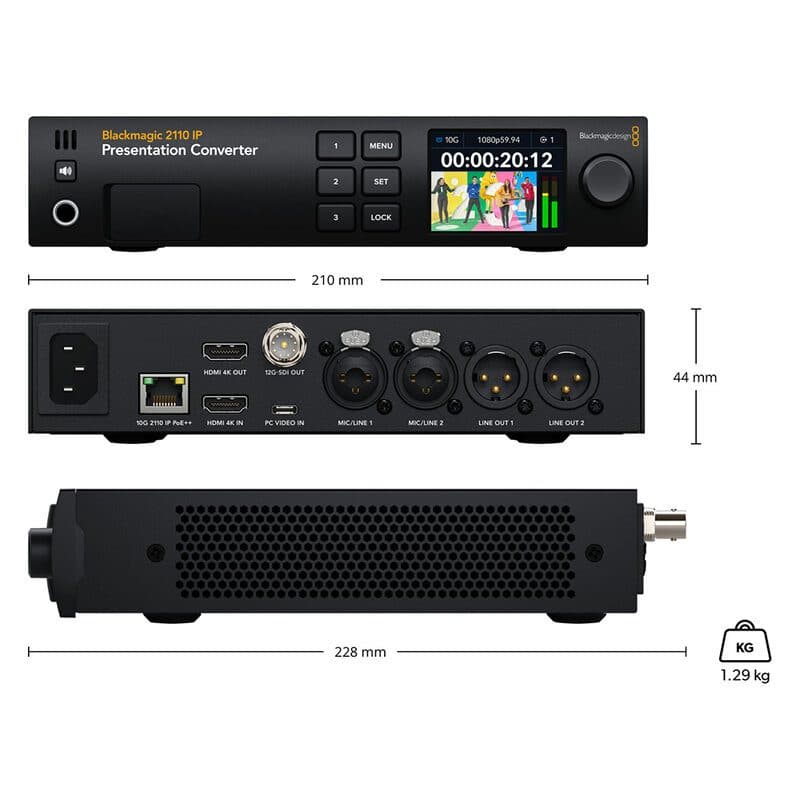

• Dimensions: 21 x 4.4 x 22.8 cm
• Weight: 1.3 kg

What's in the box

• Blackmagic 2110 IP Presentation Converter
• Welcome wallet with QR code for software download
