Converter IP 2110 12G-SDI HDMI 10 XLR rack 1U - Blackmagic Design BLM-CONVNVIPM/12G/HDMI10

The Blackmagic 2110 IP SDI to HDMI 12G-10 is a professional converter designed to convert 12G-SDI or SMPTE-2110 signals to HDMI, providing high quality conversion between all SD, HD and Ultra HD standards. This model, which is a standard 19" 1U rack mount model, includes a front facing LCD display that lets you monitor video, audio levels and access setup menus. It features 10 XLR analog audio outputs with variable gain and delay, perfect for multi-channel audio monitoring and perfect synchronization with TVs and projectors. It also features a built in speaker and headphone connection for precise audio monitoring. It supports 3D LUTs, allowing you to accurately calibrate HDMI displays for the best color rendition. Advanced connectivity includes 10G Ethernet for SMPTE-2110 IP video and SDI inputs that support multiple formats including SD, 1.5G, 3G, 6G and 12G-SDI. It also features HDMI 2.0 outputs, supporting up to 2160p 60 for flawless Ultra HD quality.   User benefits High quality bi-directional conversion between 12G-SDI and SMPTE-2110 IP Support for Ultra HD up to 2160p 60 Advanced audio management with 16 channels embedded on SDI and SMPTE-2110 IP Immediate monitoring with front LCD, audio meters and headphone connection Accurate calibration with support for 3D LUTs Areas of use Professional broadcast environments TV production Post-production (color grading rooms) High precision monitoring

Technical characteristics

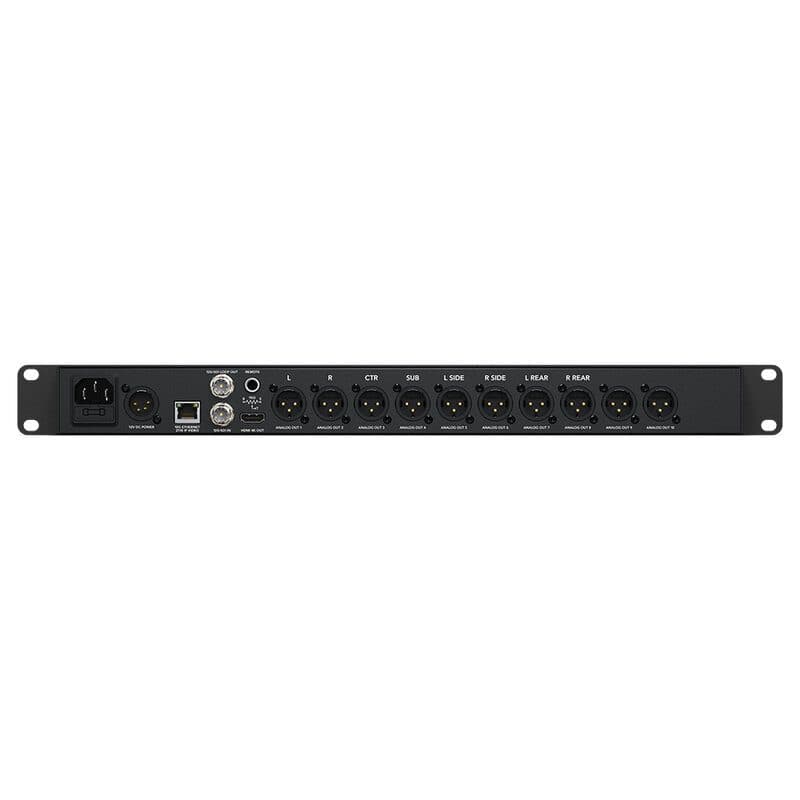

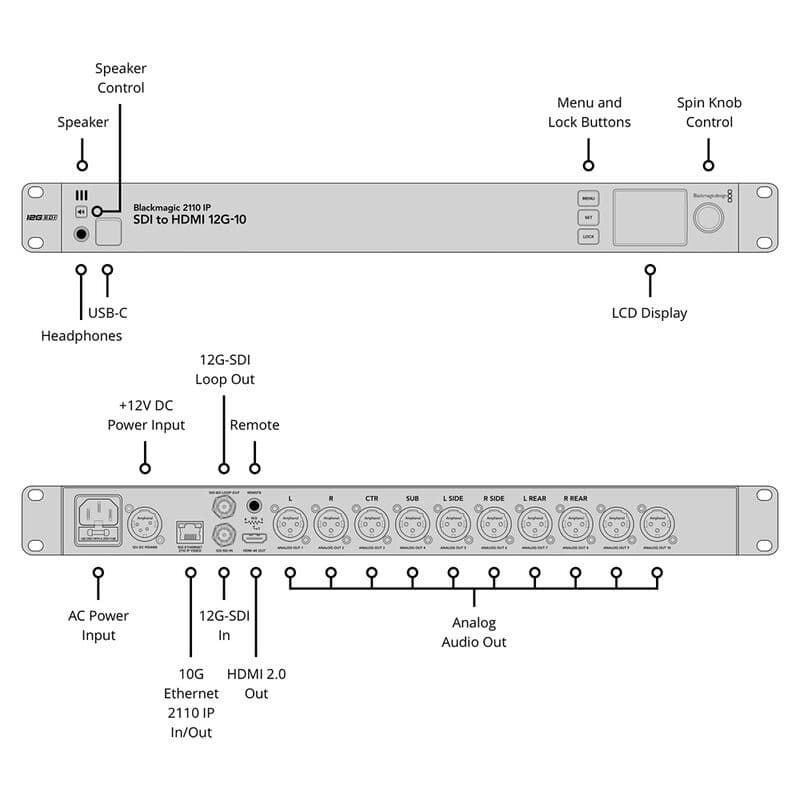

Connections

• SDI inputs: 1
• SDI loop outputs: 1
• SDI rates: 270 Mb, 1.5G, 3G, 6G, 12G
• HDMI 2.0 video outputs: 1
• SMPTE ST-2110 IP video inputs / outputs: 1 x 10G Ethernet
• Analog audio outputs: 10 channels of professional balanced analog audio with 3‑pin XLR connectors, 1 x 6.35 mm jack headphone socket
• SDI audio inputs: 16 CH embedded audio
• SDI audio outputs: 16 CH embedded audio
• HDMI audio inputs: 8 channels embedded audio
• HDMI audio outputs: 8 channels embedded audio
• SMPTE ST 2110 IP audio inputs: 16 CH embedded audio on ST-2110 IP video via 10G Ethernet
• SMPTE ST 2110 IP audio outputs: 16 CH embedded audio on ST-2110 IP video via 10G Ethernet
• Webcam outputs: 1 x USB‑C up to 1080p60
• Ethernet: Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration and software updates
• Computer interface: USB‑C for webcam out, updates and configuration

SDI video standards

• SD video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080 PsF30
• 2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
• 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI
• SMPTE compilance: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
• SDI metadata support: RP 188/SMPTE 12M‑2 and closed captioning
• Audio sampling: television standard sample rate of 48 kHz and 24 bit
• Color precision: 8, 10 RGB 4:4:4 in all modes up to 1080p 30 and 8, 10‑bit YUV 4:2:2 in all modes
• Color space: Rec. 601, Rec. 709, Rec. 2020
• HDMI HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60
• HDMI Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 62
• HDMI 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI
• HDMI color precision: 4:2:2
• HDMI color space: YUV

IP video compliance

• SMPTE 2110-20 (uncompressed video): IGMP v2
• SMPTE 2110-21 (traffic shaping):
  • Sender: narrow
  • Receiver: narrow, wide synchronous, asynchronous
• SMPTE 2110-30 (PCM): audio conformance level C
• SMPTE 2110-40 (ancillary data): full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
• Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video
• PTP (Precision Time Protocol): IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
• NMOS IS-04 discovery and registration: v1.3.2, peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 connection management: v1.1.2
• NMOS BCP-002-01: natural grouping
• NMOS BCP-004-01: receiver capabilities

Audio

• Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket

Control

• Built in control panel: built-in control panel including 4 buttons, spin knob control and 2.2" color display
• External control: RJ-45 10Gb/s Ethernet and USB‑C, REST API over Ethernet for external control via HTTP when used with REST client applications

Displays

• Built in 2.2" LCD for monitoring video, audio and status plus menu settings

Operating systems

• Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11

Power requirements

• Power supply: 1 x internal 100 ‑ 240 V_AC 50/60 Hz with IEC C14 mains input, 1 x 4‑pin XLR for +12 V_DC input for external power supply or battery use

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0 to 90% non-condensing

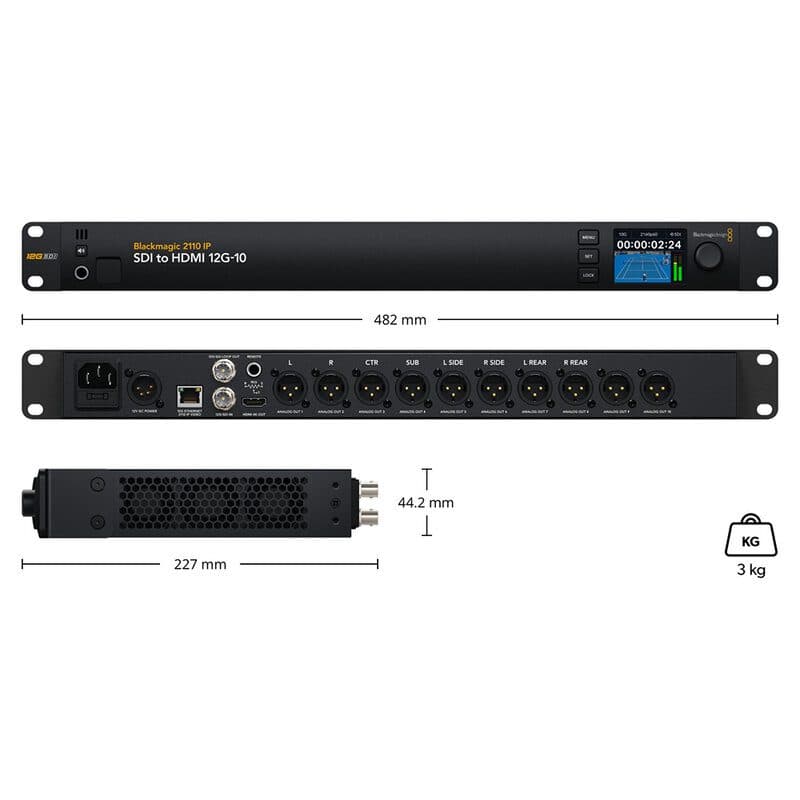

Physical specifications

• Dimensions: 48.3 x 4.4 x 22.7 cm
• Weight: 3 kg

What's in the box

• Blackmagic 2110 IP SDI to HDMI 12G-10
• Welcome wallet with QR code for software download
