Bidirectional 8x12G SDI IP SMPTE-2110 Expander - Blackmagic Design BLM-CONVNVIPP/EX10012G8

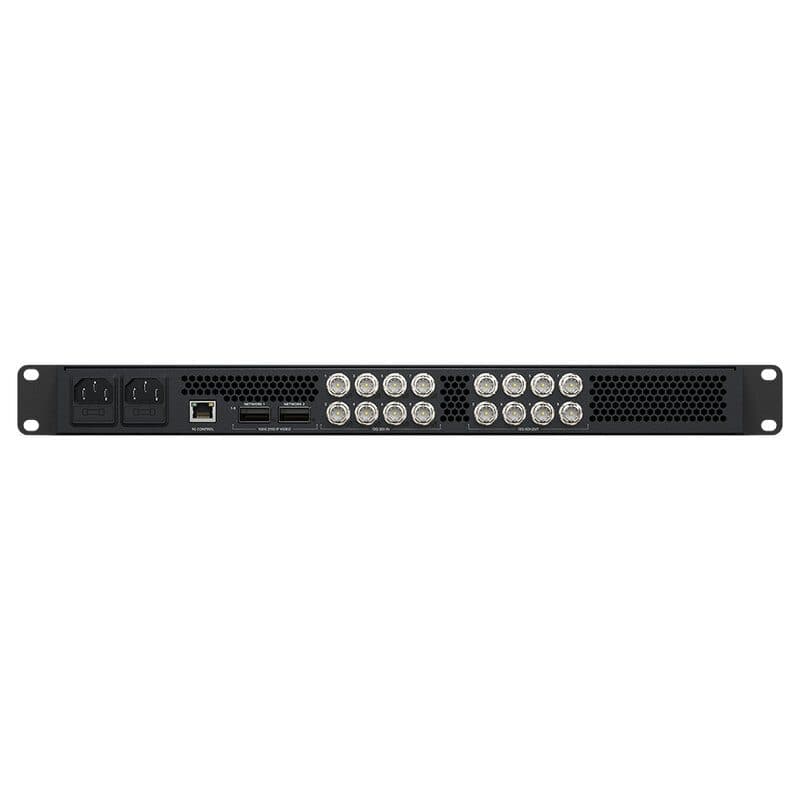

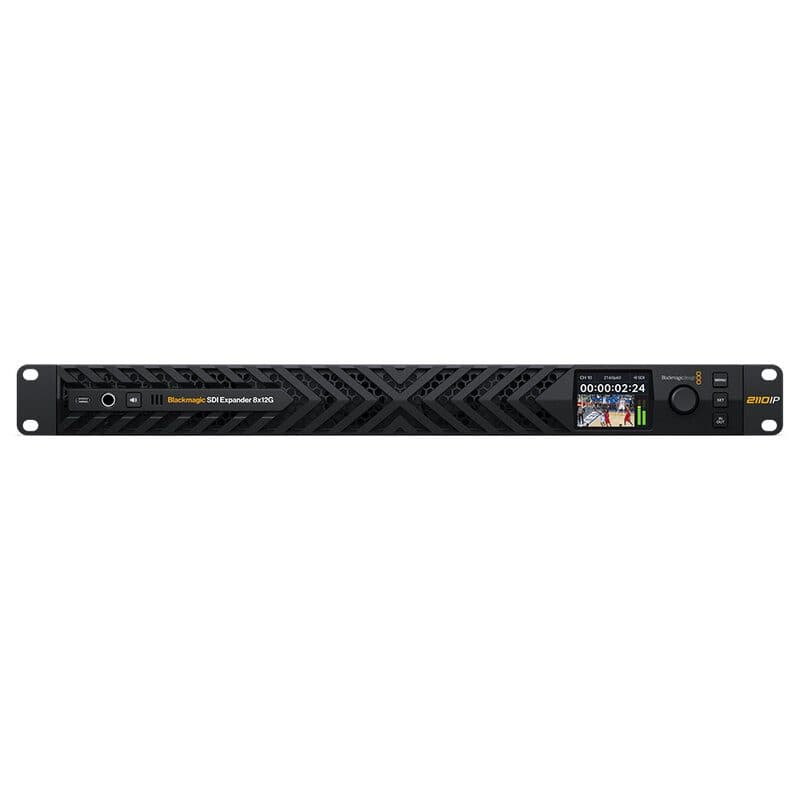

The SDI Expander 8x12G is a bidirectional converter designed for integrating 12G-SDI equipment into IP infrastructures based on 100G Ethernet and the SMPTE-2110 standard. It simultaneously manages eight channels of 12G-SDI to SMPTE-2110 conversion and eight channels in the opposite direction, for a total of 16 independent conversions in a single 1U rack space. The two 100G Ethernet ports provide full SMPTE-2022-7 redundancy, with seamless switching based on RTP packet comparison and real-time video frame reconstruction, preventing frame drops or audio glitches even in the event of a network failure. The front panel features an LCD display for source monitoring, a speaker, and a headphone jack for instant audio monitoring. Dual redundant AC power supplies ensure continuous operation in mission-critical broadcast environments. Thanks to the dedicated NMOS connection, the device easily integrates into IP routing systems, simplifying the management of SMPTE-2110 sources and reducing the wiring complexity typical of traditional SDI installations. Main features Connects 12G-SDI equipment to SMPTE-2110 IP systems over 100G Ethernet Supports 8 bidirectional connections with SMPTE-2022-7 redundancy Features 8 12G-SDI inputs and 8 12G-SDI outputs in a 1RU design Redundant 100G Ethernet ports for full SMPTE-2022-7 compliance SDI connections support SD, HD, and Ultra HD Includes a dedicated NMOS connection for routing IP sources Front-panel LCD for monitoring video inputs and outputs Front-panel speaker and headphone jack for audio monitoring Dual redundant AC power supplies for broadcast reliability Localized in 13 languages ​​for international use User benefits Easily integrate 12G-SDI equipment into SMPTE-2110 IP networks Convert 16 channels simultaneously in a single 1RU unit Full redundancy with SMPTE-2022-7 for business continuity Video and audio monitoring directly from the front panel Reduced cabling complexity compared to traditional SDI installations Maximum reliability with dual AC power supplies Simplified source management with NMOS control Areas of use SMPTE-2110-based IP broadcast infrastructures Production centers with mixed SDI/IP workflows Integrate SDI switchers and routers into 100G networks Control rooms, control rooms Multi-format conversion and distribution in professional environments
