Matrix HDMI/USB-C 3x2 4K60 USB hub KVM downscaling - CYP CYP-OR-32USBC-4K22

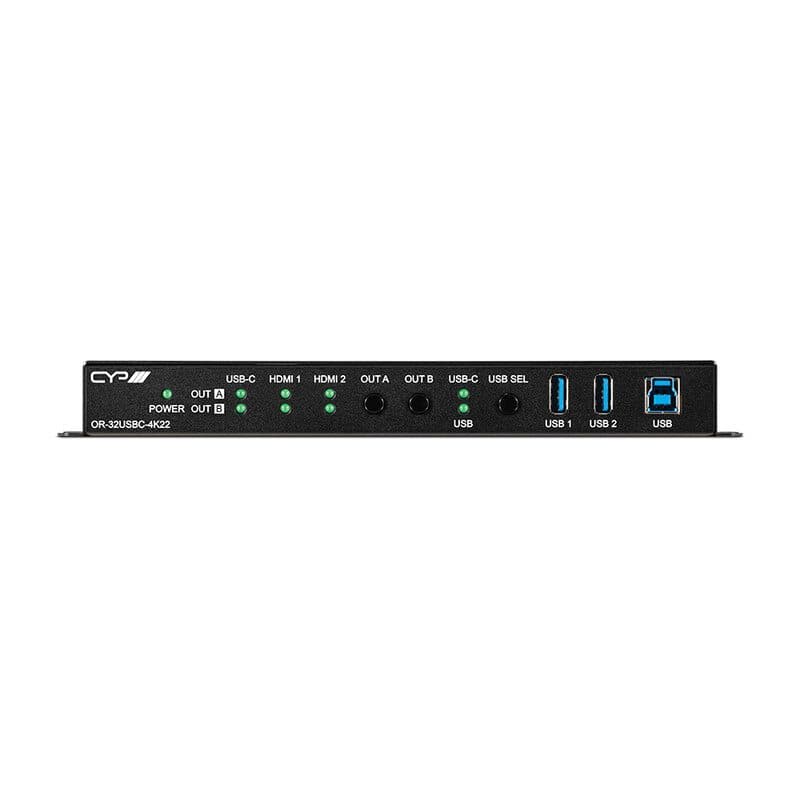

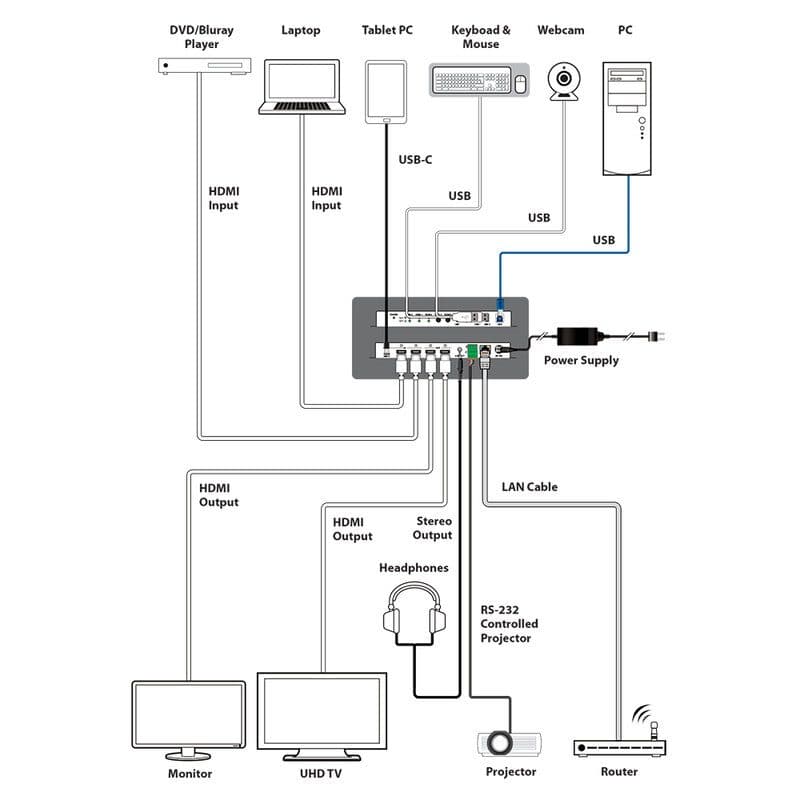

The OR‑32USBC‑4K22 is a 3 × 2 matrix switcher designed to handle HDMI and USB‑C sources with 4K @ 60 4:4:4 support, downscaling on the HDMI A output, and a built-in USB 3.0 hub for flexible KVM configurations. The USB‑C input supports AV, power up to 20 VDC 3 A, and network connectivity, while the two HDMI outputs allow simultaneous signal distribution. The device also supports HDR formats, signal automation, and auto-switching with memory of the last state. Control is available via front buttons, Web GUI, Telnet, and RS‑232, making it ideal for meeting rooms, classrooms, and AV installations with USB expansion. Main features 2 × HDMI inputs and 1 x USB-C input 4K @ 60 Hz 4:4:4 2 × HDMI matrix outputs with Output A supporting 4K > 1080p downscaling The USB-C port supports USB 3.0, 20 VDC 3 A device power supply, and a gigabit Ethernet connection Supports LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream audio pass-through Compatible with 4K HDR formats such as HDR10, HLG, and Dolby Vision Supports USB 3.0 with one USB Type-B and one USB Type-C port for connection to a host PC, plus two USB Type-A ports for peripheral devices such as a keyboard, mouse, and storage Auto-switching with last memory function for both video inputs and USB ports Basic signal event automation (via RS-232, IP, or CEC) User benefits Greater flexibility in managing laptops and mobile devices with USB-C support with power delivery Fast, hands-free transitions with intelligent auto-switching Reduced setup time in meeting rooms Simplified user experience with integrated USB hub for keyboards, mice, and peripheralsOutstanding compatibility with 4K HDR content Intuitive control via web GUI and remote controls for unattended environments Areas of use Boardrooms and meeting rooms Classrooms and educational environments Shared KVM stations Multi-format corporate installations AV systems with USB expansion

Technical characteristics

• Inputs:

  • 1 × USB‑C (USB‑C/Thunderbolt)
  • 2 × HDMI (uncompressed AV and data)
  • 2 × USB Type‑A (USB propriety data)
  • 1 × phoenix (4‑pin) (RS‑232 local control)
  • 1 × RJ45 (LAN serving)

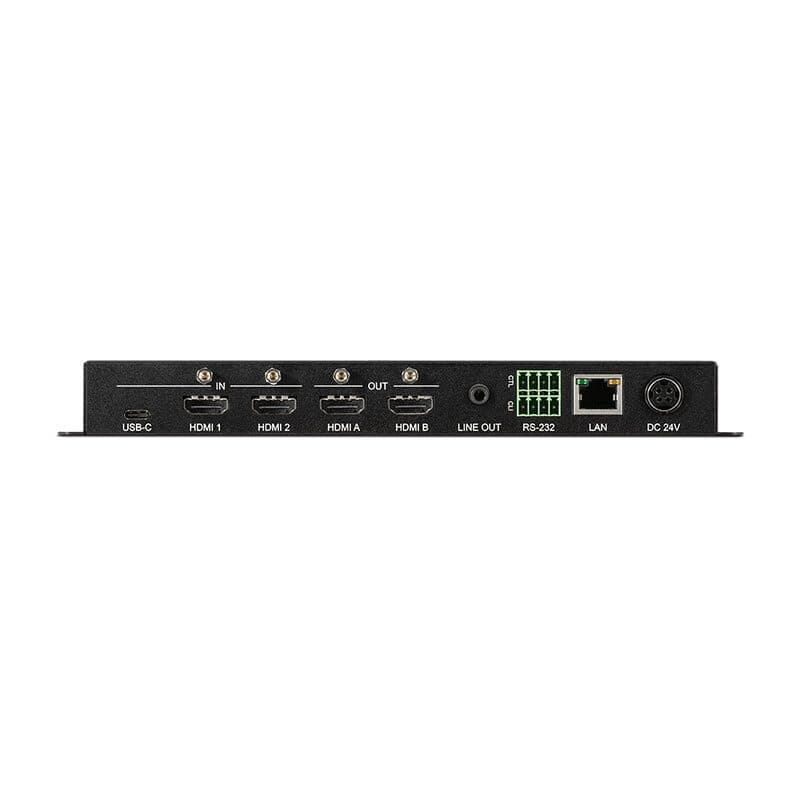

• Outputs:

  • 2 × HDMI (uncompressed AV and data)
  • 1 × USB 3 Type‑B (power & data)
  • 1 × 3.5 mm stereo mini‑jack (analogue stereo L/R)
  • 1 × phoenix (4‑pin) (RS‑232 local output)
• PSU: 24 V_DC 5 A
• Dimensions (W × H × D): 23.15 × 2.5 × 10.8 cm
• Net weight: 680 g
