Receiver HDBaseT 3.0 HDMI 4K USB IR RS-232 40m - CYP PUV-3050RX-UA

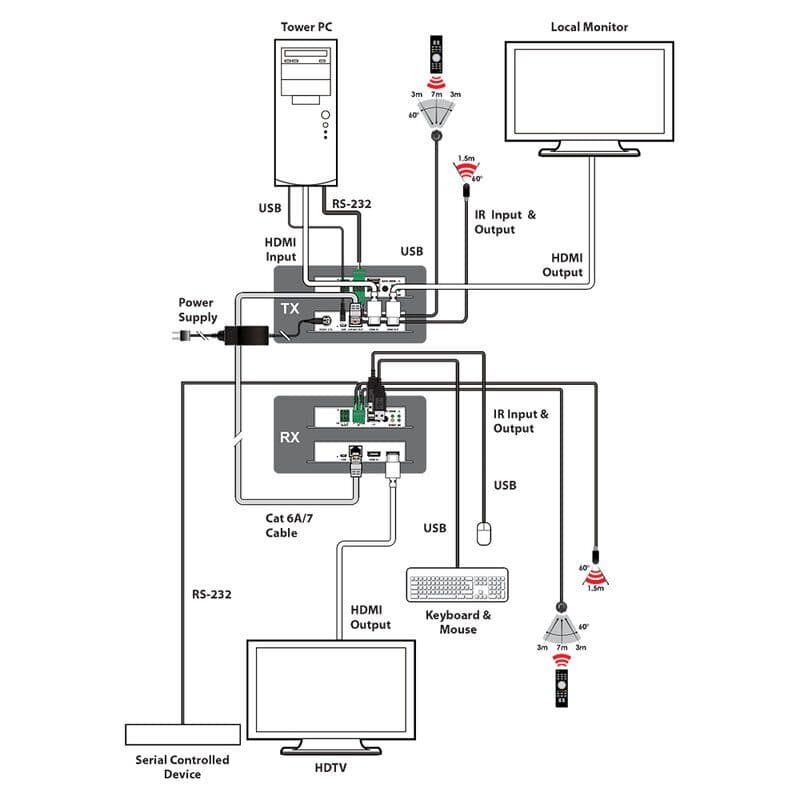

The PUV‑3050RX‑UA is an HDBaseT 3.0 receiver designed to receive uncompressed HDMI 2.0 signals up to 4K @ 60 (4:4:4, 8-bit, or 4K HDR), along with HD audio and control signals, over an HDBaseT connection with a single Cat.6a/7 cable up to 40 meters. In addition to video and audio, the receiver sends IR, RS‑232, and USB 2.0 signals from the transmitter, enabling the use of peripherals such as keyboards, mice, and interactive displays thanks to USB 2.0 support and fast data transfer. When combined with a compatible transmitter, it also supports a bidirectional analog audio path for applications requiring dedicated audio routing. The product is suitable for installations requiring uncompressed video and audio over long distances. Main features HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant HDBaseT 3.0 compliant (backward compatible with HDBaseT 2.0/1.0) Supports video up to 4K UHD+ (18 Gbps, 4K @ 60 Hz 4:4:4 8-bit) via HDBaseT Supports 10-bit and 12-bit HDR input and output Supports HDBaseT functions: HD video and audio, bidirectional analog audio, and control (bidirectional USB/IR/RS 232 pass-through) USB 2.0 Type-A ports for devices and one USB 2.0 Micro port for host Supports PoH from transmitter to receiver via the same HDBaseT port Analog audio I/O path via HDBaseT connection Audio output is selectable between bypass and extraction User benefits USB support for KVM peripherals and interactive displays Bidirectional analog audio path PoH to power the receiver without additional power supplies Full control via USB, IR, and RS-232 pass-through Simplified installation via a single Cat.6a/7 cable Areas of use Conference rooms and meeting rooms Classrooms and educational environments Medical applications requiring uncompressed video KVM stations and interactive displays

Technical characteristics

• Inputs:

  • 1 × HDMI (uncompressed AV and data)
  • 1 × RJ45 (HDBaseT 3 HDMI & proprietary data)
  • 1 × USB micro (service port proprietary data)
  • 1 × Phoenix 3‑pin (analogue stereo L/R audio input)
• Outputs:

  • 1 × HDMI (uncompressed AV and data)
  • 1 × Phoenix 3‑pin (analogue stereo L/R audio output)
  • 2 × USB Type‑A (USB pathway proprietary data)
• PSU: PoH
• Dimensions (W × H × D): 12.8 × 2.5 × 10.8 cm
• Weight: 400 g
