HDBaseT 2.0 4K USB Ethernet KVM PoH 100m receiver - CYP PUV-2606RX

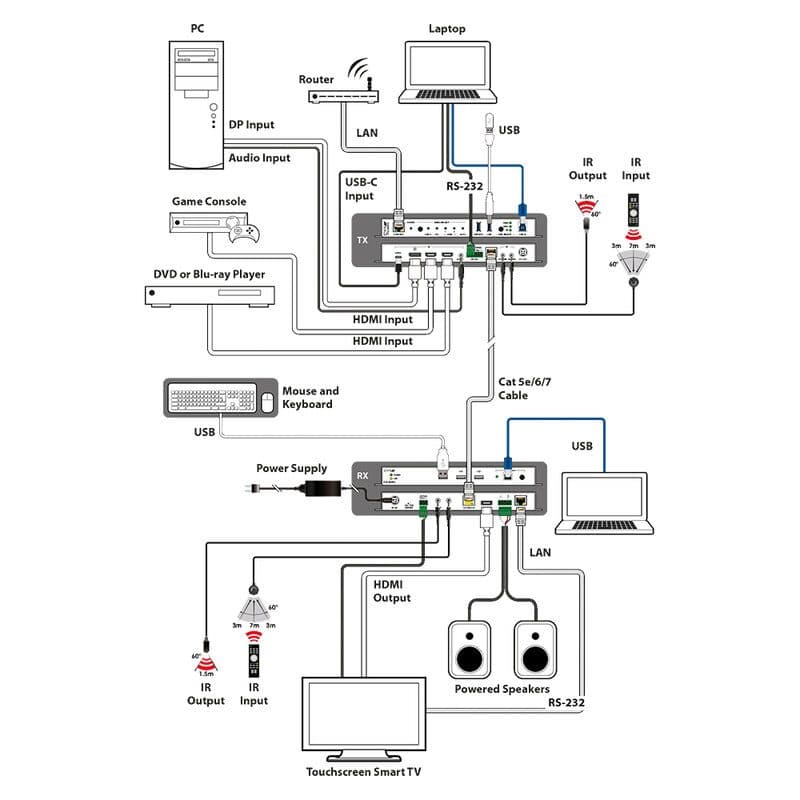

The PUV-2606RX is the standard HDBaseT2 receiver in the PUV-2600 series with reverse power (PoH from RX to TX). It allows you to receive uncompressed HD audio and video, Ethernet, and control signals over a single Cat.6/7 cable up to 100 meters. It supports USB 2.0, IR, RS-232, and LAN, includes a balanced analog audio output for de-embedding, and handles signals up to 4K @ 30 Hz (4:4:4, 8-bit) or 4K @ 60 Hz (4:2:0, 8-bit). When paired with compatible PUV-2600 series transmitters, it offers flexible KVM configurations with USB host selection via a front button. Main features HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant HDBaseT 2.0 compatible 1 × HDBaseT input and 1 HDMI output 3 × USB 2.0 Type A ports and 1 USB 2.0 Type B port HDBaseT inputs up to 4K @ 60 Hz (4:2:0, 8-bit) HDMI output up to 4K @ 60 Hz (4:2:0, 8-bit) HDBaseT input for video, audio, and data over a single Cat. 5e/6/7 cable up to 100 m HDBaseT features: HD video and audio, 100BaseT Ethernet, PoH (PSE), and control (bidirectional IR/RS-232/USB 2.0) CEC bypass LPCM (up to 8 channels), Bitstream and HD audio pass-through Bitstream Independent analog stereo audio extension reception Flexible USB host selection via front button Local or PoH power supply from the receiver (PSE) to the transmitter (PD) Controlled via a front panel button User benefits Simplified management of video, audio, network, and control via a single cable Flexible KVM configuration with USB host selection PoH power supply for the transmitter Immediate audio de-embedding via balanced analog output Compatible with 4K signals for integration into AV systems Quick local control via front button Areas of use Corporate Educational Conference rooms and meeting rooms Applications requiring simultaneous transport of audio, video, USB, IR, RS-232, and LAN

Technical characteristics

• Inputs:

  • 1 × RJ45 (1 × HDBaseT HDMI & propriety data)
  • 1 × USB Type B (1 × USB propriety data)
  • 1 × 3.5 mm stereo mini-jack (1 × infra red receiver)

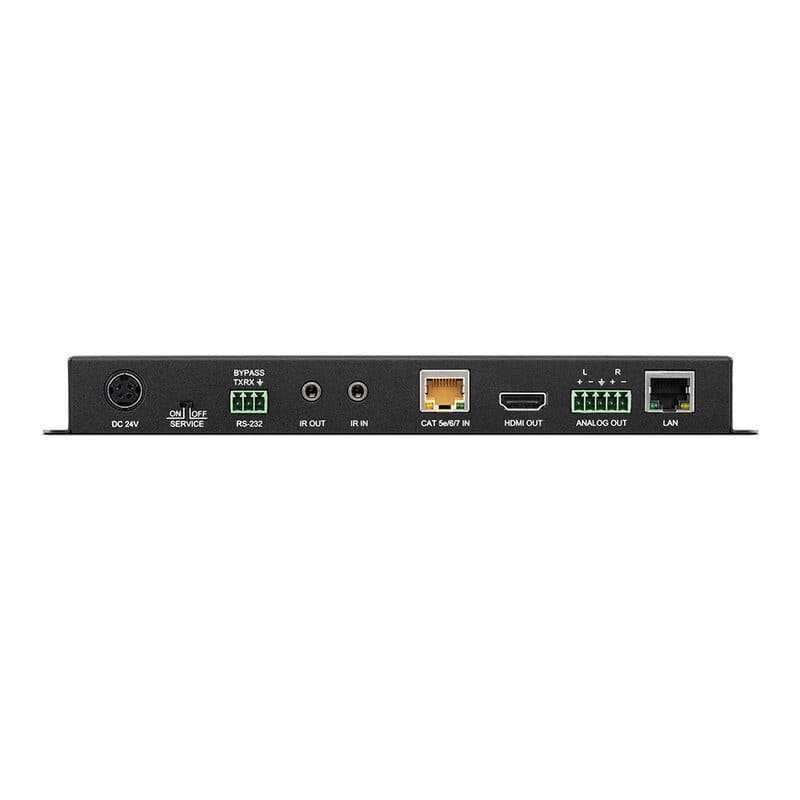

• Outputs:

  • 1 × HDMI (1 × HDMI uncompressed AV and data)
  • 1 × Phoenix (5 pin) (1 × analogue stereo balanced or unbalanced)
  • 3 × USB Type A (3 × USB propriety data)
  • 1 × 3.5 mm stereo mini-jack (1 × infrared emitter)
  • 1 × RJ45 (1 × LAN serving)
• PSU: 24 V_DC 2.7 A
• Dimensions (W × H × D): 23.15 × 2.5 × 10.8 cm
• Net weight: 640 g
