PUV‑1710LRX‑AVLC is a LITE HDBaseT1 receiver designed to receive video signals up to 4K UHD, including 10/12-bit HDR and Dolby Vision content, along with HD audio, bidirectional IR, RS-232, PoH, and network, over a single Cat.6a/7 cable up to 35 meters for 4K @ 60 4:4:4 signals and up to 70 meters for 4K @ 60 4:2:0 signals.

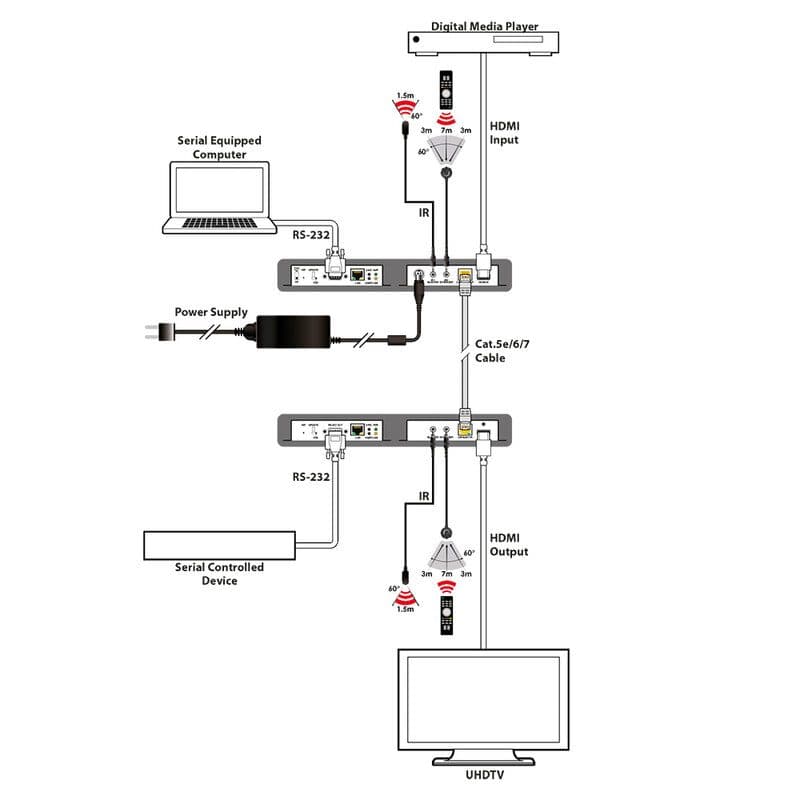

The system simultaneously receives audio, video, control, power, and LAN over a single HDBaseT connection. Thanks to AVLC technology, the receiver can handle signals up to 18 Gbps despite the 10.2 Gbps limit of HDBaseT, ensuring a visually lossless 4K 6G image on the connected display.
The product is suitable for installations requiring 4K HDR distribution over long distances with integrated control, network, and power management via HDBaseT.
Main features
HDBaseT feature set: HD video and audio, 48V PoH, and control (bidirectional IR and RS-232 pass-through)
Video output up to 4K UHD (18 Gbps, 4K @ 50/60 Hz 4:4:4 8-bit)
AVLC (Adaptive Visually Lossless Compression) technology
AVLC with manual selection between high-quality and standard compression from the transmitter
10-bit and 12-bit HDR
Output resolutions up to 4K @ 50/60 Hz (4:4:4 8-bit)
Deep Color input and output up to 12-bit
CEC bypass
4K 3G and 1080p up to 70 meters, 4K 6G up to 35 meters
HD audio format pass-through: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby
Atmos, and DTS-HD Master Audio
Supports 3D signals
User benefits
4K HDR distribution over long distances via a single Cat.6a/7 cable
Visually lossless video quality thanks to AVLC technology
Full network, control, and power integration via HDBaseT
Compatibility with HD audio formats
Reliable management even in complex AV environments
Areas of use
Multi-zone AV installations
Corporate (conference rooms and meeting rooms) with HDBaseT infrastructure
Education
Advanced residential installations
Technical characteristics

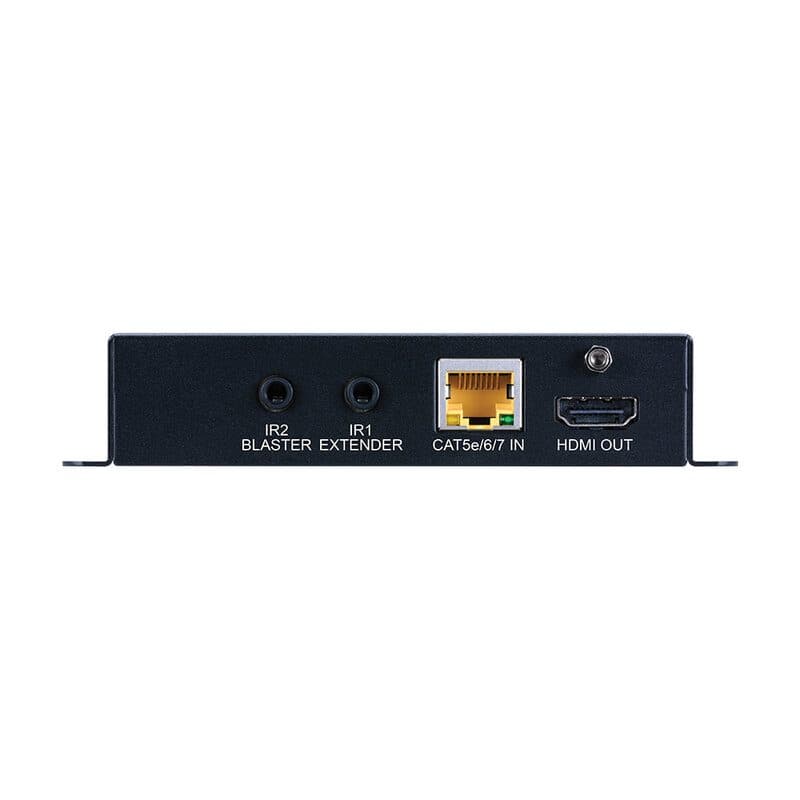

- Inputs:
- 1 × RJ45 (HDBaseT HDMI & proprietary data)
- 1 × 3.5 mm stereo mini-jack (infrared receiver)
- Outputs:
- 1 × HDMI (uncompressed AV and data)

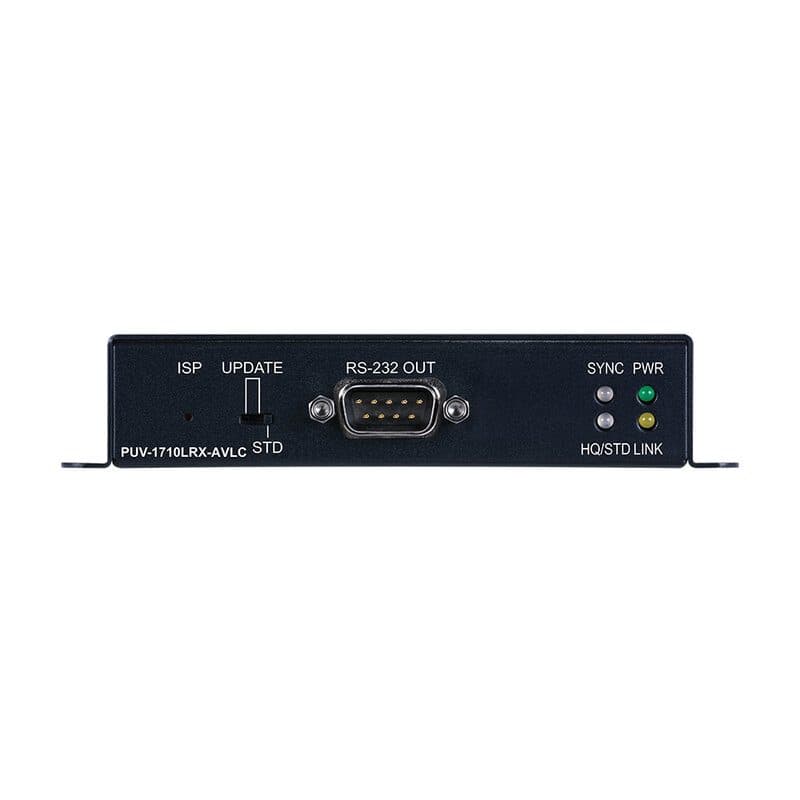

- 1 × 9-pin D-sub (RS 232 data)
- 1 × 3.5 mm stereo mini-jack (infrared emitter)
- 1 × RJ45 (LAN serving)
- PSU: PoH
- Dimensions (W × H × D): 12.8 × 2.5 × 10.8 cm
- Net weight: 380 g
