4K HDBaseT transmitter reverse PoH LAN IR RS-232 100m - CYP PUV-1610TX

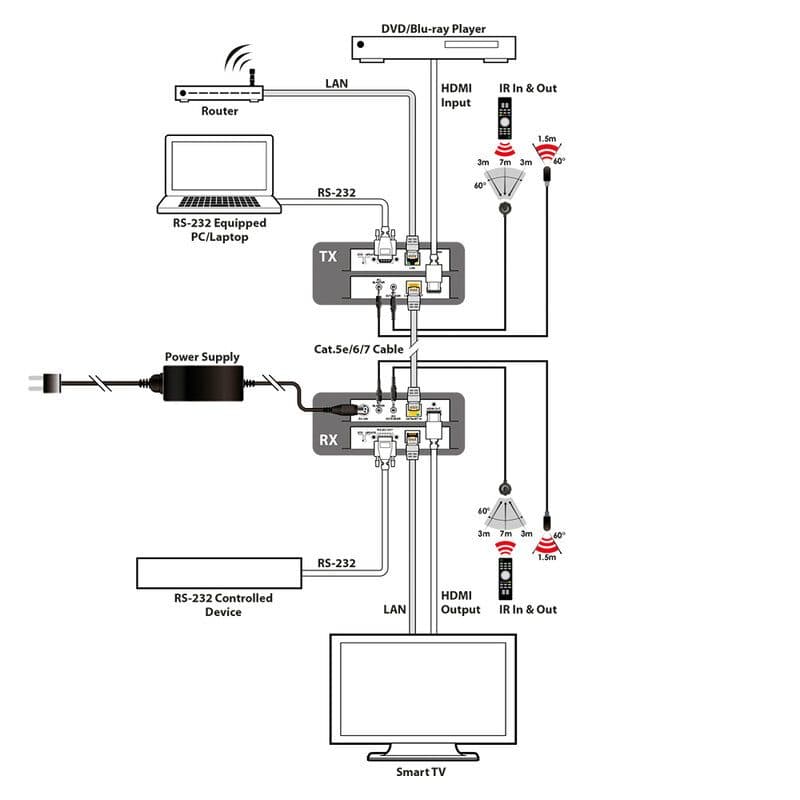

The PUV-1610TX is an HDBaseT1 transmitter designed to transmit video signals up to 4K UHD, along with HD audio, bidirectional IR, RS-232, PoH, and LAN, over a single Cat.6a/7 cable up to 100 meters. The system simultaneously transmits audio, video, control, network, and power over a single HDBaseT link. A distinctive feature of the PUV-1600 series is reverse powering: the transmitter receives power from the mains-powered receiver, offering greater installation flexibility. The product is suitable for commercial AV applications requiring stable transmission of 4K signals, control, and network over long distances over a single cable. Main features Uncompressed video/audio up to 10.2 Gbps HDCP2.2 compliant Resolutions: VGA - WUXGA, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 and YUV 4:2:2), 4K UHD @ 60Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 and YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) depending on the display's EDID 4K/2K and 4K UHD up to 70 meters via CAT5e/6 and 100 meters via CAT6a/7 1080p up to 100 meters via CAT5e/6/6a/7 Up to 7.1 CH audio and Dolby TrueHD, DTS-HD 5-Play convergence: HDMI, LAN, PoE, and control (IR and RS-232) Supports 3D signals Receives PoH from the mains-powered receiver User benefits Stable 4K transmission over long distances via a single Cat.6a/7 cable Reverse power from the receiver for more flexible installations Compatibility with HD audio formats Network, control, and power integration via HDBaseT Areas of use Retail Conference rooms and meeting rooms Education Corporate systems with HDBaseT infrastructure Multi-zone installations

Technical characteristics

• Inputs:

  • 1 × HDMI (uncompressed AV and data)
  • 1 × 9-pin D-sub (RS 232 data)
  • 1 × 3.5 mm stereo mini-jack (infrared receiver)

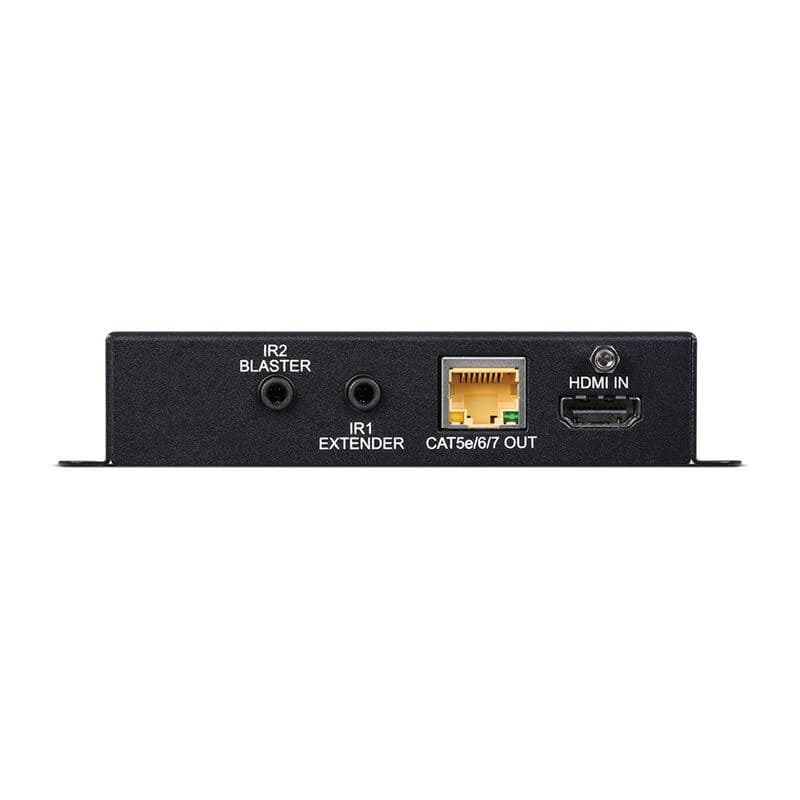

• Outputs:

  • 1 × RJ45 (HDBaseT HDMI & proprietary data)
  • 1 × 3.5 mm stereo mini-jack (infrared emitter)
  • 1 × RJ45 (ethernet I/O IP)
• PSU: PoH
• Dimensions (W × H × D): 12.8 × 2.5 × 10.8 cm
• Weight: 320 g
