HDBaseT 4K receiver reverse PoH LAN IR RS-232 100m - CYP PUV-1610RX

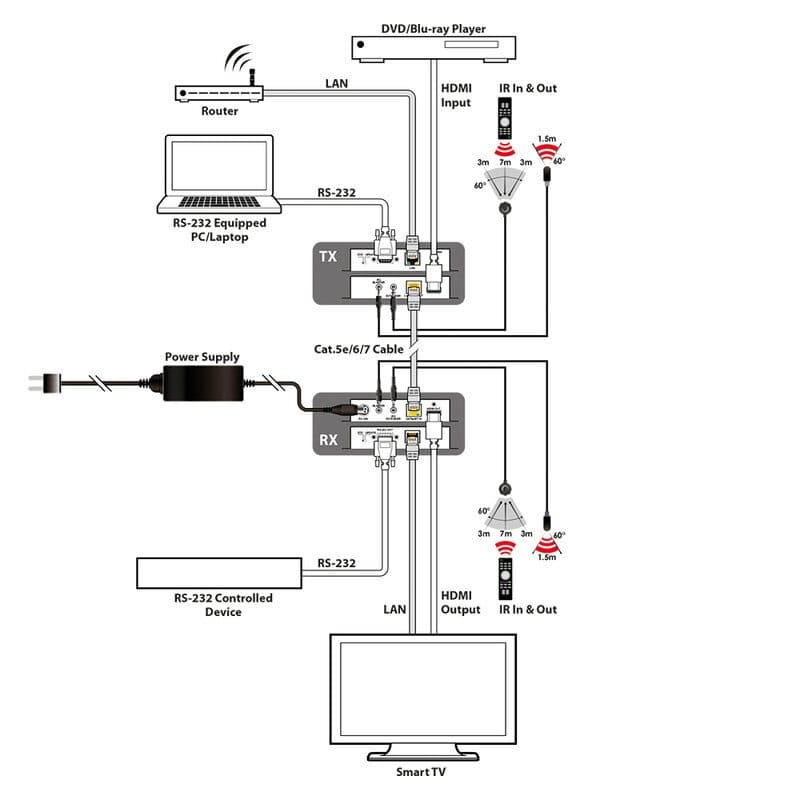

The PUV-1610RX is an HDBaseT1 receiver designed to receive video signals up to 4K UHD, along with HD audio, bidirectional IR, RS-232, PoH, and LAN, over a single Cat.6a/7 cable up to 100 meters. The system simultaneously receives audio, video, control, network, and power over a single HDBaseT link. A distinctive feature of the PUV-1600 series is reverse powering: the mains-powered receiver supplies power to the transmitter, offering greater installation flexibility. The product is suitable for commercial AV applications requiring stable transmission of 4K signals, control, and network over long distances over a single cable. Main features Uncompressed video/audio up to 10.2 Gbps Resolutions: VGA - WUXGA, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 and YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 and YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) based on the display's EDIDHDCP 2.2 compliant HDCP repeating and CEC functions 4K/2K and 4K UHD up to 70 meters via Cat. 6a/7 and 100 meters via Cat. 6a/7 1080p up to 100 meters via Cat. 5e/6/6a/7 Up to 7.1 CH audio and Dolby TrueHD, DTS-HD 5-Play convergence: HDMI, LAN, PoH, and control (IR and RS-232) Supports 3D signals User benefits Stable 4K distribution over long distances via a single Cat. 6a/7 cable Reverse power to the transmitter for more flexible installations Compatibility with HD audio formats Network, control, and power integration via HDBaseT Areas of use Commercial AV installations Conference rooms and meeting rooms Education Corporate Multi-zone installations

Technical characteristics

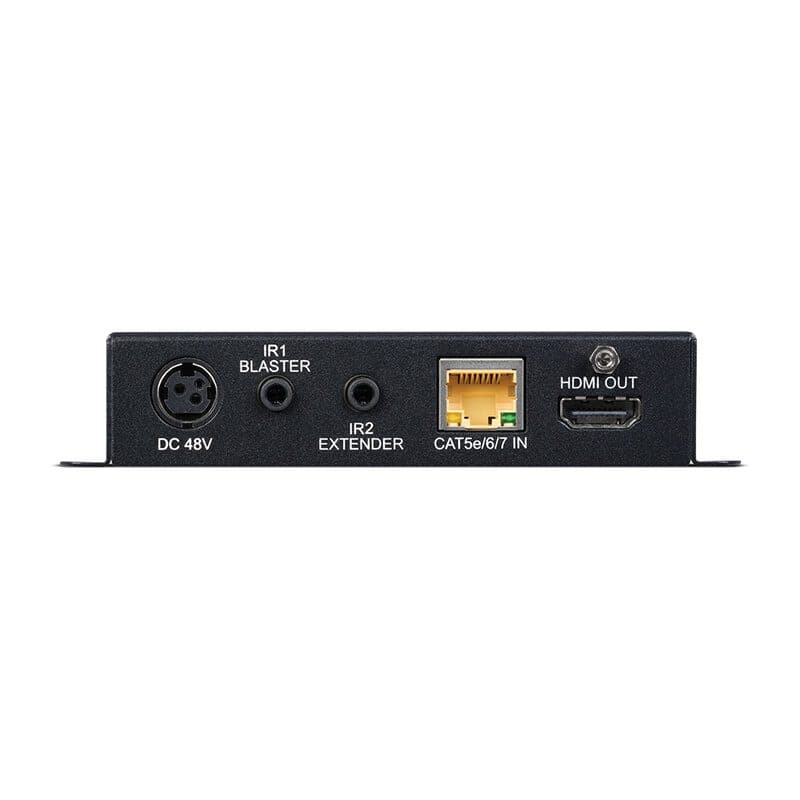

• Inputs:

  • 1 × RJ45 (HDBaseT HDMI & proprietary data)
  • 1 × 3.5 mm stereo mini-jack (infrared receiver)
• Outputs:

  • 1 × HDMI (uncompressed AV and data)
  • 1 × 9-pin D-sub (RS 232 data)
  • 1 × 3.5 mm stereo mini-jack (infrared emitter)
• PSU: 48 V_DC 0.83 A
• Dimensions (W × H × D): 12.8 × 2.5 × 10.8 cm
• Weight: 340 g
