4K HDBaseT extender kit reverse PoH LAN IR RS-232 100m - CYP PUV-1610-KIT

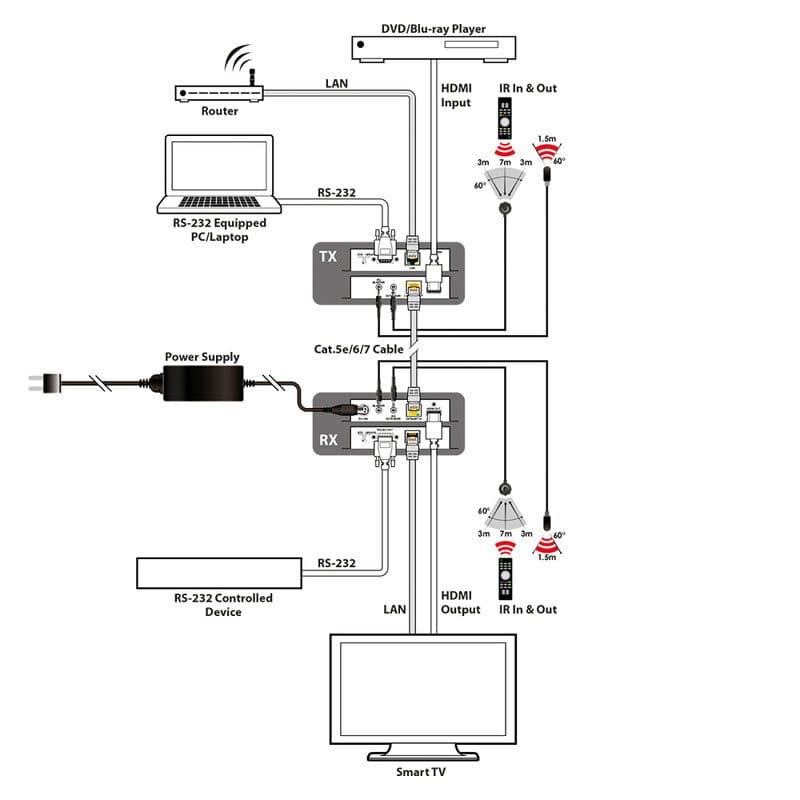

The PUV‑1610‑KIT is an HDBaseT1 transmitter and receiver kit designed to transmit video signals up to 4K UHD, along with HD audio, bidirectional IR, RS-232, PoH, and LAN, over a single Cat.6a/7 cable up to 100 meters. The system simultaneously transmits audio, video, control, network, and power over a single HDBaseT connection. A distinctive feature of the PUV‑1600 series is reverse powering: the mains-powered receiver supplies power to the transmitter, offering greater flexibility in professional installations. The kit is suitable for commercial AV installations requiring stable transmission of 4K signals, control, and network over long distances over a single cable. Main features Uncompressed video/audio up to 10.2 Gbps HDCP 2.2 compliant Resolutions: VGA - WUXGA, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 and YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 and YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) depending on the display's EDID 4K/2K and 4K UHD up to 70 meters via Cat. 5e/6 and 100 meters via Cat. 6a/7 1080p up to 100 meters via Cat. 5e/6/6a/7 Audio Up to 7.1CH and Dolby TrueHD, DTS-HD5-Play 5‑Play convergence: HDMI, LAN, PoE, and control (IR and RS-232) Supports 3D signals PoH from the mains-powered receiver User benefits Stable 4K distribution over long distances via a single Cat. 6a/7 cable Reverse power from the receiver for more flexible installations Compatibility with HD audio formats Network, control, and power integration via HDBaseT Areas of use Commercial AV installations Conference rooms and meeting rooms Education Corporate Multi-zone installations

Technical characteristics

TX

• Inputs:

  • 1 × HDMI (uncompressed AV and data)
  • 1 × 9-pin D-sub (RS 232 data)
  • 1 × 3.5 mm stereo mini-jack (infrared receiver)
• Outputs:

  • 1 × RJ45 (HDBaseT HDMI & proprietary data)
  • 1 × 3.5 mm stereo mini-jack (infrared emitter)
  • 1 × RJ45 (ethernet I/O IP)
• PSU: PoH
• Dimensions (W × H × D): 12.8 × 2.5 × 10.8 cm
• Weight: 660 g

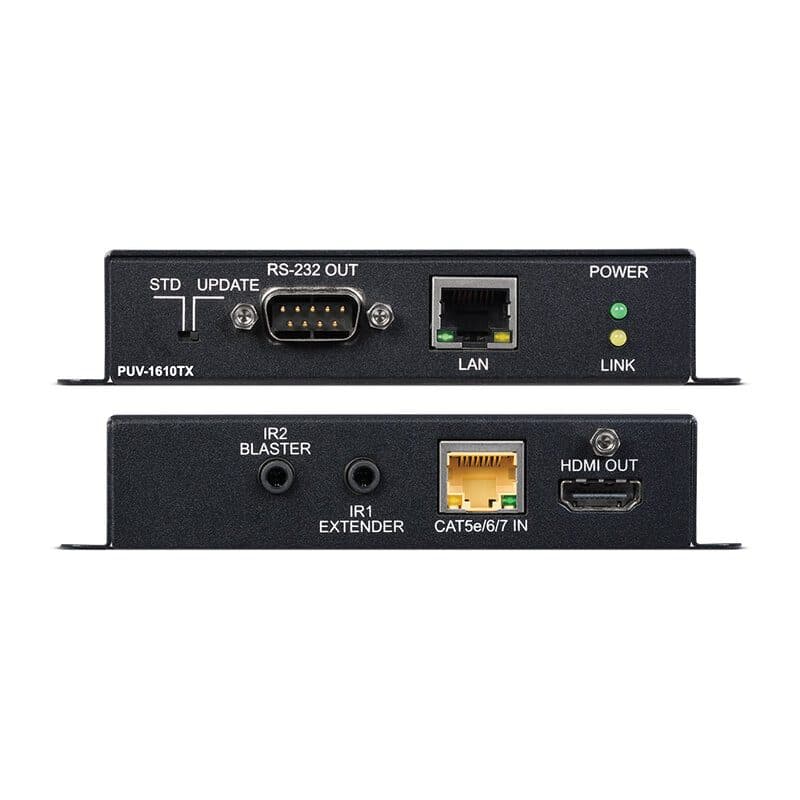

RX

• Inputs:

  • 1 × RJ45 (HDBaseT HDMI & proprietary data)
  • 1 × 3.5 mm stereo mini-jack (infrared emitter)
  • 1 × RJ45 (ethernet I/O IP)
• Outputs:

  • 1 × HDMI (uncompressed AV and data)
  • 1 × 9-pin D-sub (RS 232 data)
  • 1 × 3.5 mm stereo mini-jack (infrared receiver)
• PSU: 48 V_DC 0.83 A
• Dimensions (W × H × D): 12.8 × 2.5 × 10.8 cm
• Weight: 660 g
