HDBaseT1 4K UHD 5-Play PoH LAN 100m receiver - CYP CYP-PUV-1510RX

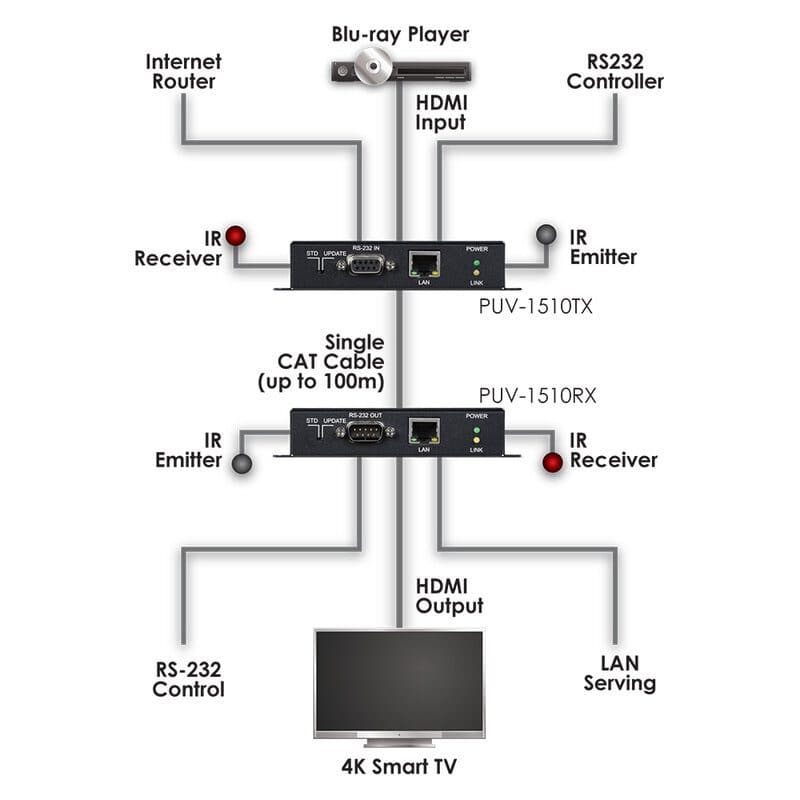

PUV‑1510RX is an HDBaseT1 receiver designed to receive video signals up to 4K UHD, along with HD audio, bidirectional IR, RS232, PoH, and LAN, over a single Cat.6a/7 cable up to 100 meters. The system simultaneously receives audio, video, control, network, and power over a single HDBaseT connection. This solution integrates advanced signal management features to ensure reliable results even in the most complex installations. The product is suitable for AV applications requiring stable transmission of 4K signals, control, and network over long distances over a single cable. Main features HDCP2.2 compliant Uncompressed video/audio up to 10.2 Gbps HDCP Repeating and CEC Functions Resolutions: VGA - WUXGA, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 and YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 and YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) based on the display's EDID 4K/2K and 4K UHD up to 70 meters via Cat.5e/6 and 100 meters via Cat.6a/7 1080p up to 100 meters via Cat.5e/6/6a/7 Up to 7.1 CH audio and Dolby TrueHD, DTS-HD 5-Play convergence: HDMI, LAN, PoH, and control (IR and RS-232) Supports 3D signals User benefits Stable 4K distribution over long distances via a single Cat.6a/7 cable Compatibility with HD audio formats Network, control, and power integration via HDBaseT Reliable operation in complex AV environments Advanced signal management for critical installations Areas of use Professional AV installations Conference rooms and meeting rooms Classrooms and education environments Corporate Multi-zone installations

Technical characteristics

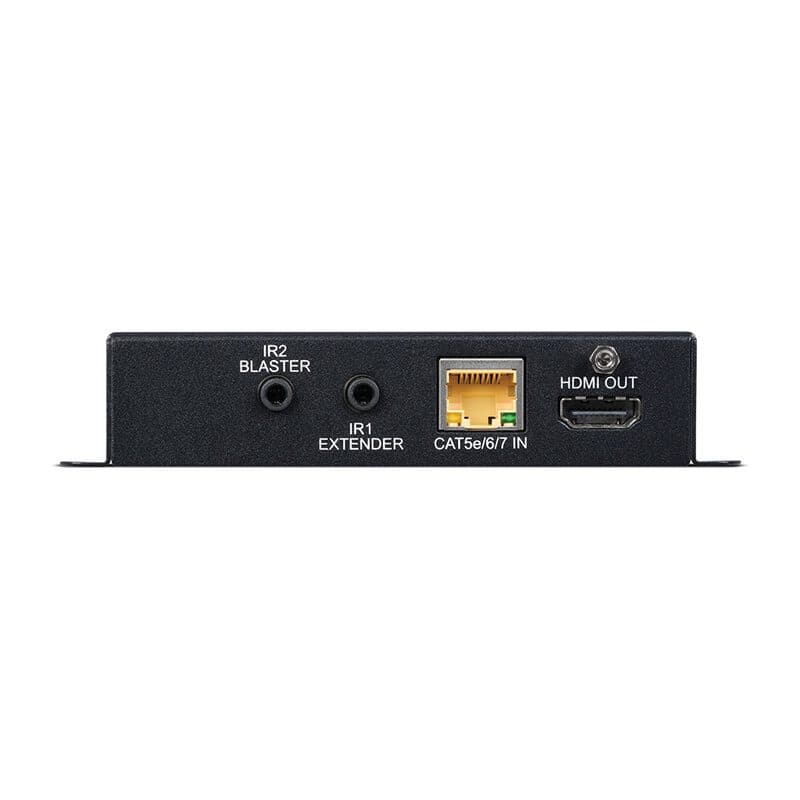

• Inputs:

  • 1 × RJ45 (HDBaseT HDMI & proprietary data)
  • 1 × 3.5 mm stereo mini-jack (infrared receiver)
  • 1 × RJ45 (LAN serving)

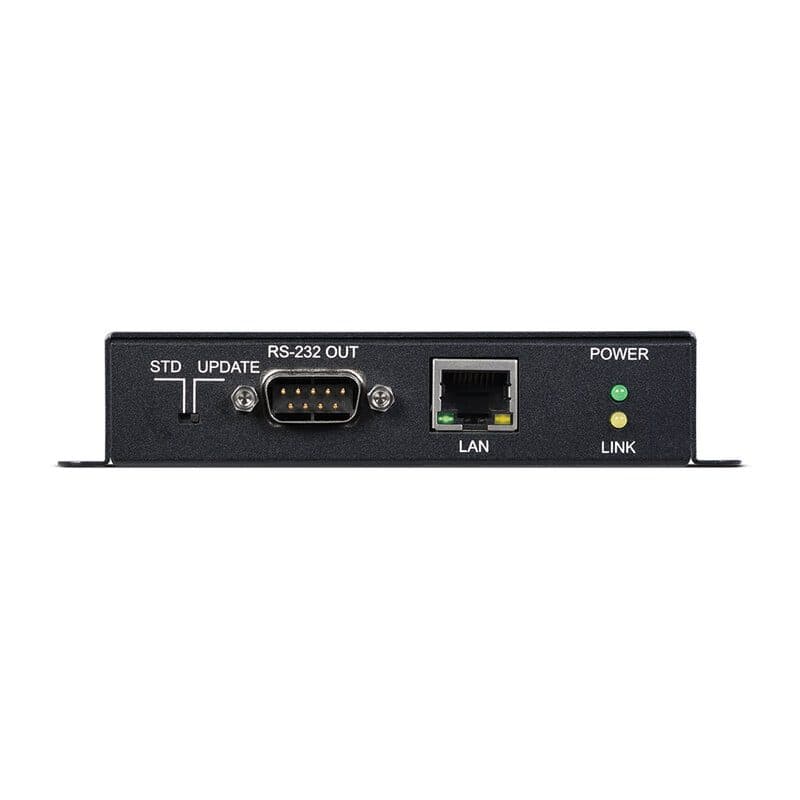

• Outputs:

  • 1 × HDMI (uncompressed AV and data)
  • 1 × 9-pin D-sub (RS 232 data)
  • 1 × 3.5 mm stereo mini-jack (infrared emitter)
• PSU: PoH
• Dimensions (W × H × D): 12.8 × 2.5 × 10.8 cm
• Weight: 200 g
