AV over IP 1G 4K HDMI USB-C transmitter - CYP CYP-IP-7000C-TX

1G AV over IP transmitter designed to distribute 4K HDMI signals over Ethernet, also integrating USB, IR, RS-232, and analog audio. Compared to traditional AV over IP transmitters, this model adds a USB-C input, making it ideal for modern laptops and mobile devices. It is part of the IP-7000 series, which allows installers to create fully scalable AV systems on dedicated IT infrastructure: from a simple point-to-point connection to complex multipoint-to-multipoint networks. The system can be expanded without real limits by adding transmitters and receivers as needed. Video and audio signals can be transmitted up to 100 meters via a Gigabit switch, with the option to further extend the distance by cascading multiple switches, without any loss of quality or perceptible delay. The device supports PoE, eliminating the need for external power supplies when connected to compatible switches. The IP‑7000C‑TX also integrates advanced features such as bidirectional IR pass-through, analog line IN/OUT, microphone input, and a USB system that allows you to use the entire AV network as a KVM hub, controlling keyboards, mice, and USB peripherals remotely. Control is extremely flexible: WebGUI, Telnet, RS‑232, OSD, and front panel controls. For large systems or AV-over-IP matrix switchers, the IP‑CS7 controller is recommended. Main features Transmission of video, audio, and control signals over a TCP/IP network in Unicast or Multicast mode Supports 0°, 180°, and 270° image rotation The transmitter's line IN input is sent directly to the line OUT and inserted into the receiver's HDMI output Transmitter and receiver can be powered via PoE from 802.3af-compatible Gigabit switches USB extension support for keyboards, mice, and storage devices, with IR bypass and RS-232 Control via WebGUI, Telnet, and front-panel commands User benefits Distributes 4K AV signals over an IP network with great flexibility Supports scalable configurations from point-to-point to complex multi-point systems Integrates KVM functions with USB extension Allows signal extension up to 100 m via Gigabit switches, with cascading capability Extensive audio options with Line IN, Line OUT, and microphone input Supports advanced control via WebGUI, Telnet, and RS-232 Areas of use Corporate environments 4K video distribution in conference rooms and meeting rooms Networked KVM installations for remote control of PCs and servers Digital signage Classrooms and training rooms Modular and scalable AV systems in large buildings or campuses

Technical characteristics

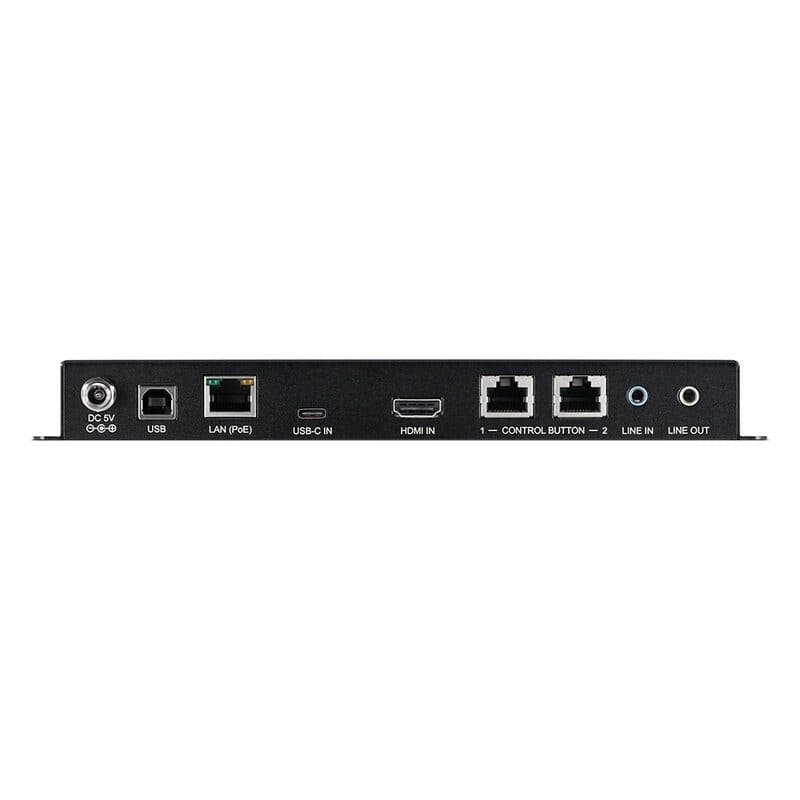

Interfaces

• Input ports: 1 x HDMI (Type‑A), 1 x USB Type‑C, 1 x unbalanced stereo (3.5 mm)
• Output ports: 1 x analog stereo (3.5 mm), 1 x LAN (RJ‑45)

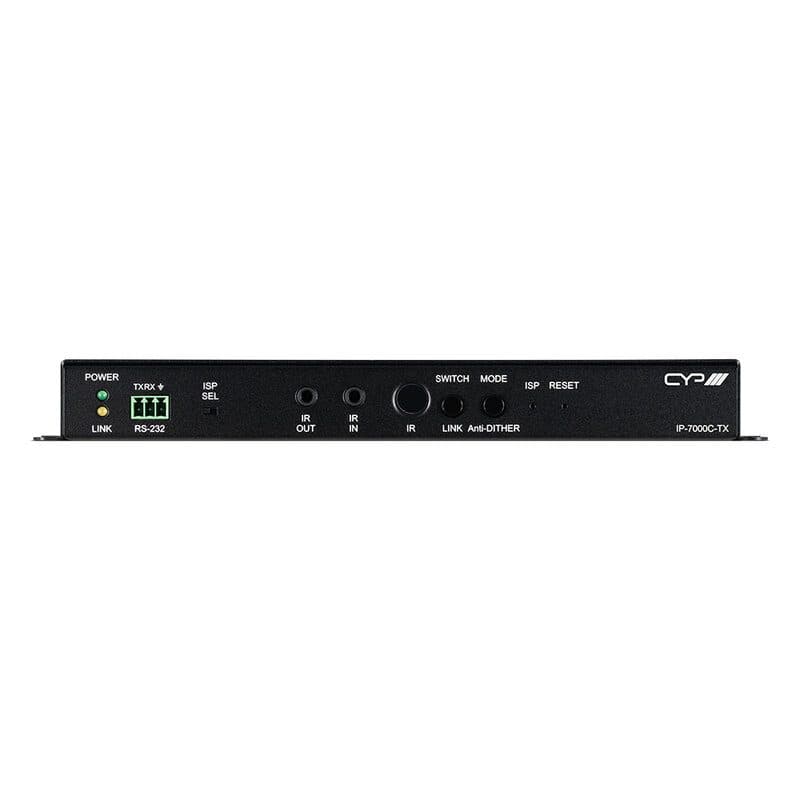

• Control I/O: 1 x USB (Type‑B), 1 x IR extender (3.5 mm), 1 x IR blaster (3.5 mm), 1 x RS‑232 (DB‑9), 2 x control buttons (RJ‑45)

Video

• HDMI compliance: HDMI 2.0 (DVI 1.0)
• HDCP compliance: 2.2
• Input signal type: 4K @ 60 8‑bit YUV 4:2:0
• Output signal type: 4K @ 60 8‑bit YUV 4:2:0
• Max. input resolution: HDMI 4096 x 2160p @ 60 (YUV 4:2:0); USB‑C 4096 x 2160p @ 60 (YUV 4:2:0)
• Max. output resolution: LAN 4096 x 2160p @ 30

Audio

• Input signal types: HDMI, unbalanced stereo
• Output signal types: unbalanced stereo
• Digital formats: HDMI 2‑channel LPCM, 8‑channel LPCM, standard Bitstream

Power

• Power supply: 5 V_DC / 2.6 A  (locking)
• Power consumption: 5.5 W (full load)

Field firmware update

• WebGUI

Enclosure

• Chassis material: metal (steel)
• Chassis color: black
• Dimensions (case only): 23.15 x 2.5 x 10.8 cm
• Dimensions (all inclusive): 23.15 x 2.5 x 12 cm
• Weight: 660 g
