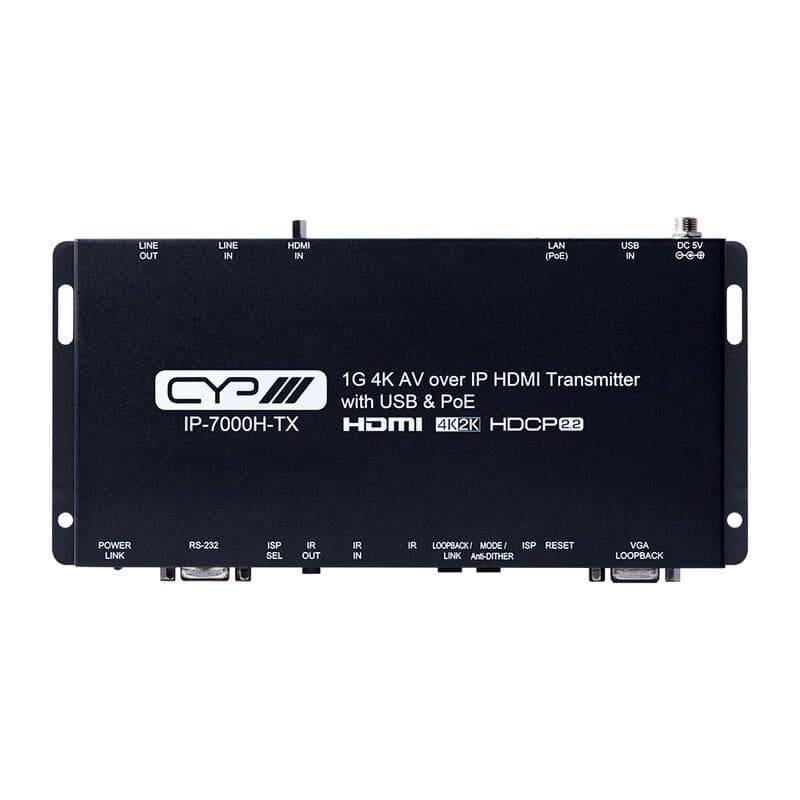

Transmitter AV over IP 1G 4K HDMI, loopback VGA - CYP CYP-IP-7000H-TX

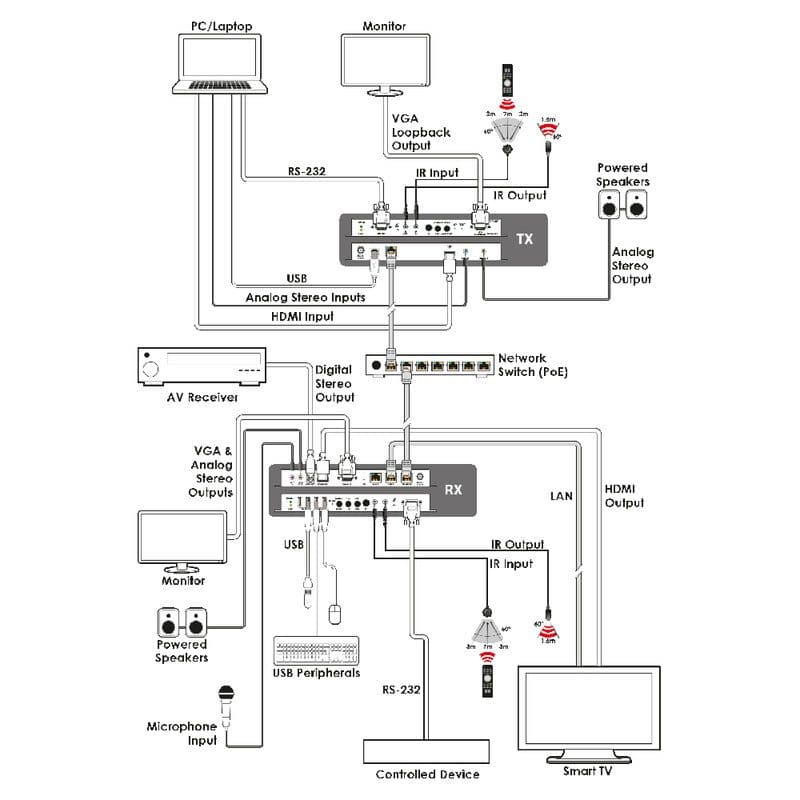

1G AV over IP transmitter designed to distribute 4K HDMI signals over Ethernet, also integrating USB, IR, RS-232, and analog audio. Unlike traditional AV over IP transmitters, this model also includes a VGA loopback output, useful for connecting a local monitor during signal transmission. It is part of the IP-7000 series, which allows installers to create fully scalable AV systems on dedicated IT infrastructure: from a simple point-to-point connection to complex multipoint-to-multipoint networks. The system can be expanded without real limits, adding transmitters and receivers according to installation needs. Video and audio signals can be transmitted up to 100 meters via a Gigabit switch, with the option to further extend the distance by cascading multiple switches, without any loss of quality or perceptible delay. The device supports PoE, eliminating the need for external power supplies when connected to compatible switches. The IP‑7000H‑TX also integrates advanced features such as bidirectional IR pass-through, analog line IN/OUT, microphone input (from the receiver), and a USB system that allows you to use the entire AV network as a KVM hub, controlling keyboards, mice, and USB peripherals remotely. Control is extremely flexible: WebGUI, Telnet, RS‑232, OSD, and front panel controls. For large systems or AV-over-IP matrices, the IP‑CS7 controller is recommended. Main features Transmission of video, audio, and control signals over a TCP/IP network in Unicast or Multicast mode Supports 0°, 180°, and 270° image rotation The transmitter's line IN input is sent directly to the line OUT and inserted into the receiver's HDMI output Transmitter and receiver can be powered via PoE from 802.3af-compatible Gigabit switches USB extension support for keyboards, mice, and storage devices, with IR bypass and RS-232 Control via Web GUI, Telnet, and front panel commands VGA loopback output for local monitor User benefits Distributes 4K AV signals over an IP network with great flexibility Supports scalable configurations from point-to-point to complex multi-point systems Integrates KVM functions with USB extension Allows signal extension up to 100 m via Gigabit switches, with cascading capability Extensive audio options with Line IN, Line OUT, and microphone input Supports advanced control via WebGUI, Telnet, and RS-232 Areas of use Corporate environments 4K video distribution in conference rooms and meeting rooms Networked KVM installations for remote control of PCs and servers Digital signage Classrooms and training rooms Modular and scalable AV systems in large buildings or campuses

Technical characteristics

Interfaces

• Input ports: 1 x HDMI (Type‑A), 1 x unbalanced stereo (3.5 mm)
• Output ports: 1 x CAT5e/6/7 (RJ‑45), 1 x unbalanced stereo (3.5 mm), 1 x VGA
• Control I/O: 1 x USB (Type‑B), 1 x IR extender (3.5 mm), 1 x IR blaster (3.5 mm), 1 x RS‑232 (DB‑9)

Video

• HDMI compliance: HDMI 2.0 (DVI 1.0)
• HDCP compliance: 2.2
• Input signal type: 4K @ 60 8‑bit YUV 4:2:0
• Output signal type: 4K @ 60 8‑bit YUV 4:2:0
• Max. input resolution: HDMI 4096 x 2160p @ 60
• Max. output resolution: CAT5e/6/7 4096 x 2160p @ 60; VGA 1920 x 1200p @ 60 RB

Audio

• Input signal types: HDMI, unbalanced stereo
• Output signal types: unbalanced stereo
• Digital formats: HDMI 2‑channel LPCM, 8‑channel LPCM, standard Bitstream

Power

• Power supply: 5 V_DC / 2.6 A
• Power consumption: 7.15 W (full load)

Field firmware update

• WebGUI

Enclosure

• Chassis material: metal (steel)
• Chassis color: black
• Dimensions (case only): 23.15 x 2.5 x 10.8 cm
• Dimensions (all inclusive): 23.15 x 2.5 x 12 cm
• Weight: 660 g
