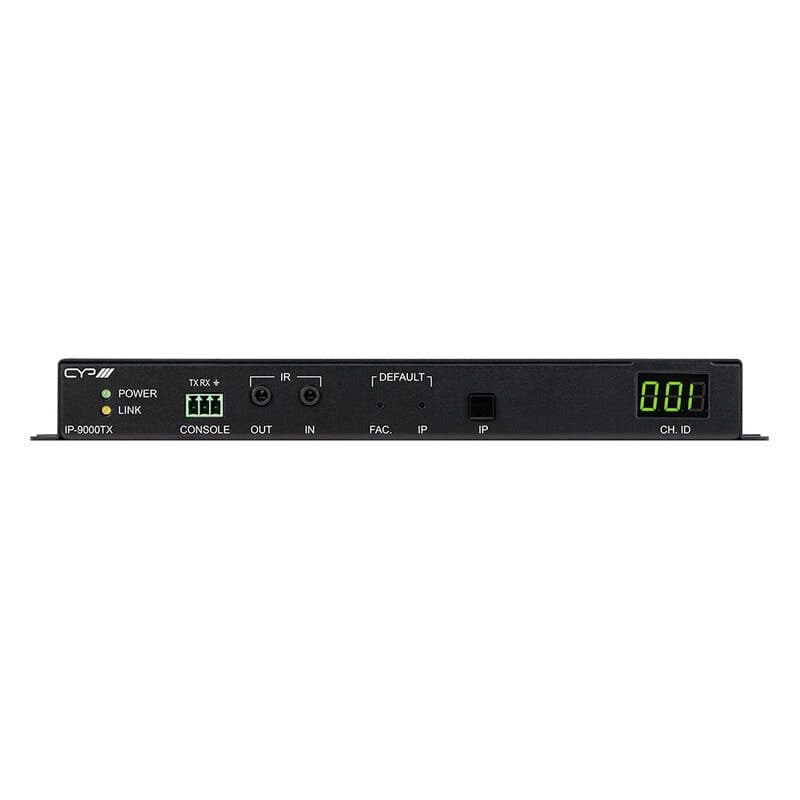

AV over IP 1G 4K60 4:4:4 HDR transmitter - CYP CYP-IP-9000TX

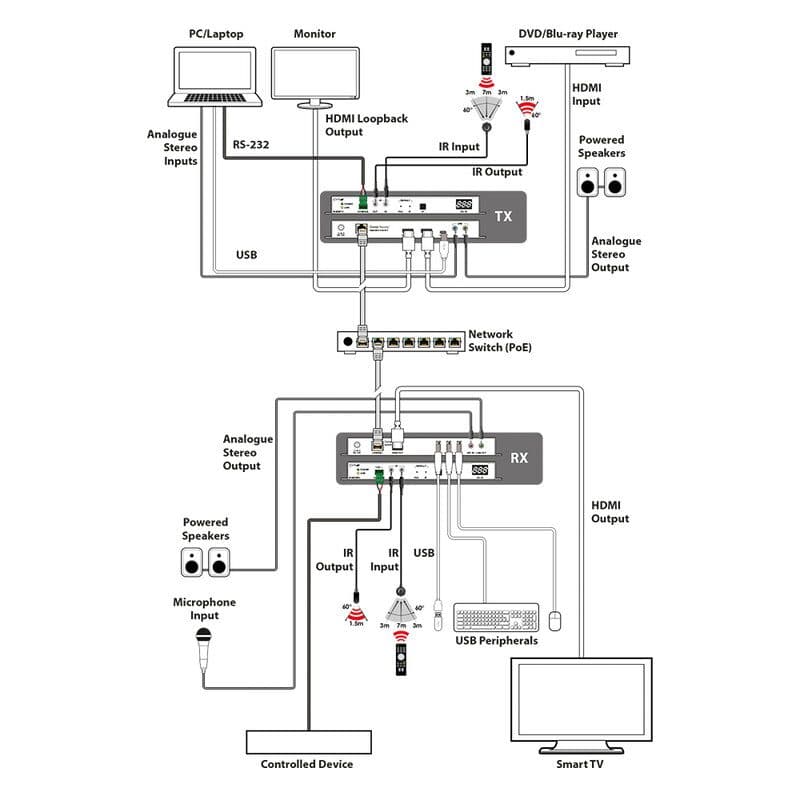

1G AV over IP transmitter designed to distribute 4K 60 4:4:4 AV signals with advanced HDR support over Ethernet, also integrating USB 2.0, IR, RS-232, analog audio, and HDMI loopback. It supports Unicast and Multicast modes, enabling point-to-point configurations, distributed AV matrix switchers, and large Video walls. The device transmits Ultra HD signals up to 100 meters over a single CAT5e/6/7 cable, with the option to extend the distance further by cascading Gigabit switches, without quality loss or perceptible delay. PoE (802.3af) support simplifies installation by eliminating the need for external power supplies. The IP-9000TX offers advanced features such as USB over IP, USB roaming, breakaway A/V routing and control, IR and RS-232 pass-through, analog line in/out, and HDMI loopback. Compatibility with video formats such as HDR10, HDR10+, Dolby Vision, and HLG makes it ideal for high-quality professional installations. Control is available via WebGUI, IP Master Controller (IP-CS9000), and Telnet, offering centralized and flexible management even in complex systems. The device is also Dante Ready, allowing optional integration into Dante and AES67 audio networks. Main features 4K @ 60 1 Gbps AV over IP transmitter in Unicast or Multicast mode Compatible with 4K @ 60 4:4:4, HDR10, HDR10+, Dolby Vision, and HLG Latency of less than 1 frame at 4K @ 60 IP interface via RJ-45 port Supports KVM over IP (USB flash drive, isochronous/bulk USB webcam, keyboard and mouse) and USB roaming Supports PoE-PD (IEEE 802.3af) Bidirectional IR and RS-232 pass-through Control via WebGUI, IP Master Controller, and Telnet 1 x HDMI input and 1 x HDMI loopback output Compatible with external control systems (IP Master Controller) for advanced features Supports independent breakaway routing for audio, video, and control Supports numerous audio formats, including 8-channel LPCM and standard Bitstream The analog Line IN input is automatically embedded in the stream and Can be routed to any receiver Dante Ready compatible, can be integrated into existing Dante and AES67 audio networks Dante Ready allows you to add Dante functionality to existing products Additional channels and features can be activated as the installation grows User benefits 4K 60 4:4:4 AV distribution with advanced HDR support Extremely low latency, ideal for interactive and KVM applications HDMI loopback for local source monitoring USB over IP and USB roaming for remote control of PCs and peripherals Breakaway routing for maximum flexibility in managing audio, video, and control Remote control of connected devices Optional integration into Dante / AES67 audio networks Areas of use 4K 60 AV distribution in corporate environments and meeting rooms Remote KVM systems for controlling PCs, servers, and workstations Professional video walls in commercial, retail, hospitality, and control room environments High-resolution digital signage with HDR content Classrooms, training rooms and advanced training environments Distributed AV infrastructures in large buildings, campuses, and conference centers Broadcast and control room installations requiring low latency and flexible routing Integration into Dante / AES67 audio networks via the Dante Ready option

Technical characteristics

Interfaces

• Input ports: 1 x HDMI (Type-A), 1 x stereo audio (3.5 mm)
• Output ports: 1 x HDMI (Type-A), 1 x mono audio (3.5 mm)
• Input / control port: 1 x GbE LAN (RJ-45)
• Pass-through ports: 1 x IR extender (3.5 mm), 1 x IR blaster (3.5 mm), 1 x RS-232 (Type-C), 1 x USB 2.0 (Type-A)

Video

• HDMI compliance: HDMI 2.0 (DVI 1.0)
• HDCP compliance: HDCP 2.2
• Input signal type: 4096 x 2160p @ 60 8-bit RGB
• Output signal type: 4096 x 2160p @ 60 8-bit RGB
• Max. input resolution (HDMI): 4096 x 2160p @ 60
• Max. output resolution (LAN streaming): 4096 x 2160p @ 60

Audio

• Digital formats (HDMI): LPCM (8 channels), Bitstream, High Bit Rate Bitstream
• Line IN/OUT: LPCM (2 channels)
• Line IN: 2 V_RMS, S/N ratio > 80 dB (1 kHz @ 0 dBFS)
• Line OUT: 2 V_RMS, S/N ratio > 80 dB (1 kHz @ 0 dBFS)

Power

• Power supply: PoE (802.3af) or 12 V_DC / 1.25 A
• Power consumption: 7.19 W

Field firmware update

• WebGUI

Enclosure

• Chassis material: metal (steel)
• Chassis colour: black
• Dimensions (case only): 23.15 x 2.5 x 10.8 cm
• Dimensions (all inclusive): 23.15 x 2.5 x 12 cm
• Weight: 660 g
