Full HD video switcher with 12 SDI/HDMI inputs - DATAVIDEO DTV-2200-3030

Completely customizable 12 input full HD production switcher. The SE-3200 is equipped with 12 inputs (8x SDI + 4x HDMI) and 9 outputs (6x SDI + 3x HDMI) to help you produce a sophisticated and professional live event. Supports full HD 1080P with scaling on each available input. The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also have a built-in input scaler, for up and down conversion on each available input. Create stunning video effects with advanced features. Advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE. Choose from a variety of pre-saved animated stinger transitions and 50 virtual set bac kgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos. All 3200 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included. Custom Multiview layout & dual Multiview output. Connect up to two displays to all 3200 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own! Flex Source gives you nearly the power of a 2 M/E switcher, in a 1 M/E switcher! Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button. The Flex Source provides 4 PIPs with 3D Borders, with Bac kground layer and an additional Key Layer. Up to 4 channels of switchable chromakey with our unique "Key tie" functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions. Create up to 8 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including our unique 3D borders. Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!

Video Standard	Full HD
Video Format	1080p 50/59.94/60 Hz 1080i 50/59.94/60 Hz 720p 50/59.94/60 Hz
Video Processing	SDI: 4:2:2 HDMI: YUV 4:2:2, RGB: 4:4:4
Input Routable / Crosspoint	All 12, repeatable

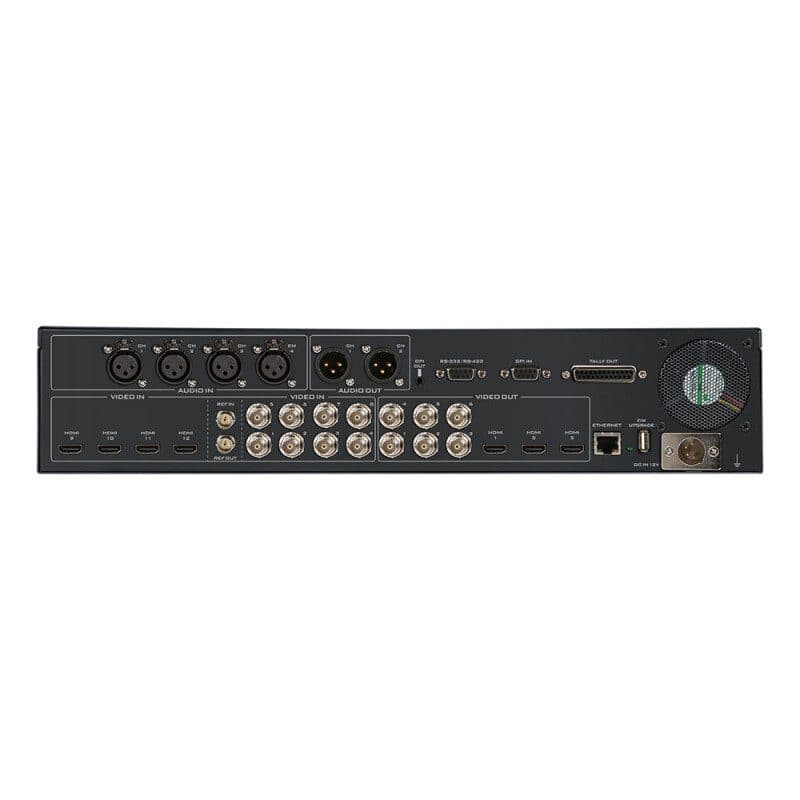

Video Input	8x SDI, 4x HDMI
Computer Graphic Interface	4 via HDMI
Video Output	6x SDI Outputs assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source 3x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
Down-converted Output	1x SDI
Built-in Multi-view Monitoring Out	HDMI & SDI assignable
Analogue Audio Input	4x Balanced XLR
Analogue Audio Output	2x Balanced XLR
Digital Embedded Audio Support	Input 2 channels, Output 4 channels
Audio Delay Calibration	Yes
Chromakey	4
Title Creator	Yes, CG-200 software free download
USK	4x Keyer support Chromakey/ Linear/ Luma Key
DSK	2x DSK support Lumakey & Linear key (Key / Fill)

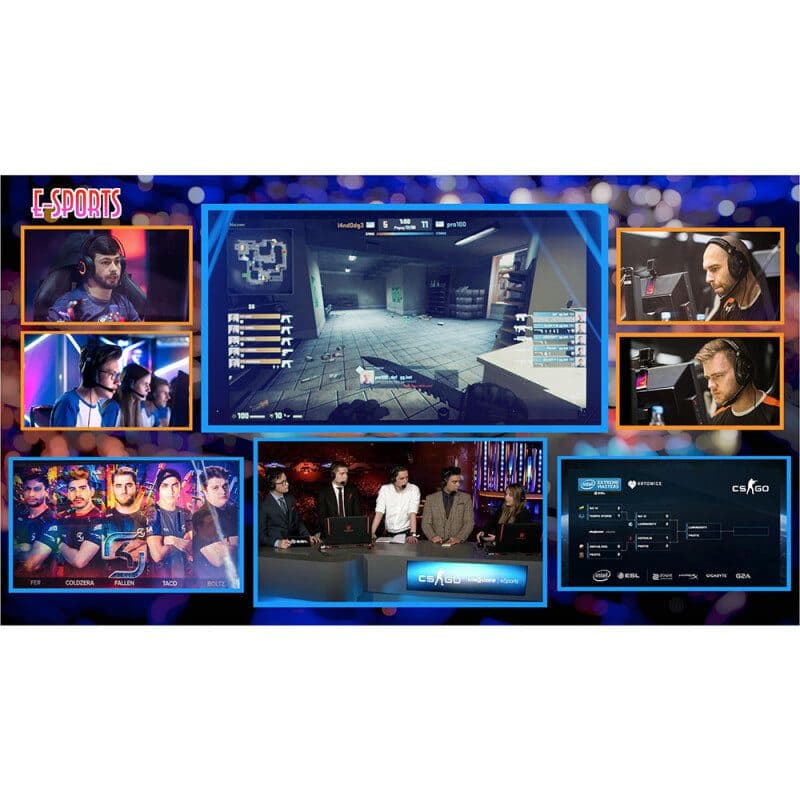

Picture in Picture	8 (4x PIP, 4x Flex Source)
Logo Insertion	2
Still Store	999+
Effects	DVE, FTB, Cut, 32 Wipe with border
Transition Preview	Full transitions preview
Sync / Reference In/Out	Built-in Genlock Support external sync with loop thru
tallyOutput	1x D-sub 25-pin, dual color
PC Remote Control	RS-232 / DVIP (Ethernet)
Built-in Audio Mixer	N/A
Special Features	4 User Memory Preset Free Virtual Set and Stinger transition included

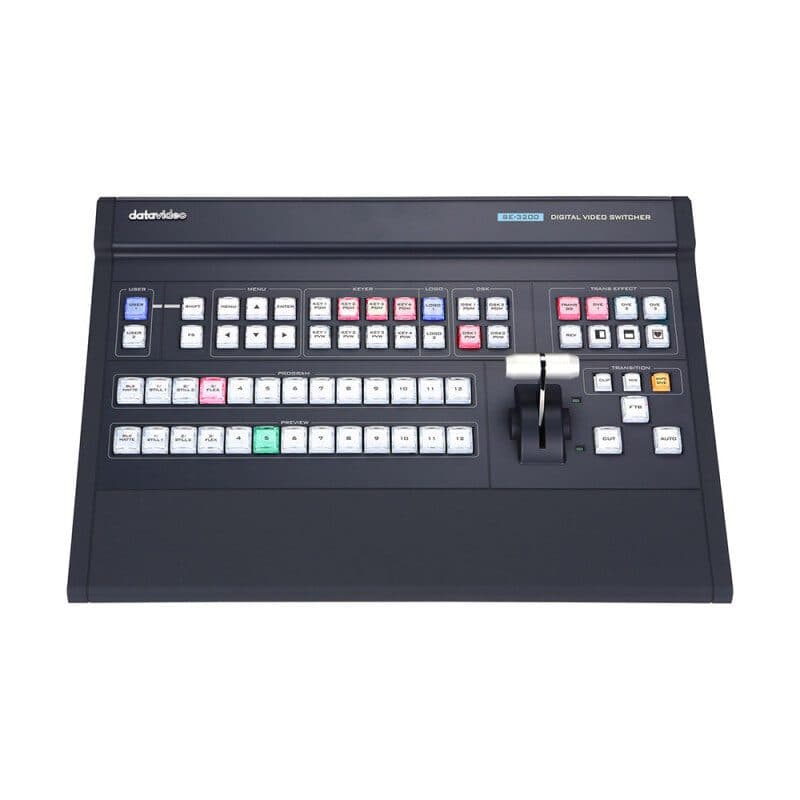

Chassis	2 units, 2RU rack-mount mainframe
Dimension (L x W x H)	433 x 312 x 76 mm (switcher) 432 x 252 x 88 mm (main unit)
Weight	4 kg
Power	DC 12 V, 69 W
Operating Temp. Range	0~40 °C
Options	• • TPC-700 • • CB-46 • • CB-47 • • CB-60 • • CB-61 • • CB-62
What's in the box	1 x SE-3200 Main Unit 1 x SE-3200 Control Board 2 x AD Switch DC 12 V 1 x AC Cord 1 x DB9P TO DB9P Cable 12 x Screw 2 x 2U Ear Rack 1 x Thank You Card
