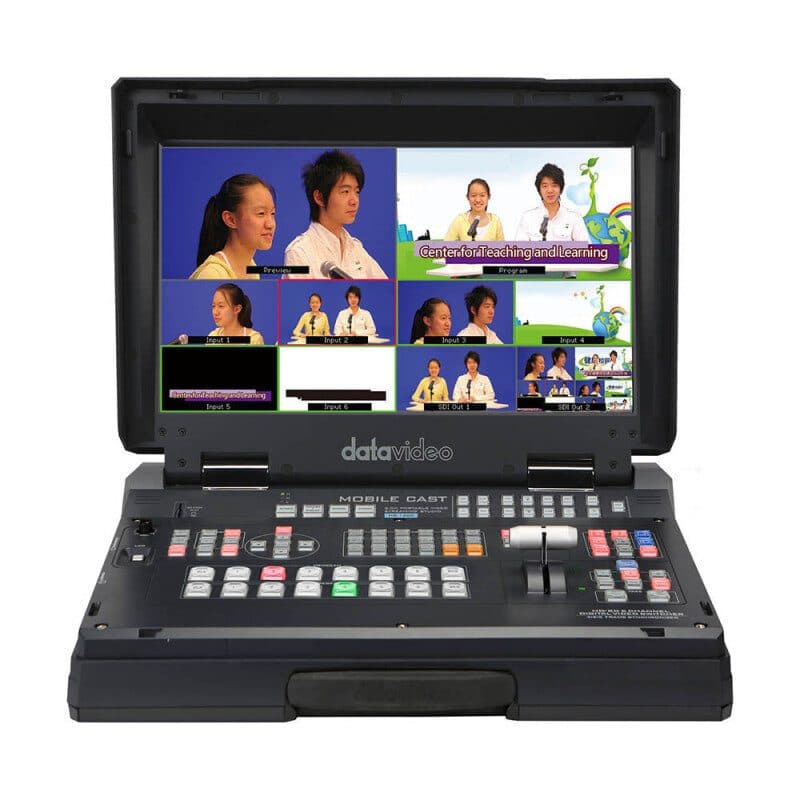

Portable Full HD H.264 streaming video switcher 17,3" monitor - DATAVIDEO DTV-2200-2016

The HS-1300 brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time. Compact design suited for medium-sized productions. The HS-1300 offers a small footprint and supports up to 6 video inputs in HDMI and SDI, and 5 Video Outputs (SDI x 2 + HDMI x 3) Built-in H.264 recorder for SD cards. The HS-1300 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website. Streaming to Facebook Live, YouTube, Twitch, and more. It also supports different bit-rate for recording to SD card and streaming function. Built-in virtual set bac kgrounds. Choose between a variety of pre-saved virtual set bac kgrounds. Built-in 9 animations. Choose between a variety of pre-saved animated stinger transitions for your show. You can save a complex process into a user memory, turning multiple tasks into a one-finger job. Built-in Monitor Display. 17.3" HD TFT LED backlit monitor with resolution of 1600x900.

Video Standard	HD
Video Format	1080i 50/59.94/60 Hz 720p 50/59.94/60 Hz
Input Routable / Crosspoint	All 6, repeatable
Video Input	4 x HD-SDI 2 x HDMI
Computer Graphic Interface	2 via HDMI
Down-converted Output	N/A
Video Output	3x HDMI 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview
Audio Input	2x Balanced XLR
Audio Output	1x Stereo headphone
Digital Embedded Audio Support Input	Input 2 channels, Output 2 channels
A+V Switching	Yes
USK	2x USK support Chromakey
DSK	2, support Lumakey & Linear key (Key / Fill)
Picture in Picture	1
Logo Insertion	N/A
Built-in Audio Mixer	N/A
Built-in Monitor Display	17.3" HD TFT LED backlit, 1600x900 pix
Built-in Intercom & Tally	N/A
Streaming Video Encode	H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
Streaming Audio Encode	AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48 kHz, 16bit
Streaming Protocol	TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP RTMP/RTMPS (Publish)
Streaming Control	Web browser UI for configuration and control Socket commands
Recording File System	FAT, exFAT, NTFS
Recording File Format	MP4
Recording Setting Control	Web UI for system configuration and control
Special Features	Streaming encoder and recorder 2 chromakey virtual studio 9 stinger transition and 30 virtual sets included
Dimension (L x W x H)	455 x 355 x 134 mm
Weight	16.3 Lbs (7.4 kg), Reinforce Plastic Case
Power	DC 12 V, 5A
Operating Temp. Range	0~40 °C
Options	CB-22H/23H/46/47/60/61/62
What's in the Box
Content	1 x HS-1300 Product 1 x AD Switch DC 12 V with AC Cord 1 x Thank You Card
