P20 is one of two new, sophisticated and powerful presentation switchers produced by Pixelhue.
Based on a high-performance FPGA hardware architecture, it is capable of processing 4K 60p 4:4:4 10-bit video with high-performance image de-interlacing. It comes with a wide variety of 4K connectors to interface with all the latest video devices. Inputs include HDMI 2.0, DP1.2, 12G-SDI and 8 x 10G fiber optic ports. The latter “copy” the HDMI 2.0 outputs to allow the switchers themselves to transmit signals to LED display controllers over a distance of up to 10 km without fiber converters, with obvious savings in costs.
The available inputs are 8 x DP 1.2 / HDMI 2.0 + 4 x 12G-SDI, while the outputs are 8 x HDMI 2.0. In addition to these, there are 4 x AUX HDMI 1.3 outputs that can be connected to auxiliary devices such as teleprompters and a dedicated Multiviewer output provided for live monitoring of all inputs and outputs from a display.
The Pixelhue P20 can operate in both switcher and PGM modes depending on the type of application. In the first case, you have two 4K x 2K @ 60 Hz outputs. In PGM mode, on the other hand, 8K x 4K, always at 60 Hz. Thanks to this dual working mode, true 4K inputs / outputs without color sub-sampling, high-quality video processing with smooth transitions and displays, flawless image mosaic, various transition effects, this P-series presentation switcher is the perfect solution for medium-sized live events and many fixed installations that require high reliability, ease of use, the best possible image quality and cutting-edge 4K live processing capabilities.
In terms of layers, P20 supports 12 DL (2 x MAIN + 10 x PIP) or 8 DL (4 x MAIN + 4 x PIP) with the possibility for users to freely organize their layout. In addition, up to 128 presets are available to meet different needs. High-resolution images can be captured from live inputs and outputs and used as background. In addition, the P20 is equipped with advanced DSK features including luma key and chroma key and supports SDR, HDR10 and HLG with conversion between these formats.
The control options are very flexible, making it an extremely versatile device but also simple to use. These options include backlit buttons on the front panel and a 5” graphic LCD display for direct access to functions, or alternatively the use of the U5 live console, the use of an intuitive Web GUI interface and stream deck. Various backup methods are also supported, including input source backup, output source backup and device backup to safeguard events. The switch from the primary device to the backup device is instantaneous.
Finally, we highlight the excellent build quality and electronic components that characterize P20, making it extremely reliable in the most demanding conditions of use. The manufacturer has carried out a series of rigorous drop, shock / vibration and thermal tests in order to guarantee perfect functionality even in extreme conditions of use, such as in the touring and rental sectors. 24 hours a day, 7 days a week.
Users benefits
High image quality (4K 60p 4:4:4 10-bit)
Wide range of connectors, including HDMI 2.0, DP1.2, 12G-SDI and 8 x 10G fiber optic ports
Dual switcher / PGM operation mode
Smooth transitions and displays
Various control options
Various backup methods so that events can continue without interruption in the event of problems
High reliability even in the most demanding use
Areas of use
Live events (concerts, conferences, live shows...)
Fixed installations in theaters, conference rooms, convention centers
TV productions
Sports events
Technical characteristics
- Switching between switcher mode and PGM only mode

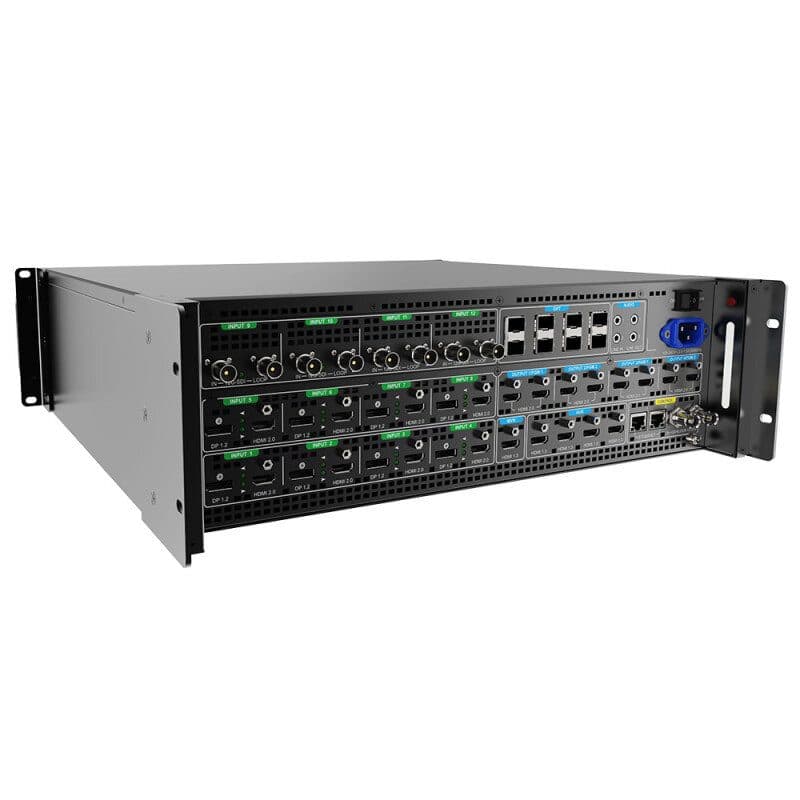

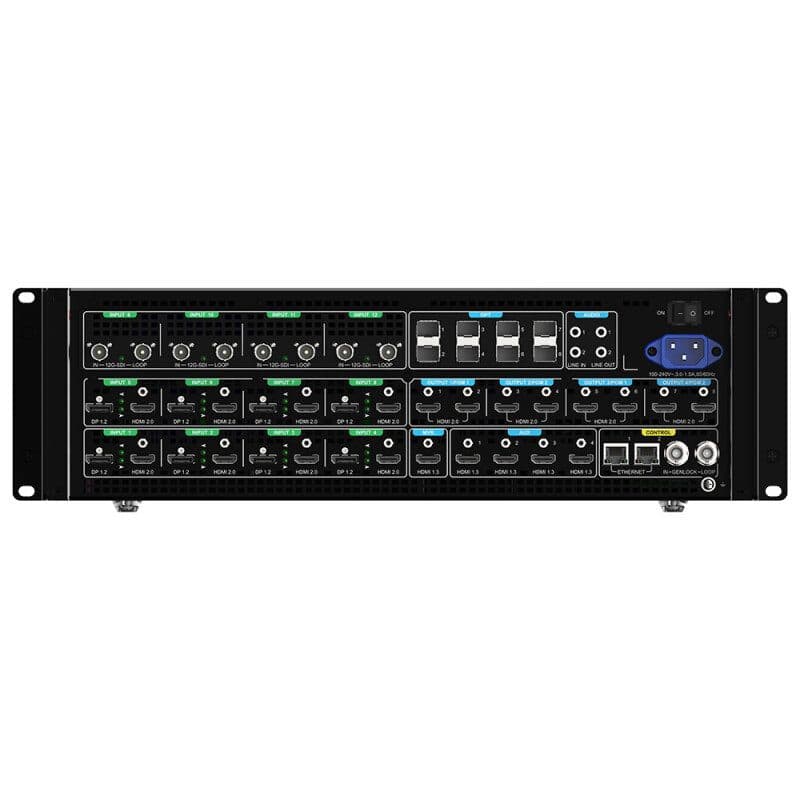

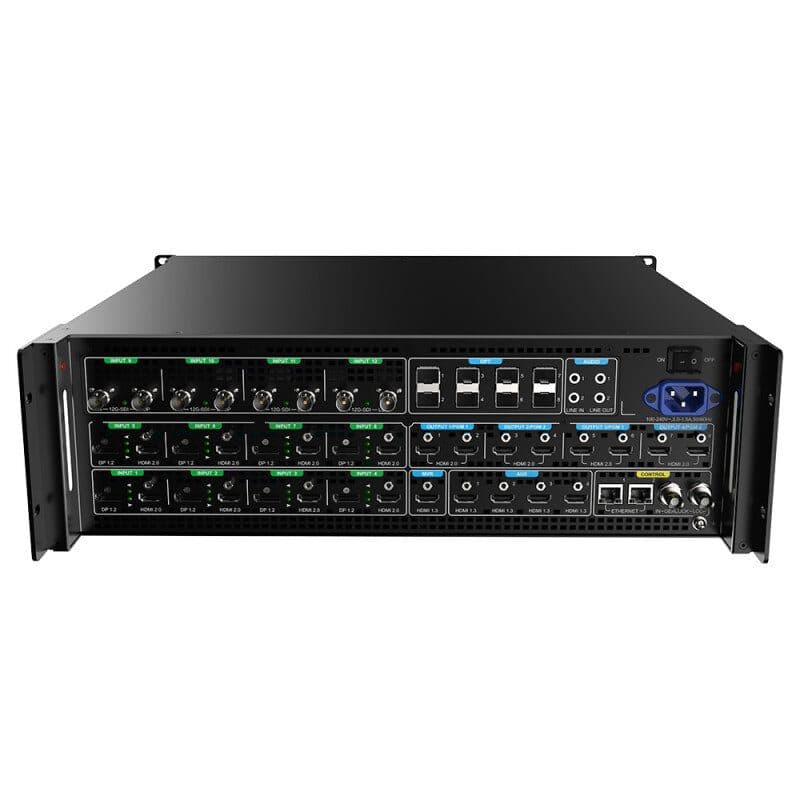

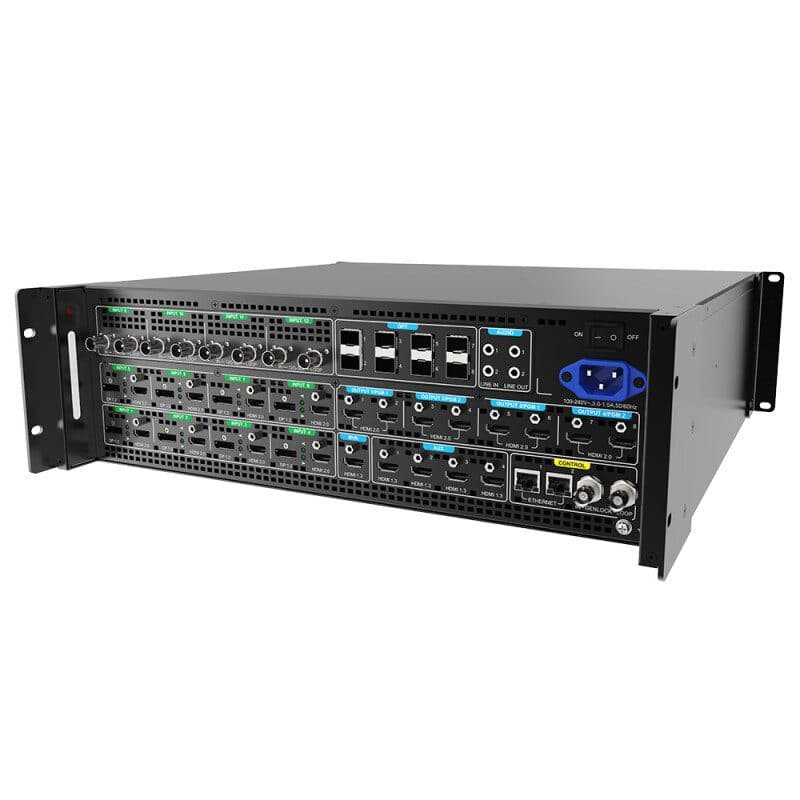

- 4K I/O: HDMI 2.0, DP 1.2 and 12G-SDI
- 10G optical fiber ports for copying output
- 3.5 mm dual-channel audio mini-jack (reserved)
- 8 x DP 1.2/HDMI 2.0, 4 x 12G-SDI (in & loop)
- 8 x HDMI 2.0 outputs
- Up to 2 x 4K x 2K @ 60 Hz outputs in switcher mode and output resolution per P20 in PGM only mode up to 8K x 4K @ 60 Hz
- AUX outputs allowing auxiliary devices such as teleprompters to be connected
- A dedicated Multiviewer output allowing the PGM & PVW screens and all the connected sources to be monitored from one display
- 2 x Gigabit Ethernet ports used for control and monitoring
- Easy replacement of output connectors with software
- Up to 12 DL layers (2 x MAIN + 10 x PIP) or 8 DL layers (4 x MAIN + 4 x PIP)
- Up to 128 presets
- Up to 255 BKGs & logos (512 MB)
- 8 bit / 10 bit / 12 bit video sources accepted
- Free conversion between SDR, HDR10 and HLG
- Advanced DSK capability: chroma key and luma key
- High-performance image deinterlacing
- High-precision output synchronization in PGM only mode
- Various transition effects: fade and cut
- Custom test patterns
- Full-link HDCP for safer content transmission
- Device backup, output copying, and input backup to guarantee stability and reliability
- Visualized live monitoring of input and output connector statuses

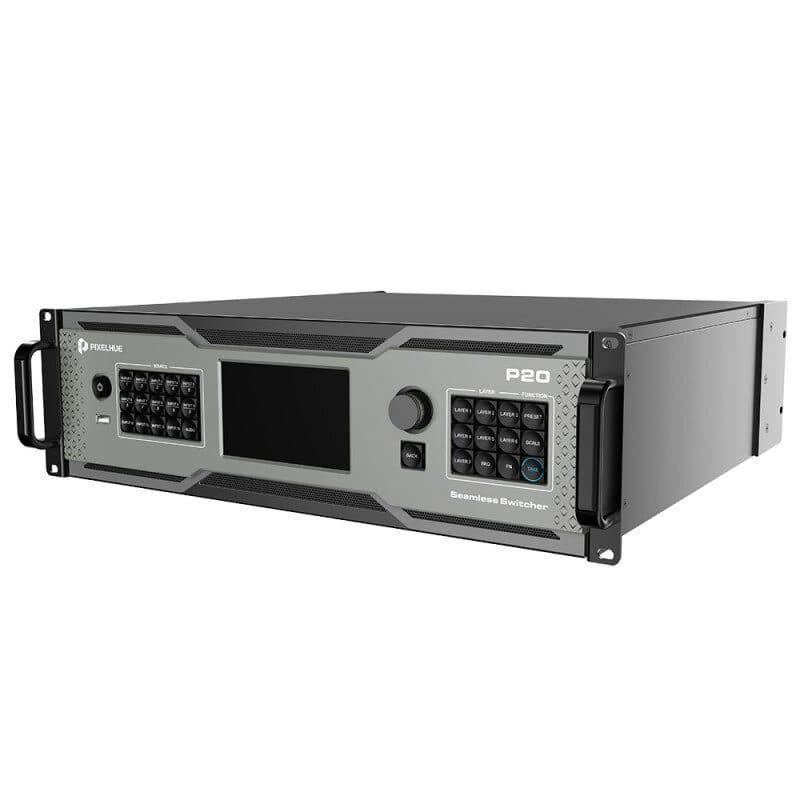

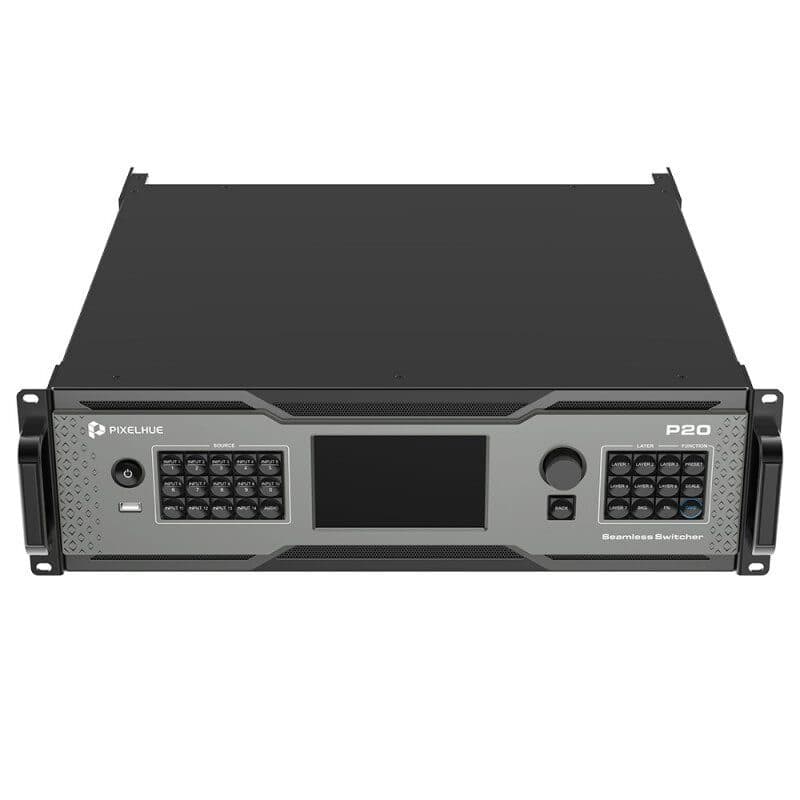

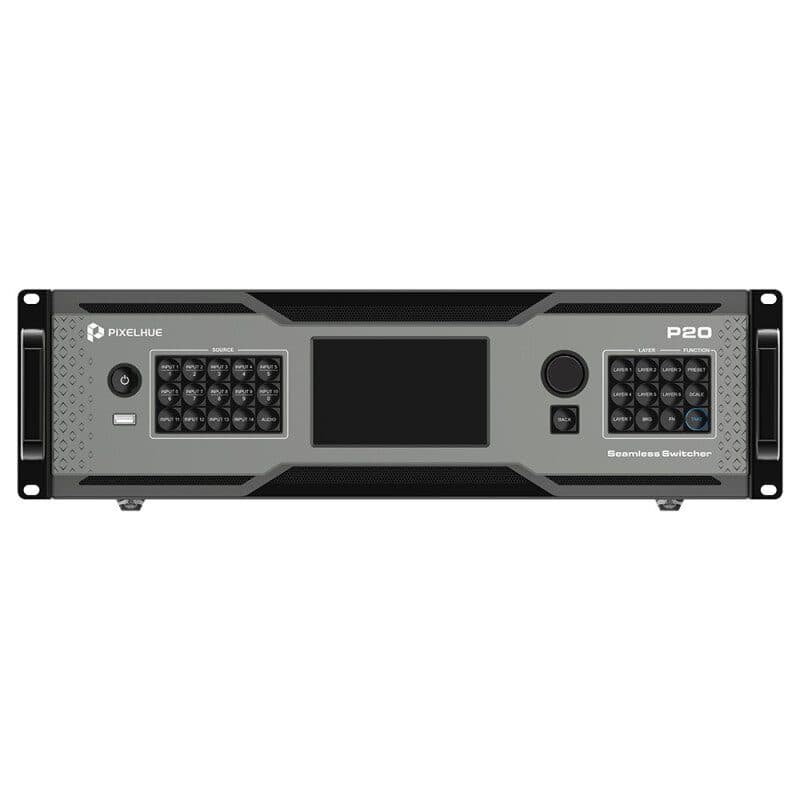

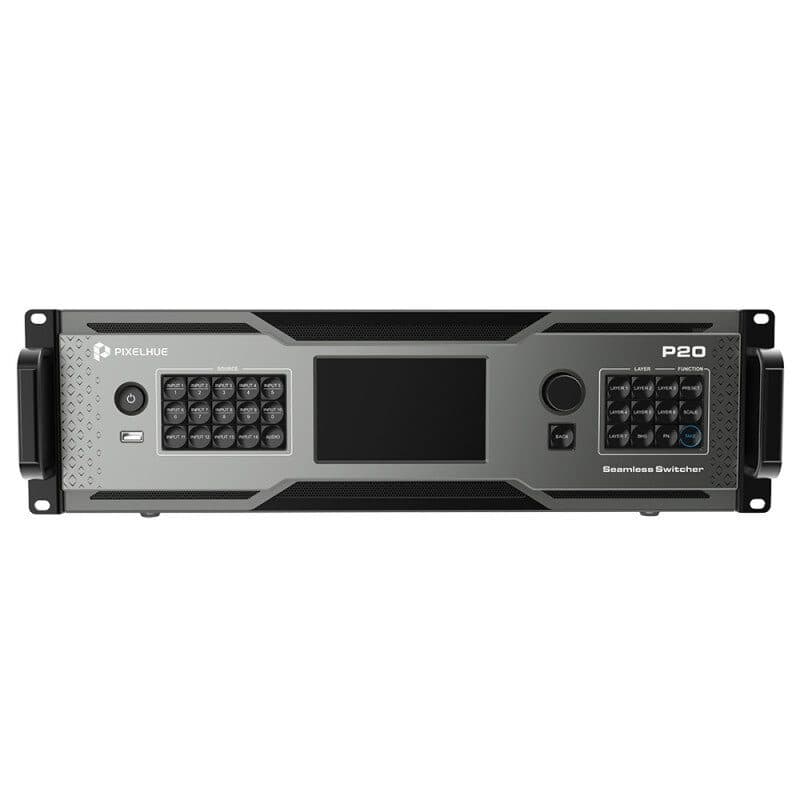

- 5" graphical LCD on the front panel allowing for a more intuitive user experience
- Exceptionally easy to control via event controller, web GUI, front panel and Stream Deck
- Flight case included
Inputs
For an input that contains a DP 1.2 and HDMI 2.0, only one connector can be selected as input at the same time.
- DP 1.2
- Max. resolution: 4096 x 2160 @ 60 Hz / 8192 x 1080 @ 60 Hz
- Min. resolution: 800 x 600 @ 60 Hz
- Max. width: 8192 pixels (8192 x 1080 @ 60 Hz)
- Max. height: 8186 pixels (1080 x 8186 @ 60 Hz)
- Max. frame rate: 120 Hz
- EDID management (support for standard resolutions up to 8192 x 1080 @ 60 Hz and custom resolutions)
- HDCP 1.3 compliant
- No support for interlaced video signal
- HDMI 2.0
- Max. resolution: 4096 x 2160 @ 60 Hz / 8192 x 1080 @ 60 Hz
- Min. resolution: 800 x 600 @ 60 Hz
- Max. width: 8192 pixels (8192 x 1080 @ 60 Hz)
- Max. height: 8186 pixels (1080 x 8186 @ 60 Hz)
- Max. frame rate: 120 Hz
- Support for HDR
- EDID management (support for standard resolutions up to 3840 x 2160 @ 60 Hz and custom resolutions)
- HDCP 2.2 compliant and downward compatible
- Support for interlaced video signal
- 12G-SDI
- Support for ST-2082 (12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD)
- Max. resolution: 4096 x 2160 @ 60 Hz
- Max. frame rate: 60 Hz
- Support for interlaced input signal
Outputs
- HDMI 2.0
- Max. resolution: 4096 x 2160 @ 60 Hz/8192 x 1080 @ 60 Hz
- Min. resolution: 800 x 600 @ 60 Hz
- Max. width: 8192 pixels (8192 x 1080 @ 60 Hz)
- Max. height: 8186 pixels (1080 x 8186 @ 60 Hz)
- Max. frame rate: 120 Hz
- Support for HDR
- EDID management (support for standard resolutions up to 3840 x 2160 @ 60 Hz and custom resolutions)
- HDCP 2.2 compliant and downward compatible
- Support for interlaced video signal
OPT
- 10G optical fiber ports
- The OPT ports copy the outputs of HDMI 2.0 connectors
- The transmission distance with SMF is up to 10 km
Multiviewer
- One dedicated HDMI 1.3 connector
- Connect to the Multiviewer display, allowing for live monitoring of all the inputs and outputs from one display
- The default output resolution is 1920 x 1080 @ 60 Hz and the frame rate can be changed
- A variety of Multiviewer layout templates are provided
AUX
- HDMI 1.3 connectors with support for interlaced video signal output
- Connect to auxiliary devices such as teleprompters
- Default output resolution: 1920 x 1080 @ 60 Hz
- Maximum output resolution: 2048 x 1152 @ 60 Hz
Ethernet
- 2 x Gigabit Ethernet ports used for control and monitoring
- One works as primary and the other as backup
- Two Ethernet ports share the same IP address
Genlock
- Genlock synchronization signal connectors:
- GENLOCK IN: synchronization signal input
- GENLOCK OUT: synchronization signal loop output
Transition & effects
- Seamless transition from PVW to PGM via Take, Cut or T-bar operation
- Fade and cut transition effects supported
- Customizable transition durations (0.1 to 10 s)
- Two options for transition between PVW and PGM: Copy and Swap
Layers
- 2 x MAIN DL layers and 10 x PIP DL layers or 4 x MAIN DL layers and 4 x PIP DL layers
- Layer effects: DSK, mask, crop, flip, cut & fill, border, shadow, KeyFrame and more
- Layer preset: all (or a portion) of the current layer’s properties (such as input source, position, size, effects, etc.) can be saved as a layer preset in PixelFlow for easy recall
BKG & logo
- Up to 255 BKGs & LOGOs (512 MB)
- BKG can be either a captured or imported image
- High-definition images can be captured from live inputs and outputs and used as BKG
- BKG can be repositioned and resized. LOGO can be repositioned only
Control options
- Front panel buttons and 5" graphical LCD
- Event controller U5 / U5 Pro
- Event management software PixelFlow
- Third-party control system Stream Deck (Companion integrated into the P series)
PixelFlow software functionalities
- Long-term stable running
- Upgraded and visualized UI, adaptive to U5/U5 Pro/PC screens
- One click to change skins of U5/U5 Pro buttons
- Software parameter controllable by U5/U5 Pro encoders or faders
- Distinct function areas and hover menu for ease of use
- Fully functional simulator for offline configuration and practice
Processing capability
- FPGA-based high-performance image enhancement architecture
- Ultra-low latency, as low as 1 frame in proper configuration
- BT.601, BT.709, BT.2020, DCI-P3 color space processing support
- Free conversion between SDR, HDR10 and HLG
- Advanced DSK capability: chroma key and luma key
- Compatible with HDCP 1.4 and HDCP 2.2
Max. resolutions supported
- HDMI 2.0 DP 1.2 (18 Gbps)
- 8 bit: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 - 4096 x 2160 @ 60 Hz - 8192 x 1080 @ 60 Hz
- 10 bit: RGB 4:4:4 / YCbCr 4:4:4 - 4096 x 2160 @ 30 Hz - 4096 x 2160 @ 30 Hz - 4096 x 1080 @ 60 Hz / YCbCr 4:2:2 - 4096 x 2160 @ 60 Hz
- 12 bit: RGB 4:4:4 4096 x 2160 @ 30 Hz - 4096 x 1080 @ 60 Hz / YCbCr 4:4:4 4096 x 2160 @ 30 Hz - 4096 x 1080 @ 60 Hz / YCbCr 4:2:2 4096 x 2160 @ 60 Hz
- 12G-SDI (11.88 Gbps)
- 10 bit: YCbCr 4:2:2 4096 x 2160 @ 60 Hz
Dimensions & weight
- 46.26 x 13.25 x 50.1 cm
- 57 x 21 x 66 cm (with flight case)
- 26 kg (with flight case)
