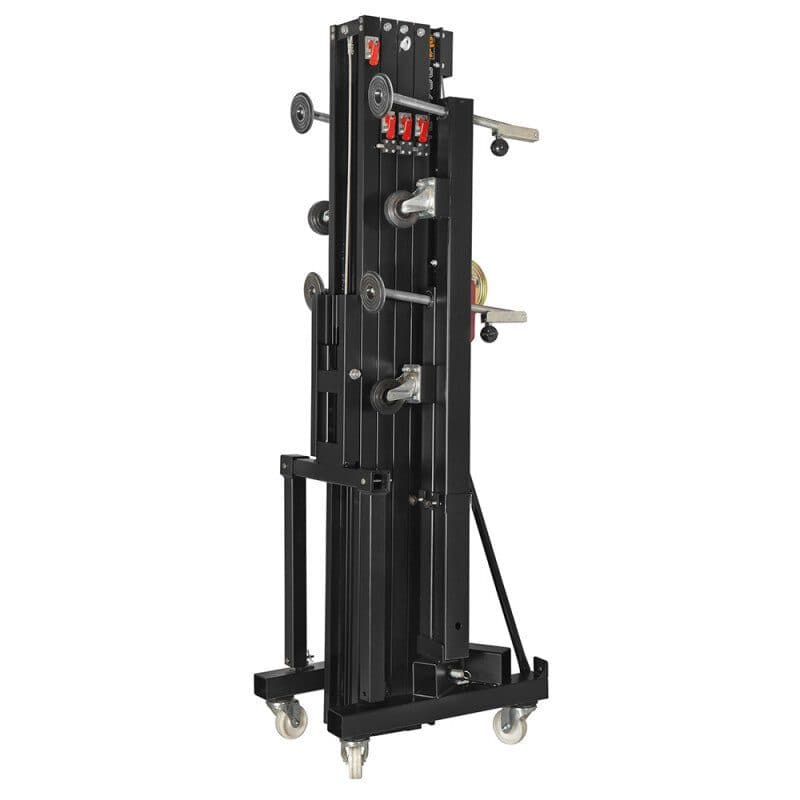

Black ALS Red ILS SRS lifting tower - VMB TL-075B

Lifter made with structural steel for the base and 5 sections of 6082-T6 aluminum alloy; designed to lift heavy loads from the ground and keep them at high altitude. This lifting tower is very easy to handle, it has 4 swivel wheels at the base and 2 more on the front legs. It has powerful stabilizers in the legs, to level the lift on difficult terrain, with a slight slope. It has two adjustable steel load forks that support the load, whether it is resting on top or hanging below. Black finish, with epoxy powder paint that offers great resistance. VMB also offers a wide range of accessories, which combined with this lift allow you to increase the number of applications. One of the most used accessories, for example, is the RH-4 transport kit, which is used to tilt the lift horizontally and facilitate transport in vans, trucks, etc. TL-075 features VMB’s ALS Red locks, which automatically lock each section during lifting and the ILS inertial pendulum safety system for the aluminum hoist trolley. It also has the special SRS Retentor system, patented by VMB, which ensures that the aluminum sections of the hoist tower lift in order and most importantly automatically.

Technical characteristics

• Safety ALS auto-lock
• Work surface: 2.2 x 2.2 m
• Folded height: 1.98 m
• Winch: 900 kg
• Adaptor forks 74.5 included
• Color: black
• Max. height: 6.5 m
• Max. load: 300 kg
• Weight: 179 kg
