Wall-mounted touch DMX interface 512 channels stand-alone - BRITEQ BEG-B05034

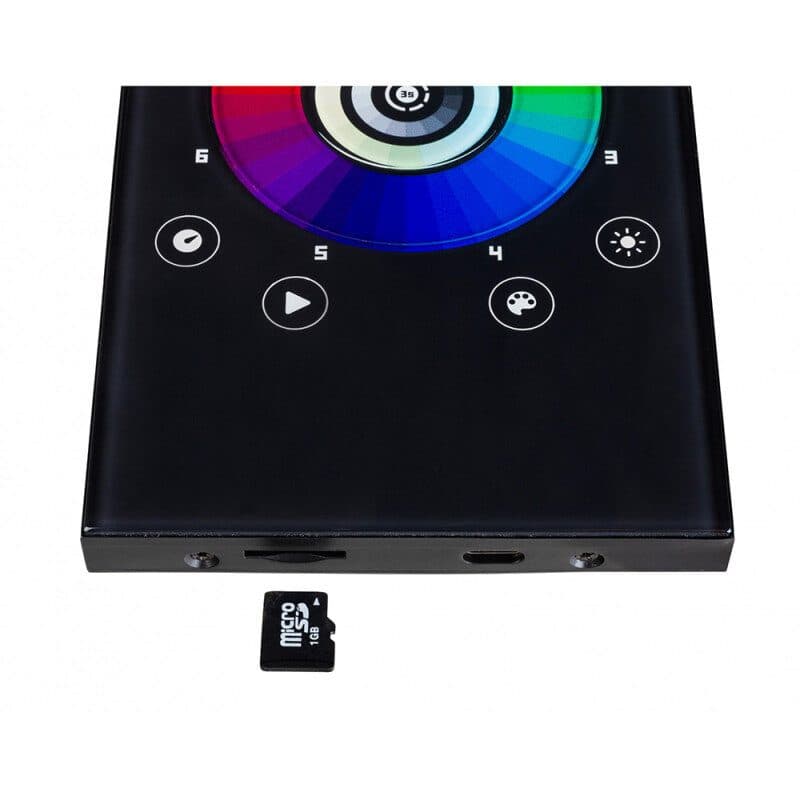

Wall-mounted DMX interface with touch-sensitive glass panel. It can be installed in standard European, American and Asian wall mounting boxes. It supports 512 DMX channels in stand-alone mode (4 MB internal memory + SD card expansion slot) and offers direct access to 5 pages of 8 programs, for a total of 40 programs. In addition, the interface features program speed control, brightness control, manual color override for LED projectors (RGB / RGBWA-UV / Cold W & Warm W / CCT), built-in clock and calendar for automatic activation of programs (time, day, week, month, year) and intelligent contacts for external activation of programs. The interface can be connected in a Master/Slave configuration to a maximum of 32 units and works with Chromateq Led Player, Pro DMX and Pixxem software (included).

Technical characteristics

Color	black
Display	touchscreen
IP rating	indoor
Protocol	DMX
Programmable	yes
Upgradable software	yes
Max. DMX channels	512

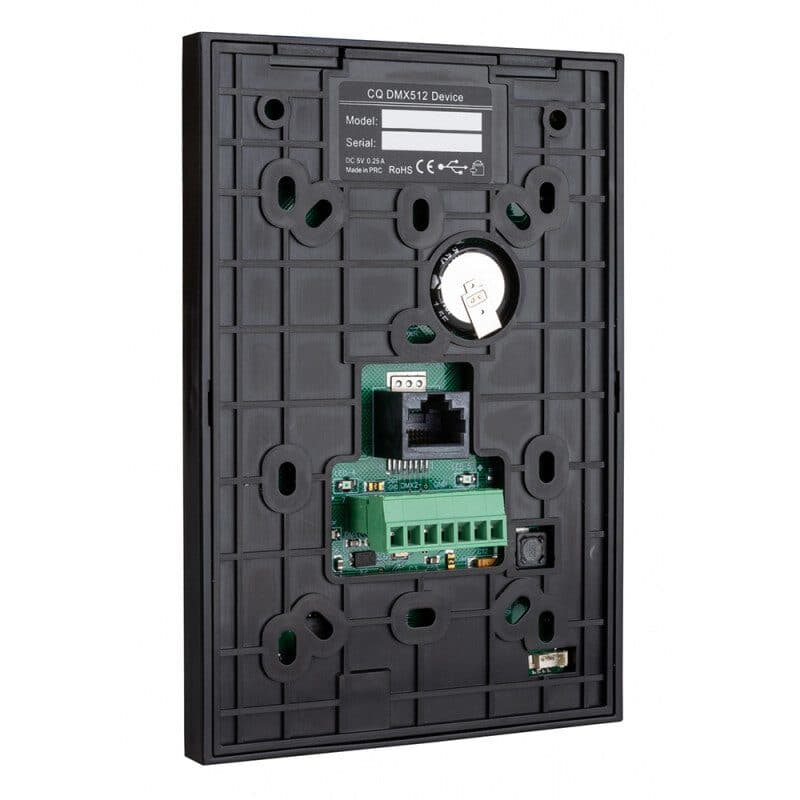

Input connections	screw terminal block (DMX), USB, RJ45
Output connections	screw terminal block (DMX)
Dimensions	9.7 x 14.4 x 1 cm
Weight	0.23 kg
